SCR-350

SCR-300

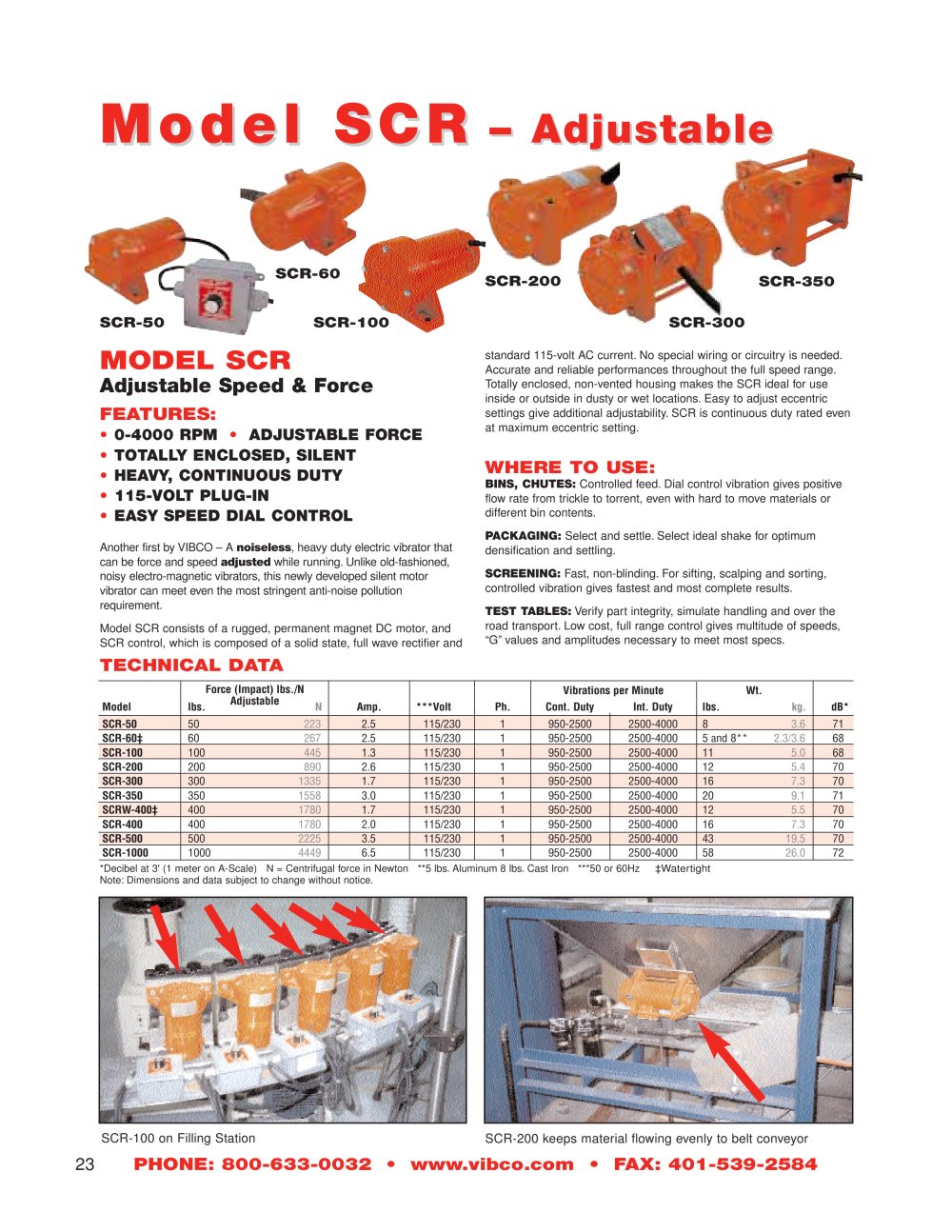

MODEL SCR

Adjustable Speed & Force

FEATURES:

• 0-4000 RPM • ADJUSTABLE FORCE

• TOTALLY ENCLOSED, SILENT

• HEAVY, CONTINUOUS DUTY

• 115-VOLT PLUG-IN

• EASY SPEED DIAL CONTROL

Another first by VIBCO - A noiseless, heavy duty electric vibrator that can be force and speed adjusted while running. Unlike old-fashioned, noisy electro-magnetic vibrators, this newly developed silent motor vibrator can meet even the most stringent anti-noise pollution requirement.

Model SCR consists of a rugged, permanent magnet DC motor, and SCR control, which is composed of a solid state, full wave rectifier and

TECHNICAL DATA

standard 115-volt AC current. No special wiring or circuitry is needed. Accurate and reliable performances throughout the full speed range. Totally enclosed, non-vented housing makes the SCR ideal for use inside or outside in dusty or wet locations. Easy to adjust eccentric settings give additional adjustability. SCR is continuous duty rated even at maximum eccentric setting.

WHERE TO USE:

BINS, CHUTES: Controlled feed. Dial control vibration gives positive flow rate from trickle to torrent, even with hard to move materials or different bin contents.

PACKAGING: Select and settle. Select ideal shake for optimum densification and settling.

SCREENING: Fast, non-blinding. For sifting, scalping and sorting, controlled vibration gives fastest and most complete results.

TEST TABLES: Verify part integrity, simulate handling and over the road transport. Low cost, full range control gives multitude of speeds, "G" values and amplitudes necessary to meet most specs.


Model	Force (Impact) Ibs./N _\|bs_ Adjustable	Amp.	***Volt	Ph.	Vibrations Cont. Duty	per Minute Int. Duty	Wt. lbs. kg.	dB*
SCR-50	50	2.5	115/230		950-2500	2500-4000	8	71
SCR-60*	60	2.5	115/230		950-2500	2500-4000	5 and 8**	68
SCR-100	100	1.3	115/230		950-2500	2500-4000	11 5.0	68
SCR-200	200	2.6	115/230		950-2500	2500-4000	12	70
SCR-300	300	1.7	115/230		950-2500	2500-4000	16 7.3	70
SCR-350	350	3.0	115/230		950-2500	2500-4000	20 9.1	71
SCRW-400+	400	1.7	115/230		950-2500	2500-4000	12 5.5	70
SCR-400	400	2.0	115/230		950-2500	2500-4000	16 7.3	70
SCR-500	500 2225	3.5	115/230		950-2500	2500-4000	3 19.5	70
SCR-1000	1000	6.5	115/230		950-2500	2500-4000	58 26.0	72

*Decibel at 3' (1 meter on A-Scale) N = Centrifugal force in Newton Note: Dimensions and data subject to change without notice.

**5 lbs. Aluminum 8 lbs. Cast Iron ***50 or 60Hz JWatertight

SCR-100 on Filling Station

23 PHONE: 800-633-0032

SCR-200 keeps material flowing evenly to belt conveyor
