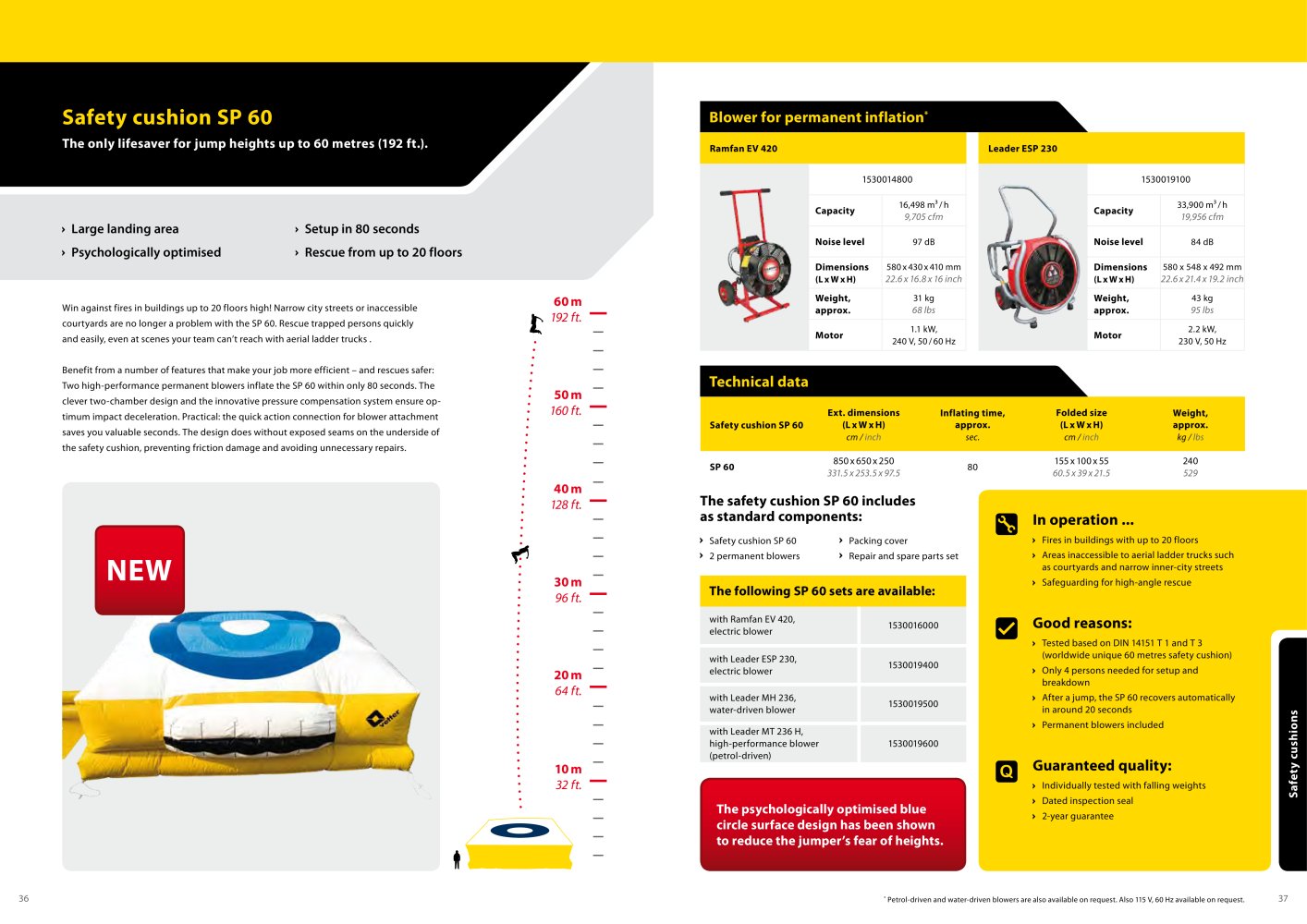

Safety cushion SP 60 The only lifesaver for jump heights up to 60 metres (192 ft.). Leader ESP 230 Blower for permanent inflation* Ramfan EV 420 > Large landing area > Psychologically optimised > Setup in 80 seconds > Rescue from up to 20 floors 1530014800 1530019100
Capacity 16,498 m3 / h 9,705 cfm
Capacity 33,900 m3 / h 19,956 cfm
Noise level 97 dB
Noise level 84 dB
Dimensions 580 x 430 x 410 mm
Dimensions 580 x 548 x 492 mm
(L x W x H) 122.6x21.4x 19.2 inch
(L x W x H) 22.6x 16.8x 16 inch Win against fires in buildings up to 20 floors high! Narrow city streets or inaccessible courtyards are no longer a problem with the SP 60. Rescue trapped persons quickly and easily, even at scenes your team can't reach with aerial ladder trucks . Benefit from a number of features that make your job more efficient - and rescues safer: Two high-performance permanent blowers inflate the SP 60 within only 80 seconds. The clever two-chamber design and the innovative pressure compensation system ensure optimum impact deceleration. Practical: the quick action connection for blower attachment saves you valuable seconds. The design does without exposed seams on the underside of the
safety cushion, preventing friction damage and avoiding unnecessary repairs.
60 m 192 ft.
Weight, approx. 31 kg 68 Ibs
Weight, approx. 43 kg 95 Ibs
Motor 1.1 kW, 240 V, 50 / 60 Hz
Motor 2.2 kW, 230 V, 50 Hz
_ Technical data L ^^^^ 160 ft. —
Ext. dimensions Inflating time, Folded size Weight, Safety cushion SP 60 (L x W x H) approx. (L x W x H) approx. cm / inch sec. cm / inch kg / lbs
SP 60 850 x 650 x 250 331.5 x 253.5 x 97.5 80 155 x 100 x 55 240 60.5 x 39 x 21.5 529
40 m 128 ft.
The safety cushion SP 60 includes as standard components: In operation • • • > Fires in buildings with up to 20 floors > Areas inaccessible to aerial ladder trucks such as courtyards and narrow inner-city streets > Safeguarding for high-angle rescue > Safety cushion SP 60 > 2 permanent blowers > Packing cover > Repair and spare parts set
30 m 96 ft.
The following SP 60 sets are available: with Ramfan EV 420, electric blower 1530016000 with Leader ESP 230, electric blower 1530019400 with Leader MH 236, water-driven blower 1530019500 with Leader MT 236 H, high-performance blower (petrol-driven) 1530019600
20 m 64 ft.
Good reasons: > Tested based on DIN 14151 T 1 and T 3 (worldwide unique 60 metres
safety cushion) > Only 4 persons needed for setup and breakdown > After a jump, the SP 60 recovers automatically in around 20 seconds > Permanent blowers included C
o !E W) 3 W 10 m 32 ft.
Guaranteed quality: > Individually tested with falling weights > Dated inspection seal > 2-year guarantee
>> 36 Petrol-driven and water-driven blowers are also available on request. Also 115 V, 60 Hz available on request. 37
