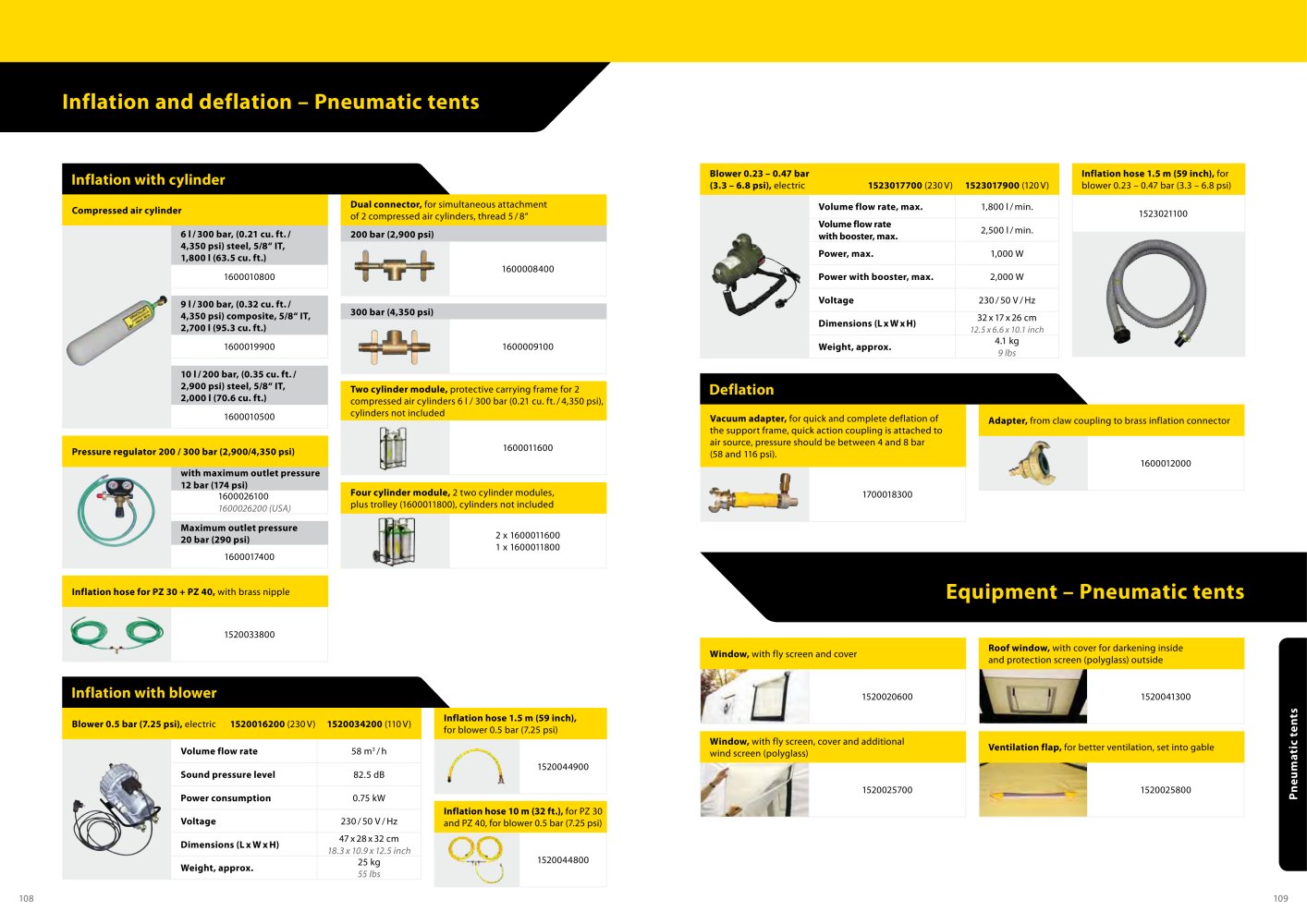

Inflation and déflation - Pneumatic tents Blower 0.23 - 0.47 bar (3.3 - 6.8 psi), electric 1523017700 (230 V) 1523017900 (120 V) Inflation hose 1.5 m (59 inch), for blower 0.23 - 0.47 bar (3.3 - 6.8 psi) Inflation with cylinder Compressed air cylinder Dual connector, for simultaneous attachment of 2 compressed air cylinders, thread 5 / 8" 200 bar (2,900 psi) Volume flow rate, max. 1,800 l / min. Volume flow rate with booster, max. 2,500 l / min. Power, max. 1,000 W Power with booster, max. 2,000 W Voltage 230/50V/HZ Dimensions (L x W x H) 32x 17x26 cm 12.5x6.6x10.1 inch Weight, approx. 4.1 kg 9 lbs 6 l / 300 bar, (0.21 cu. ft. / 4,350 psi) steel, 5/8" IT, 1,800 l (63.5 cu. ft.) 1600010800 9 l / 300 bar, (0.32 cu. ft. / 4,350 psi) composite, 5/8" IT, 2,700 l (95.3 cu. ft.) 1600019900 1600008400 300 bar (4,350 psi) 1600009100 10 l / 200 bar, (0.35 cu. ft. / 2,900 psi) steel, 5/8" IT, 2,000 l (70.6 cu. ft.) 1600010500 Two cylinder module, protective carrying frame for 2 compressed air cylinders 6 l / 300 bar (0.21 cu. ft. / 4,350 psi), cylinders not included ^^^H 1600011600 Deflation Vacuum adapter, for quick and complete deflation of the support frame, quick action coupling is attached to air source, pressure should be between 4 and 8 bar (58 and 116 psi). Adapter, from claw coupling to brass inflation connector Pressure regulator 200 / 300 bar (2,900/4,350 psi) 1600012000 with maximum outlet pressure 12 bar (174 psi) 1600026100 1600026200 (USA) Four cylinder module, 2 two cylinder modules, plus trolley (1600011800), cylinders not included 1 i 2x 1600011600 1 x 1600011800 1700018300 Maximum outlet pressure 20 bar (290 psi) 1600017400 Inflation hose for PZ 30 + PZ 40, with brass nipple Equipment - Pneumatic tents 1520033800 Window, with fly screen and cover Roof window, with cover for darkening inside and protection screen (polyglass) outside i i 1520041300 1520020600 Inflation with blower Blower 0.5 bar (7.25 psi), electric 1520016200 (230 V) 1520034200 (110 V) Volume flow rate 58 m3 / h Inflation hose 1.5 m (59 inch), for blower 0.5 bar (7.25 psi) W) 4-1 c <v 4-1 Window, with fly screen, cover and additional wind screen (polyglass) 1520025700 Ventilation flap, for better ventilation, set into gable 1520025800 1520044900 U '■13 (0 E 3 <v c a. Sound pressure level 82.5 dB Power consumption Voltage 0.75 kW Inflation hose 10 m (32 ft.), for PZ 30 and PZ 40, for blower 0.5 bar (7.25 psi) 230 / 50 V / Hz Dimensions (L x W x H) 47 x 28 x 32 cm 18.3 x 10.9 x 12.5 inch 1520044800 Weight, approx. 25 kg 55 lbs 108 109
