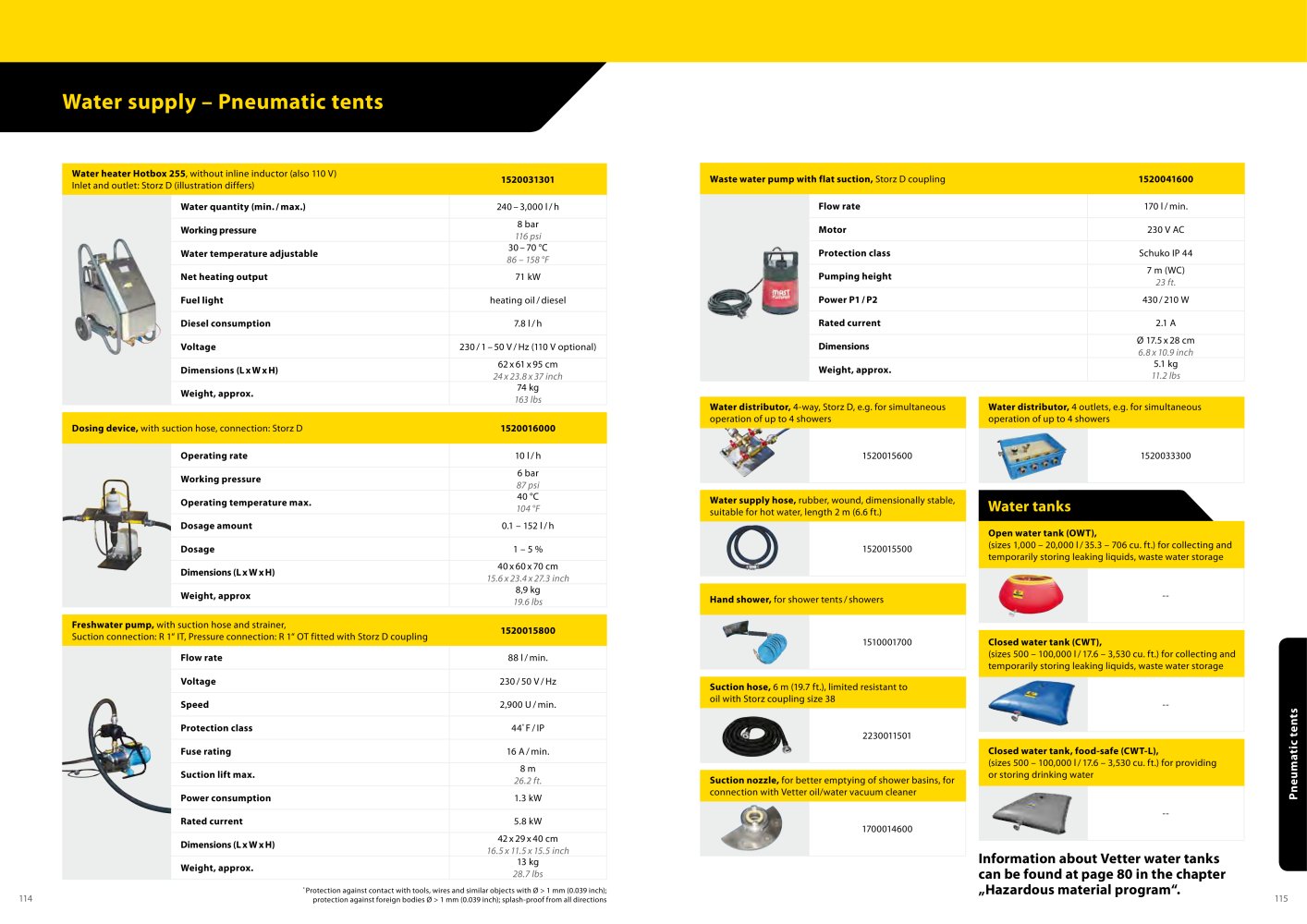

Water supply - Pneumatic tents Water heater Hotbox 255, without inline inductor (also 110 V) Inlet and outlet: Storz D (illustration differs)
Water quantity (min. / max.) 1520031301 240 - 3,000 l / h
Waste water pump with flat suction, Storz D coupling
Flow rate 1520041600 170 l / min.
Working pressure 8 bar 116 psi
Motor 230 V AC
Water temperature adjustable 30 - 70 °C 86 - 158 °F
Protection class Schuko IP 44
Net heating output 71 kW
Pumping height 7 m (WC) 23 ft.
Fuel light heating oil / diesel
Power P1 / P2 430 / 210 W
Diesel consumption 7.8 l / h
Rated current 2.1 A
Voltage 230 / 1 - 50 V / Hz (110 V optional)
Dimensions 0 17.5 x 28 cm 6.8 x 10.9 inch
Dimensions (L x W x H) 62 x 61 x 95 cm 24x23.8x37 inch
Weight, approx. 5.1 kg 11.2 lbs
Weight, approx. 74 kg 163 Ibs
Water distributor, 4 outlets, e.g. for simultaneous operation of up to 4 showers
Dosing device, with suction hose, connection: Storz D
Operating rate 1520016000 10 l / h 1520033300
Working pressure 6 bar 87 psi
Operating température max. 40 °C 104 °F
Water supply hose, rubber, wound, dimensionally stable, suitable for hot water, length 2 m (6.6 ft.)
Water tanks Dosage amount 0.1 - 152 l / h
0 1520015500
Open water tank (OWT), (sizes 1,000 - 20,000 l / 35.3 - 706 cu. ft.) for collecting and temporarily storing leaking liquids, waste water storage
Dosage 1 - 5 %
Dimensions (LxWxH) 40x60x70 cm 15.6x23.4x27.3 inch
Weight, approx 8,9 kg 19.6 lbs
Hand shower, for shower tents / showers
Freshwater pump, with suction hose and strainer, Suction connection: R 1" IT, Pressure connection: R 1" OT fitted with Storz D coupling
1520015800 88 l / min. 1510001700
Closed water tank (CWT), (sizes 500 - 100,000 l / 17.6 - 3,530 cu. ft.) for collecting and temporarily storing leaking liquids, waste water storage
Flow rate Voltage 230/50V/Hz
Speed 2,900 U / min.
Protection class 44* F / IP
Fuse rating 16 A / min.
Suction hose, 6 m (19.7 ft.), limited resistant to oil with Storz coupling size 38 2230011501 W) 4-1 C <v 4-1
Closed water tank, food-safe (CWT-L), (sizes 500 - 100,000 l / 17.6 - 3,530 cu. ft.) for providing or storing drinking water U °43 (0
E 3 <V C
a. Suction lift max. 8 m 26.2 ft.
Suction nozzle, for better emptying of shower basins, for connection with Vetter oil/water
vacuum cleaner Power consumption 1.3 kW
Rated current 5.8 kW 1700014600 42x29x40 cm 16.5 x 11.5 x 15.5 inch
Dimensions (L x W x H) Information about Vetter water tanks can be found at page 80 in the chapter „Hazardous material program". Weight, approx. 13 kg 28.7 lbs * Protection against contact with tools, wires and similar objects with 0 > 1 mm (0.039 inch); protection against foreign bodies 0 > 1 mm (0.039 inch); splash-proof from all directions
