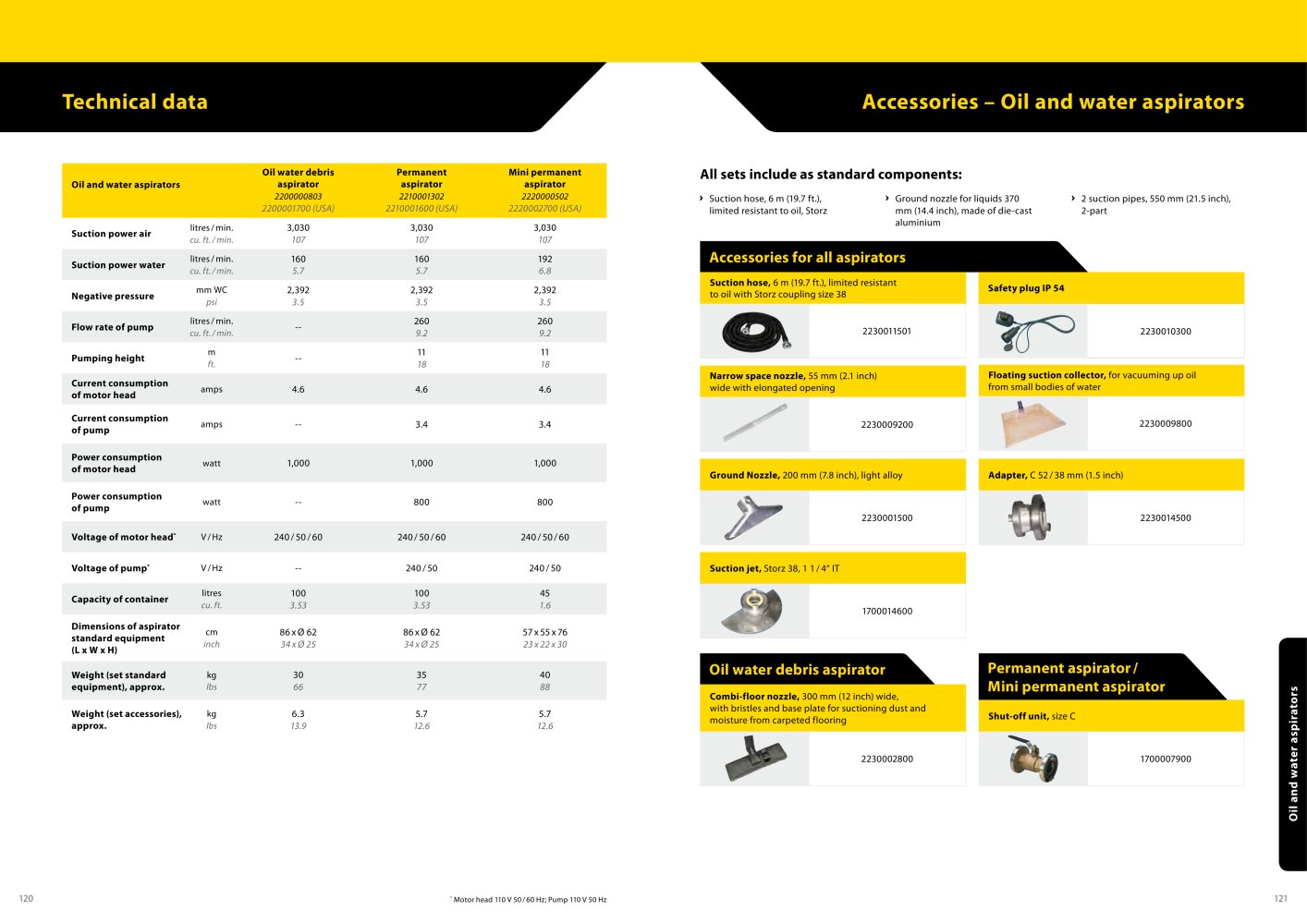

Technical data Accessories - Oil and water aspirators A Oil water debris Permanent Mini permanent Oil and water aspirators aspirator aspirator aspirator 2200000803 2210001302 2220000502 2200001700(USA) 2210001600 (USA) 2220002700 (USA) Suction power air litres / min. cu. ft. /min. 3,030 107 3,030 107 3,030 107 Suction power water litres / min. cu. ft. / min. 160 5.7 160 5.7 192 6.8 Negative pressure mm WC psi 2,392 3.5 2,392 3.5 2,392 3.5 Flow rate of pump litres / min. cu. ft. / min. 260 9.2 260 9.2 Pumping height m ft. 11 18 11 18 Current consumption amps 4.6 4.6 4.6 of motor head Current consumption amps 3.4 3.4 of pump Power consumption watt 1,000 1,000 1,000 of motor head Power consumption watt 800 800 of pump Voltage of motor head* V / Hz 240 / 50 / 60 240 / 50 / 60 240 / 50 / 60 Voltage of pump* V / Hz -- 240 / 50 240 / 50 Capacity of container litres cu. ft. 100 3.53 100 3.53 45 1.6 Dimensions of aspirator cm 86 x 0 62 34 x 0 25 86 x 0 62 34 x 0 25 57 x 55 x 76 23 x 22 x 30 standard equipment (L x W x H) Weight (set standard kg 30 35 40 equipment), approx. Ibs 66 77 88 Weight (set accessories), kg 6.3 5.7 5.7 approx. Ibs 13.9 All sets include as standard components: > 2 suction pipes, 550 mm (21.5 inch), 2-part > Suction hose, 6 m (19.7 ft.), limited résistant to oil, Storz > Ground nozzle for liquids 370 mm (14.4 inch), made of die-cast aluminium Accessories for all aspirators ^^^^^ Suction hose, 6 m (19.7 ft.), limited resistant Safety plug IP 54 to oil with Storz coupling size 38 iWfcT JEĘL 2230011501 - 2230010300 Narrow space nozzle, 55 mm (2.1 inch) wide with elongated opening Floating suction collector, for vacuuming up oil from small bodies of water 2230009200 2230009800 Ground Nozzle, 200 mm (7.8 inch), light alloy Adapter, C 52 / 38 mm (1.5 inch) Suction jet, Storz 38, 1 1 / 4" IT 2230001500 $1 2230014500 1700014600 Oil water debris aspirator Permanent aspirator / Mini permanent aspirator Combi-floor nozzle, 300 mm (12 inch) wide, with bristles and base plate for suctioning dust and moisture from carpeted flooring Shut-off unit, size C O '5. (0 2230002800 1700007900 c (0 5 Motor head 110 V 50 / 60 Hz; Pump 110 V 50 Hz 121
