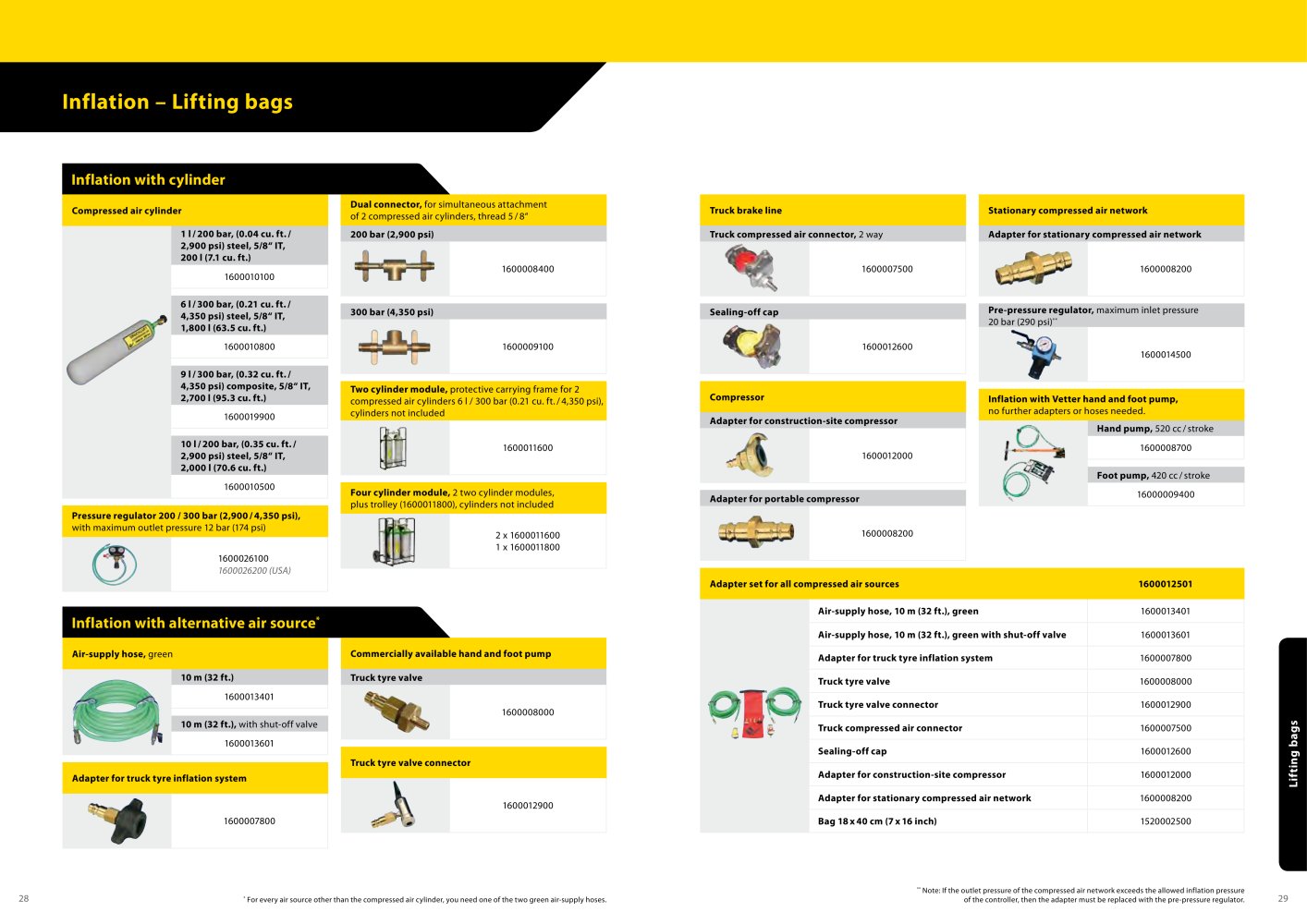

Inflation - Lifting bags Inflation with cylinder Compressed air cylinder Dual connector, for simultaneous attachment of 2 compressed air cylinders, thread 5 / 8" 200 bar (2,900 psi) Truck brake line Truck compressed air connector, 2 way Stationary compressed air network 1 l / 200 bar, (0.04 cu. ft. / 2,900 psi) steel, 5/8" IT, 200 l (7.1 cu. ft.) Adapter for stationary compressed air network 1600008200 1600010100 6 l / 300 bar, (0.21 cu. ft. / 4,350 psi) steel, 5/8" IT, 1,800 l (63.5 cu. ft.) 1600008400 1600007500 300 bar (4,350 psi) Sealing-off cap <4 Pre-pressure regulator, maximum inlet pressure 20 bar (290 psi)™ 1600009100 1600012600 1600014500 1600010800 9 l / 300 bar, (0.32 cu. ft. / 4,350 psi) composite, 5/8" IT, 2,700 l (95.3 cu. ft.) 1600019900 Two cylinder module, protective carrying frame for 2 compressed air cylinders 6 l / 300 bar (0.21 cu. ft. / 4,350 psi), cylinders not included * ^^^H 1600011600 Compressor Adapter for construction-site compressor Inflation with Vetter hand and foot pump, no further adapters or hoses needed. Hand pump, 520 cc / stroke 1600008700 10 l / 200 bar, (0.35 cu. ft. / 2,900 psi) steel, 5/8" IT, 2,000 l (70.6 cu. ft.) 1600010500 Foot pump, 420 cc / stroke 16000009400 Four cylinder module, 2 two cylinder modules, plus trolley (1600011800), cylinders not included 1 2x 1600011600 1 x 1600011800 Adapter for portable compressor A 1600008200 Pressure regulator 200 / 300 bar (2,900 /4,350 psi), with maximum outlet pressure 12 bar (174 psi) 1600026100 1600026200 (USA) Adapter set for ail compressed air sources 1600012501 Commercially available hand and foot pump Truck tyre valve Air-supply hose, 10 m (32 ft.), green 1600013401 Air-supply hose, 10 m (32 ft.), green with shut-off valve 1600013601 Adapter for truck tyre inflation system 1600007800 Truck tyre valve 1600008000 Truck tyre valve connector 1600012900 Truck compressed air connector 1600007500 Sealing-off cap 1600012600 Adapter for construction-site compressor 1600012000 Adapter for stationary compressed air network 1600008200 Bag 18 x 40 cm (7 x 16 inch) 1520002500 Inflation with alternative air source* Air-supply hose, green 10 m (32 ft.) 10 m (32 ft.), with shut-off valve 1600013601 Adapter for truck tyre inflation system 1600008000 Truck tyre valve connector 1600012900 '■5 1600007800 For every air source other than the compressed air cylinder, you need one of the two green air-supply hoses. Note: If the outlet pressure of the compressed air network exceeds the allowed inflation pressure of the controller, then the adapter must be replaced with the pre-pressure regulator.
