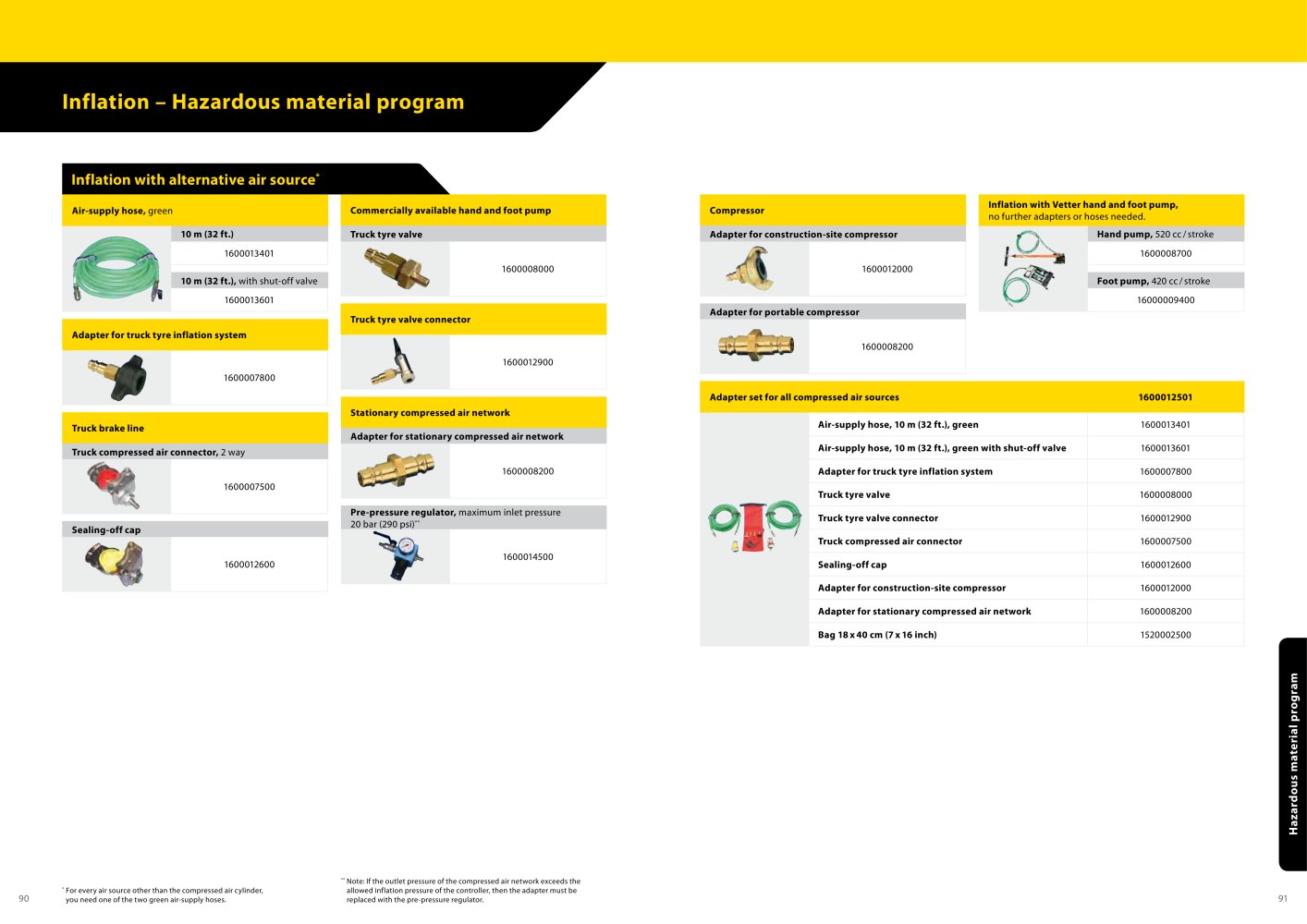

Inflation - Hazardous material program Inflation with alternative air source* Air-supply hose, green Commercially available hand and foot pump Truck tyre valve Compressor Adapter for construction-site compressor Inflation with Vetter hand and foot pump, no further adapters or hoses needed. Hand pump, 520 cc/stroke 1600008700 10 m (32 ft.), with shut-off valve 1600013601 1600008000 4 1600012000 Foot pump, 420 cc / stroke 16000009400 Truck tyre valve connector Adapter for portable compressor 1600008200 Adapter for truck tyre inflation system 1600012900 x0 1600007800 Adapter set for ail compressed air sources Stationary compressed air network Adapter for stationary compressed air network 1600008200 1600012501 Truck brake line Truck compressed air connector, 2 way Air-supply hose, 10 m (32 ft.), green 1600013401 Air-supply hose, 10 m (32 ft.), green with shut-off valve 1600013601 Adapter for truck tyre inflation system 1600007800 Truck tyre valve 1600008000 Truck tyre valve connector 1600012900 Truck compressed air connector 1600007500 Sealing-off cap 1600012600 Adapter for construction-site compressor 1600012000 Adapter for stationary compressed air network 1600008200 Bag 18 x 40 cm (7 x 16 inch) 1520002500 1600007500 Sealing-off cap M y ■ 1600012600 Pre-pressure regulator, maximum inlet pressure 20 bar (290 psi)™ 1600014500 E o Q. .5 <v (0 E V) 3 O "O &- (0 n (0 X For every air source other than the compressed air cylinder, you need one of the two green air-supply hoses. Note: If the outlet pressure of the compressed air network exceeds the allowed inflation pressure of the controller, then the adapter must be replaced with the pre-pressure regulator. 91
