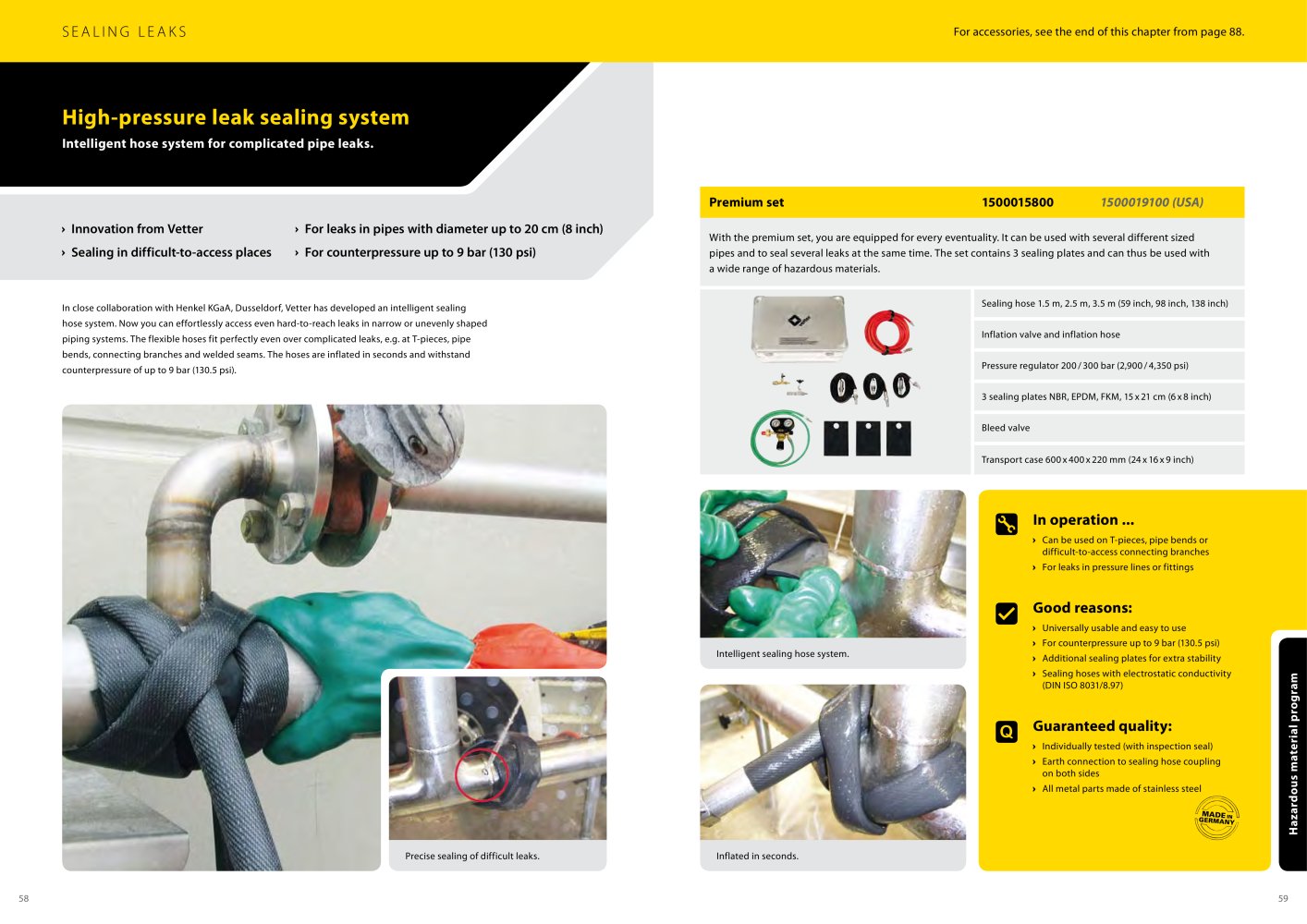

SEALI NG LEAKS For accessories, see the end of this chapter from page 88. High-pressure leak sealing system Intelligent hose system for complicated pipe leaks. > Innovation from Vetter > For leaks in pipes with diameter up to 20 cm (8 inch) > Sealing in difficult-to-access places > For counterpressure up to 9 bar (130 psi) Premium set 1500015800 1500019100 (USA) With the premium set, you are equipped for every eventuality. It can be used with several different sized pipes and to seal several leaks at the same time. The set contains 3 sealing plates and can thus be used with a wide range of hazardous materials. 1-4 Q (fjlll Sealing hose 1.5 m, 2.5 m, 3.5 m (59 inch, 98 inch, 138 inch) Inflation valve and inflation hose Pressure regulator 200 / 300 bar (2,900 / 4,350 psi) 3 sealing plates NBR, EPDM, FKM, 15 x 21 cm (6 x 8 inch) Bleed valve Transport case 600 x 400 x 220 mm (24 x 16 x 9 inch) In close collaboration with Henkel KGaA, Dusseldorf, Vetter has developed an intelligent sealing hose system. Now you can effortlessly access even hard-to-reach leaks in narrow or unevenly shaped piping systems. The flexible hoses fit perfectly even over complicated leaks, e.g. at T-pieces, pipe bends, connecting branches and welded seams. The hoses are inflated in seconds and withstand counterpressure of up to 9 bar (130.5 psi). Précise sealing of difficult leaks. In operation • • • > Can be used on T-pieces, pipe bends or difficult-to-access connecting branches > For leaks in pressure lines or fittings Good reasons: > Universally usable and easy to use > For counterpressure up to 9 bar (130.5 psi) > Additional sealing plates for extra stability > Sealing hoses with electrostatic conductivity (DIN ISO 8031/8.97) Intelligent sealing hose system. E o q. Guaranteed quality: > Individually tested (with inspection seal) > Earth connection to sealing hose coupling on both sides > All metal parts made of stainless steel .5 *z <v (0 E w) 3 O "O &- (0 N (0 x Inflated in seconds. 58 59
