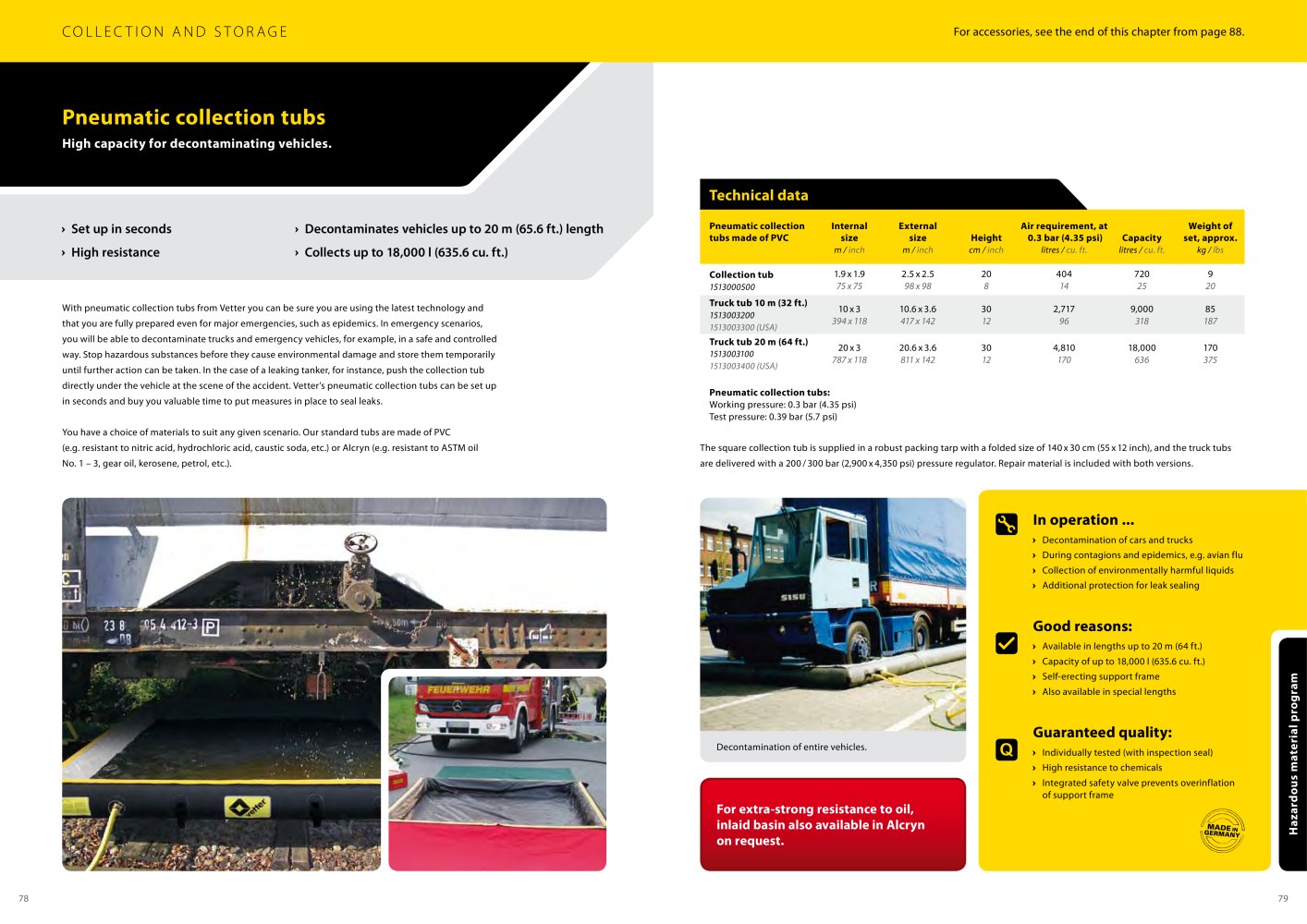

COLLECTION AND STORAGE For accessories, see the end of this chapter from page 88. Pneumatic collection tubs High capacity for decontaminating vehicles. Technical data > Set up in seconds > High résistance > Decontaminates vehicles up to 20 m (65.6 ft.) length > Collects up to 18,000 l (635.6 cu. ft.) Pneumatic collection Internal External Air requirement, at Weight of tubs made of PVC size size Height 0.3 bar (4.35 psi) Capacity set, approx. m / inch m / inch cm / inch litres / cu. ft. litres / cu. ft. kg / lbs Collection tub 1.9 x 1.9 2.5 x 2.5 20 404 720 9 1513000500 75 x 75 98 x 98 8 14 25 20 Truck tub 10 m (32 ft.) 1513003200 1513003300 (USA) 10 x 3 394 x118 10.6 x 3.6 417 x 142 30 12 2,717 96 9,000 318 85 187 Truck tub 20 m (64 ft.) 1513003100 1513003400 (USA) 20 x 3 787x118 20.6 x 3.6 811x142 30 4,810 170 18,000 636 170 375 With pneumatic collection tubs from Vetter you can be sure you are using the latest technology and that you are fully prepared even for major emergencies, such as epidemics. In emergency scenarios, you will be able to decontaminate trucks and emergency vehicles, for example, in a safe and controlled way. Stop hazardous substances before they cause environmental damage and store them temporarily until further action can be taken. In the case of a leaking tanker, for instance, push the collection tub directly under the vehicle at the scene of the accident. Vetter's pneumatic collection tubs can be set up in seconds and buy you valuable time to put measures in place to seal leaks. You have a choice of materials to suit any given scenario. Our standard tubs are made of PVC (e.g. resistant to nitric acid, hydrochloric acid, caustic soda, etc.) or Alcryn (e.g. resistant to ASTM oil No. 1 - 3, gear oil, kerosene, petrol, etc.). Pneumatic collection tubs: Working pressure: 0.3 bar (4.35 psi) Test pressure: 0.39 bar (5.7 psi) The square collection tub is supplied in a robust packing tarp with a folded size of 140 x 30 cm (55 x 12 inch), and the truck tubs are delivered with a 200 / 300 bar (2,900 x 4,350 psi) pressure regulator. Repair material is included with both versions. In operation • • • > Decontamination of cars and trucks > During contagions and epidemics, e.g. avian flu > Collection of environmentally harmful liquids > Additional protection for leak sealing Good reasons: > Available in lengths up to 20 m (64 ft.) > Capacity of up to 18,000 l (635.6 cu. ft.) > Self-erecting support frame > Also available in special lengths Guaranteed quality: > Individually tested (with inspection seal) > High resistance to chemicals > Integrated safety valve prevents overinflation E o Q. .5 <v (0 E Decontamination of entire vehicles. V) 3 O "O &- (0 N (0 of support frame For extra-strong resistance to oil, inlaid basin also available in Alcryn on request. X 79
