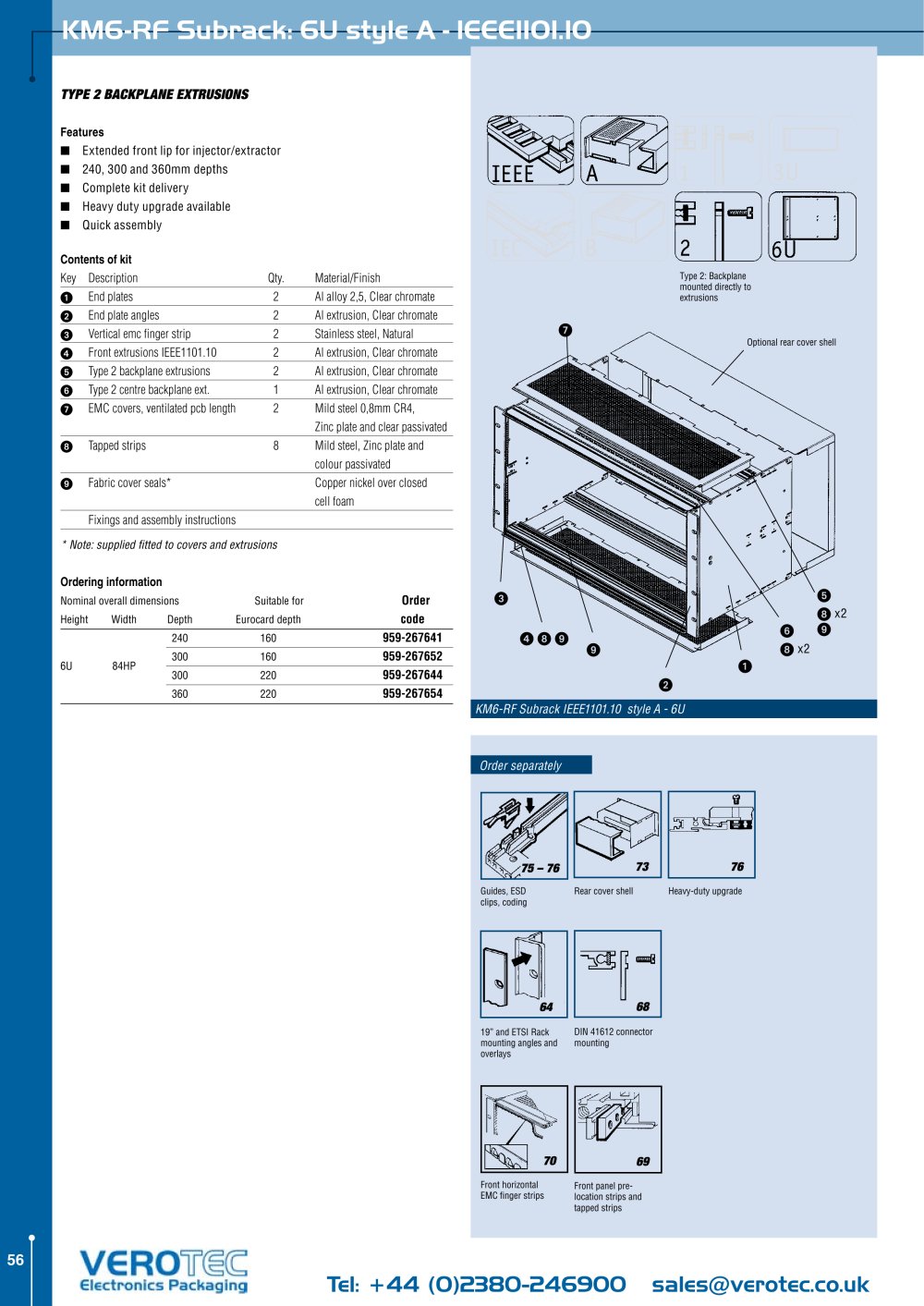

type 2 backplane extrusions
Features
■ Extended front lip for injector/extractor
■ 240, 300 and 360mm depths
■ Complete kit delivery
■ Heavy duty upgrade available
■ Quick assembly
Contents of kit
Key
Description
Qty.
Material/Finish
O
End plates
2
Al alloy 2,5, Clear chromate
o
End plate angles
2
Al extrusion, Clear chromate
o
Vertical emc finger strip
2
Stainless steel, Natural
Front extrusions IEEE1101.10
2
Al extrusion, Clear chromate
o
Type 2 backplane extrusions
2
Al extrusion, Clear chromate
0
Type 2 centre backplane ext.
1
Al extrusion, Clear chromate
EMC covers, ventilated pcb length
2
Mild steel 0,8mm CR4, Zinc plate and clear passivated
cT
Tapped strips
8
Mild steel, Zinc plate and colour passivated
Fabric cover seals*
Copper nickel over closed cell foam
Fixings and assembly instructions
Type 2: Backplane mounted directly to extrusions
Optional rear cover shell
* Note: supplied fitted to covers and extrusions
Ordering information
Nominal overall dimensions
Suitable for
Order
0
0x2
0 0
0x2
Height
Width
Depth
Eurocard depth
code
240
160
959-267641
6U
84HP
300
160
959-267652
300
220
959-267644
360
220
959-267654
0
o
Kivib-Hh suorack Itttnui.w style a - bu
Order separately
Guides, ESD clips, coding
Rear cover shell
Heavy-duty upgrade
64
19" and ETSI Rack DIN 41612 connector mounting angles and mounting overlays
70
69
Front horizontal Front panel pre-
EMC finger strips location strips and tapped strips
Tel: +44 (0)2380-246900 sales@verotecco.uk
