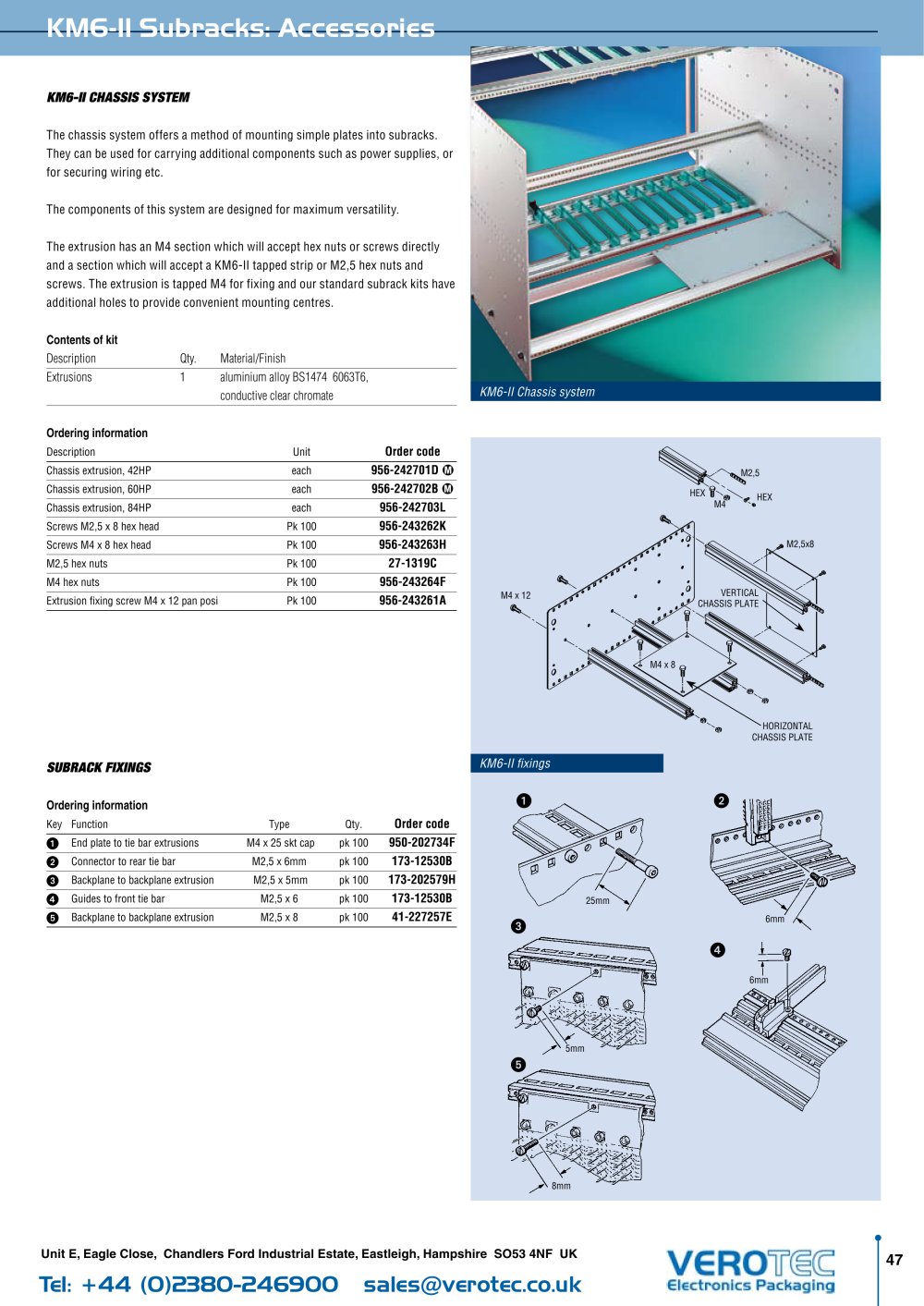

Untitled table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.90pt "Arial", sans-serif; } .font1 { font:5.00pt "Arial", sans-serif; } .font2 { font:5.25pt "Arial", sans-serif; } .font3 { font:7.00pt "Arial", sans-serif; } .font4 { font:8.00pt "Arial", sans-serif; } .font5 { font:9.00pt "Arial", sans-serif; } .font6 { font:10.00pt "Arial", sans-serif; } .font7 { font:14.00pt "Arial", sans-serif; } .font8 { font:16.00pt "Arial", sans-serif; } .font9 { font:22.00pt "Arial", sans-serif; } I Subracks: Accessories KM6-II CHASSIS SYSTEM The châssis system offers a method of mounting simple plates into subracks. They can be used for carrying additional components such as power supplies, or for securing wiring etc. The components of this system are designed for maximum versatility. The extrusion has an M4 section which will accept hex nuts or screws directly and a section which will accept a KM6-II tapped strip or M2,5 hex nuts and screws. The extrusion is tapped M4 for fixing and our standard subrack kits have additional holes to provide convenient mounting centres. Contents of kit Description Qty. Material/Finish Extrusions 1 aluminium alloy BS1474 6063T6, conductive clear chromate Ordering information Description Unit Order code Chassis extrusion, 42HP each 956-242701D © Chassis extrusion, 60HP each 956-242702B © Chassis extrusion, 84HP each 956-242703L Screws M2,5 x 8 hex head Pk 100 956-243262K Screws M4 x 8 hex head Pk 100 956-243263H M2,5 hex nuts Pk 100 27-1319C M4 hex nuts Pk 100 956-243264F Extrusion fixing screw M4 x 12 pan posi Pk 100 956-243261A M4 CHASSIS PLATE SUBRACK FIXINGS Ordering information KM6-II fixings Key Function Type Qty. Order code End plate to tie bar extrusions M4 x 25 skt cap pk 100 950-202734F © Connector to rear tie bar M2,5 x 6mm pk 100 173-12530B o Backplane to backplane extrusion M2,5 x 5mm pk 100 173-202579H Guides to front tie bar M2,5 x 6 pk 100 173-12530B o Backplane to backplane extrusion M2,5 x 8 pk 100 41-227257E Unit E, Eagle Close, Chandlers Ford Industrial Estate, Eastleigh, Hampshire SO53 4NF UK Tel: +44 (0)2380-246900 salES@VErotEC.co.uk VGROTfiC Electronics Packaging 47
