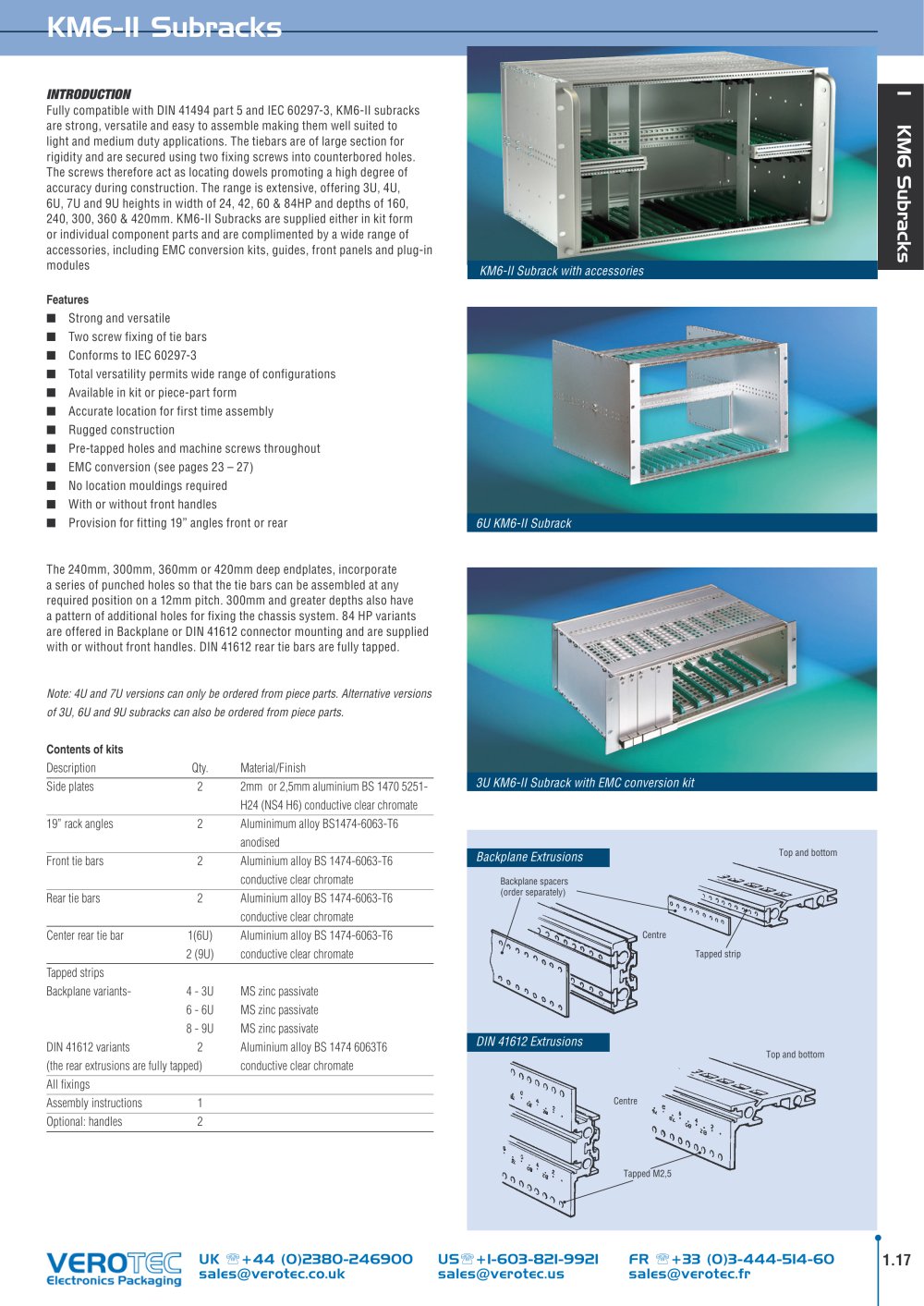

Untitled table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:5.00pt "Arial", sans-serif; } .font1 { font:5.60pt "Arial", sans-serif; } .font2 { font:7.00pt "Arial", sans-serif; } .font3 { font:9.00pt "Arial", sans-serif; } .font4 { font:22.00pt "Arial", sans-serif; } .font5 { font:14.00pt "Trebuchet MS", sans-serif; } .font6 { font:55.00pt "Trebuchet MS", sans-serif; } Il KM6-II 'Standard' Subracks are strong and versatile, whilst offering ease of assembly. The tie bars are of a larger section to improve both rigidity and guide location, and versions suitable for 220mm boards will accept 160mm boards. The end plates are symmetrical in design, allowing 19" end plate angles to be fitted on either the front or rear of the frame, thus providing easy rear access. Features ■ Versions for backplane and DIN 41612 connector ■ Strong and versatile ■ Conforms to IEC 60297-3 ■ Totally conductive components ■ 160mm mounting in 220mm versions ■ Provision for fitting 19" angles front or rear ■ 3U and 6U heights ■ 160 and 220mm board compatible ■ 84 and 42 HP widths available ■ Simple assembly - single screw fixing of tie-bars ■ No adjustment required after assembly ■ Pre-tapped holes and machine screws throughout ■ Supplied as a complete kit ■ Reduced height end plates to accept chassis supports ■ Available with or without front handles 'Standard' subracks can be supplied with backplane or DIN 41612 connector mounting rear extrusion. 84HP kits are available with, or without, front handles. Backplane extrusions can be converted to DIN 41612 by means of a separate connector frame. The kit includes rear tie bars and is complete with all tapped strips. In order to maintain the front panel/connector geometry a suitable backplane spacer, either insulating or conductive, must be used on backplane versions. Contents of kit 3U and 6U Standard subracks Description Qty. Material/Finish End plates 2 2mm aluminium BS 1470 5251-H24 (NS4 H6), conductive clear chromate End plate angles 2 Aluminium Ally BS1474-6063-T6 anodised Front tie bars 2 Aluminium alloy BS 1474 6063T6, conductive clear chromate Rear tie bars 2 Aluminium alloy BS 1474 6063T6, conductive clear chromate Centre rear tie bar (6U only) 1 Aluminium alloy BS 1474 6063T6, conductive clear chromate Tapped strips MS Zinc passivate Backplane variants (3U/6U) 4/6 DIN 41612 variants 2 (the rear extrusions are fully tapped) All fixings Assembly instructions Optional: handles 2 160 Board in 220 subrack Top and bottom Backplane spacers (order separately) Backplane Extrusions DIN 41612 Extrusions Top and bottom VGROTiC Electronics Packaging Tel: +44 (0)2380-246900 sales@verotecco.uk 18
