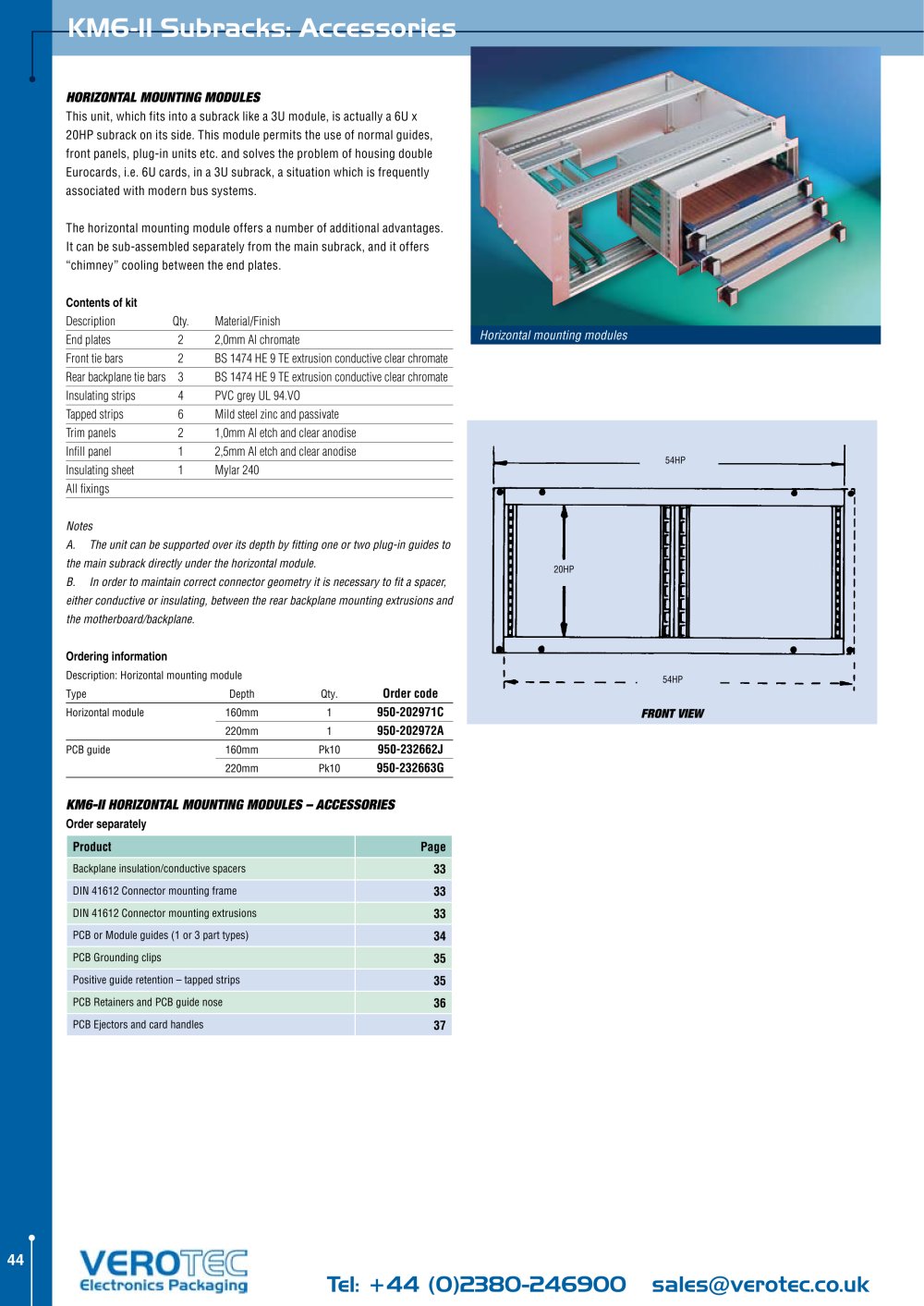

Untitled table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.90pt "Arial", sans-serif; } .font1 { font:5.00pt "Arial", sans-serif; } .font2 { font:5.25pt "Arial", sans-serif; } .font3 { font:7.00pt "Arial", sans-serif; } .font4 { font:8.00pt "Arial", sans-serif; } .font5 { font:9.00pt "Arial", sans-serif; } .font6 { font:12.00pt "Arial", sans-serif; } .font7 { font:14.00pt "Arial", sans-serif; } .font8 { font:22.00pt "Arial", sans-serif; } .font9 { font:6.00pt "Impact", sans-serif; } .font10 { font:13.85pt "Impact", sans-serif; } I Subracks: Accessori< HORIZONTAL MOUNTING MODULES This unit, which fits into a subrack like a 3U module, is actually a 6U x 20HP subrack on its side. This module permits the use of normal guides, front panels, plug-in units etc. and solves the problem of housing double Eurocards, i.e. 6U cards, in a 3U subrack, a situation which is frequently associated with modern bus systems. The horizontal mounting module offers a number of additional advantages. It can be sub-assembled separately from the main subrack, and it offers "chimney" cooling between the end plates. Contents of kit Description Qty. Material/Finish End plates 2 2,0mm Al chromate Front tie bars 2 BS 1474 HE 9 TE extrusion conductive clear chromate Rear backplane tie bars 3 BS 1474 HE 9 TE extrusion conductive clear chromate Insulating strips 4 PVC grey UL 94.VO Tapped strips 6 Mild steel zinc and passivate Trim panels 2 1,0mm Al etch and clear anodise Infill panel 1 2,5mm Al etch and clear anodise Insulating sheet 1 Mylar 240 All fixings Horizontal mounting modules 54HP Notes A. The unit can be supported over its depth by fitting one or two plug-in guides to the main subrack directly under the horizontal module. B. In order to maintain correct connector geometry it is necessary to fit a spacer, either conductive or insulating, between the rear backplane mounting extrusions and the motherboard/backplane. 20HP 1 Ordering information Description: Horizontal mounting module Type Depth Qty. Order code Horizontal module 160mm 1 950-202971C 220mm 1 950-202972A PCB guide 160mm Pk10 950-232662J 220mm Pk10 950-232663G 54HP FRONT VIEW KM6-II HORIZONTAL MOUNTING MODULES - ACCESSORIES Order separately Product Page Backplane insulation/conductive spacers 33 DIN 41612 Connector mounting frame 33 DIN 41612 Connector mounting extrusions 33 PCB or Module guides (1 or 3 part types) 34 PCB Grounding clips 35 Positive guide retention - tapped strips 35 PCB Retainers and PCB guide nose 36 PCB Ejectors and card handles 37 44 VGROT€C Electronics Packaging tei: +44 (0)2380-246900 salES@VErotEC.co.uk
