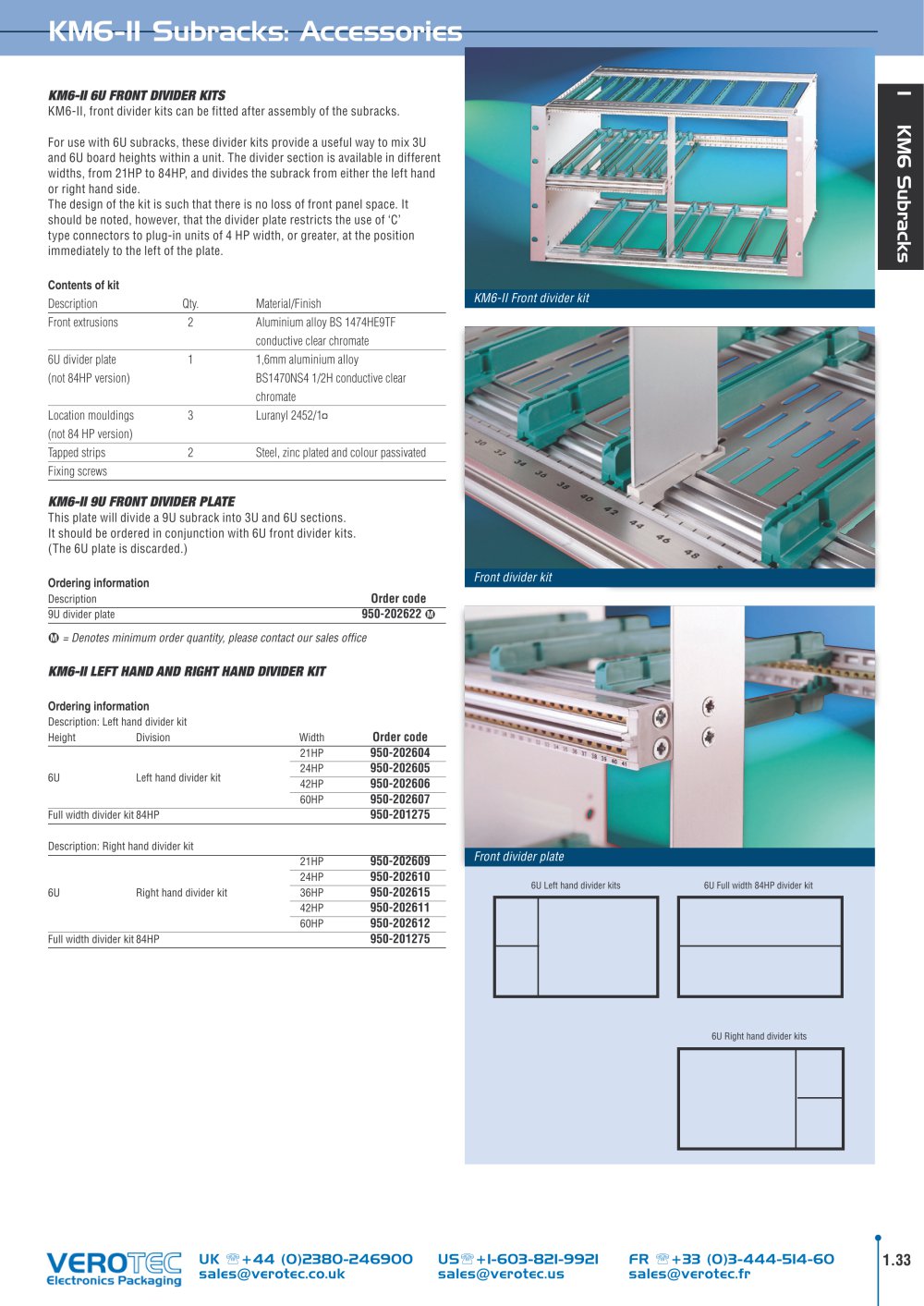

Untitled table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.00pt "Arial", sans-serif; } .font1 { font:4.90pt "Arial", sans-serif; } .font2 { font:5.00pt "Arial", sans-serif; } .font3 { font:5.25pt "Arial", sans-serif; } .font4 { font:6.00pt "Arial", sans-serif; } .font5 { font:7.00pt "Arial", sans-serif; } .font6 { font:8.00pt "Arial", sans-serif; } .font7 { font:9.00pt "Arial", sans-serif; } .font8 { font:10.00pt "Arial", sans-serif; } .font9 { font:11.00pt "Arial", sans-serif; } .font10 { font:14.00pt "Arial", sans-serif; } .font11 { font:16.00pt "Arial", sans-serif; } .font12 { font:22.00pt "Arial", sans-serif; } .font13 { font:56.00pt "Arial", sans-serif; } cks: Accessori 1 km6-u guides one part guides Type 1 PCB For Eurocards of 1,6mm thickness, either 100mm, 160mm or 220mm long. Compatible with grounding clip, see page 35 Type 2 PCB For Eurocards of 2,4mm thickness, either 160mm or 220mm long. Not compatible with grounding clip. Type 3 PIU Plug-in unit (piu) type for cards 111,76 or 245,1mm height, 1,6mm thickness, 160 or 220mm long. Type 4 PCB For Eurocards of 1,6mm thickness, 220mm long, this guide will fit over intermediate extrusions, permitting mixing of pcb depths. Compatible with grounding clip. See page 35. 1 2 3 4 One part guides Contents of kit Description Material/Finish 1,6mm slot guides have bolt down facility Types 1, 3, 4 Luranylo 2452/1 or equivalent, green Types 2 Luranylo 2452/1 or equivalent, black Ordering information Description: KM6-II Guides - One part Type Application Board Length Qty. Order code 100 mm 10 950-242850B 160 mm 10 950-232662J 1 PCB 1,6mm thick 160 mm 1000 956-243239E 220 mm 10 956-232663G 220 mm 1000 956-243240J 2 PCB 2,4mm thick 160 mm 10 173-232666F 220 mm 10 173-232667D 3 Plug-in-unit 160 mm 10 950-232664E 220 mm 10 950-232665C 4 Low profile PCB 220 mm 10 950-232668H three part guides One part guides Type 5 Aluminium centre section, with plastic slide in guide section, for 280mm, 340mm or 400mm lengths, 1,6mm thickness. Order separately: End feet for pcb or piu. Three part guide end feet for Eurocards of 1,6mm thickness. Three part guide end feet for piu of 1,6mm thickness. PCB Guides —i---1-------!-!-J i! Plug-in unit guides ■79,3 1 39,3 199,3 Type 6 Type 8 Contents of kit Item/Description Material/Finish Type 5 Al extrusion, anodised, plastic side-in section Noryl 2452/1o, black Type 6 and 8 Noryl 2452/1o, green :-....... Luranylo 2452/1 is a UL94 VI rated material with a continuous rating of 105°C Ordering information Description: KM6-II Guides - Three part Type Application Board Length Qty. Order code 280 mm 10 950-276108B 5 PCB 1,6mm thick 340 mm 10 950-276109L 400 mm 10 950-276110D 6 Guide feet, PCB 1,6mm thick 10 prs. 950-202635H 8 Guide feet, PIU or PCB 1,6mm thick 10 prs. 950-202636F Three part guides Guide length 'L' Guides should be cut to pcb length minus 76mm. VGROYdC etcctronicsPi^hasTig Tel: +44 (0)2380-246900 sales@verotecco.uk
