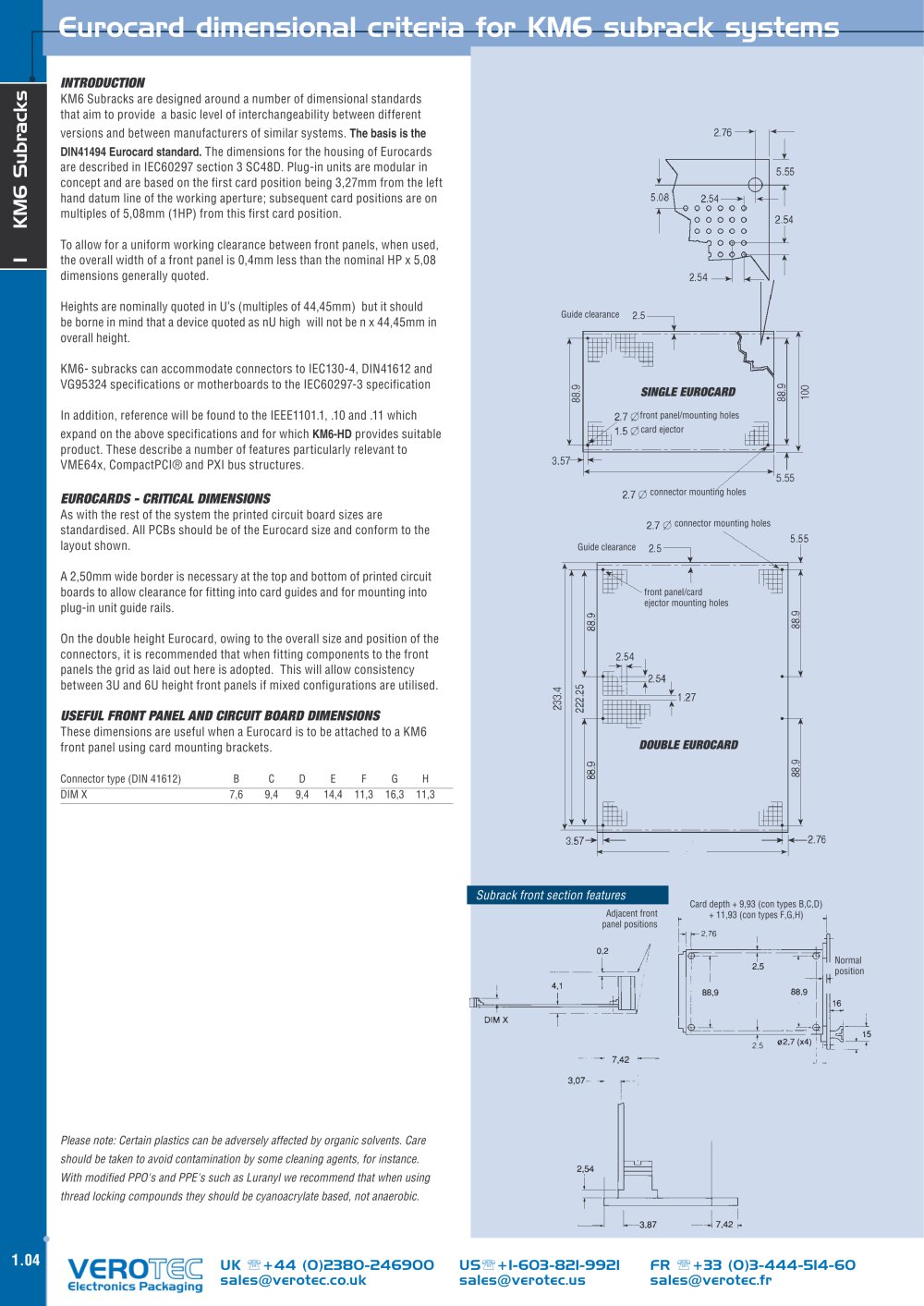

Eurocard dimensional criteria for KM6 subrack systemsINTRODUCTIONKM6 Subracks are designed around a number of dimensional standards that aim to provide a basic level of interchangeability between different versions and between manufacturers of similar systems. The basis is the DIN41494 Eurocard standard. The dimensions for the housing of Eurocards are described in IEC60297 section 3 SC48D. Plug-in units are modular in concept and are based on the first card position being 3,27mm from the left hand datum line of the working aperture; subsequent card positions are on multiples of 5,08mm (1HP) from this first card position.To allow for a uniform working clearance between front panels, when used, the overall width of a front panel is 0,4mm less than the nominal HP x 5,08 dimensions generally quoted.Heights are nominally quoted in U’s (multiples of 44,45mm) but it should be borne in mind that a device quoted as nU high will not be n x 44,45mm in overall height.KM6- subracks can accommodate connectors to IEC130-4, DIN41612 and VG95324 specifications or motherboards to the IEC60297-3 specificationIn addition, reference will be found to the IEEE1101.1, .10 and .11 which expand on the above specifications and for which KM6-RF provides suitable product. These describe a number of features particularly relevant to VME64x, CompactPCI® and PXI bus structures. SINGLE EUROCARDfront panel/mounting holescard ejector connector mounting holesfront panel/cardejector mounting holes EUROCARDS - CRITICAL DIMENSIONSAs with the rest of the system the printed circuit board sizes are standardised. All PCBs should be of the Eurocard size and conform to the layout shown.A 2,50mm wide border is necessary at the top and bottom of printed circuit boards to allow clearance for fitting into card guides and for mounting into plug-in unit guide rails.On the double height Eurocard, owing to the overall size and position of the connectors, it is recommended that when fitting components to the front panels the grid as laid out here is adopted. This will allow consistency between 3U and 6U height front panels if mixed configurations are utilised.Guide clearanceconnector mounting holes Guide clearance USEFUL FRONT PANEL AND CIRCUIT BOARD DIMENSIONSThese dimensions are useful when a Eurocard is to be attached to a KM6 front panel using card mounting brackets. DOUBLE EUROCARDConnector type (DIN 41612) B C D E F G HDIM X 7,6 9,4 9,4 14,4 11,3 16,3 11,3 Subrack front section features Card depth + 9,93 (con types B,C,D)+ 11,93 (con types F,G,H)Normal positionAdjacent front panel positions Please note: Certain plastics can be adversely affected by organic solvents. Care should be taken to avoid contamination by some cleaning agents, for instance. With modified PPO's and PPE's such as Luranyl we recommend that when using thread locking compounds they should be cyanoacrylate based, not anaerobic. 3Tel: +44 (0)2380-246900 sales@verotec.co.uk |
|
