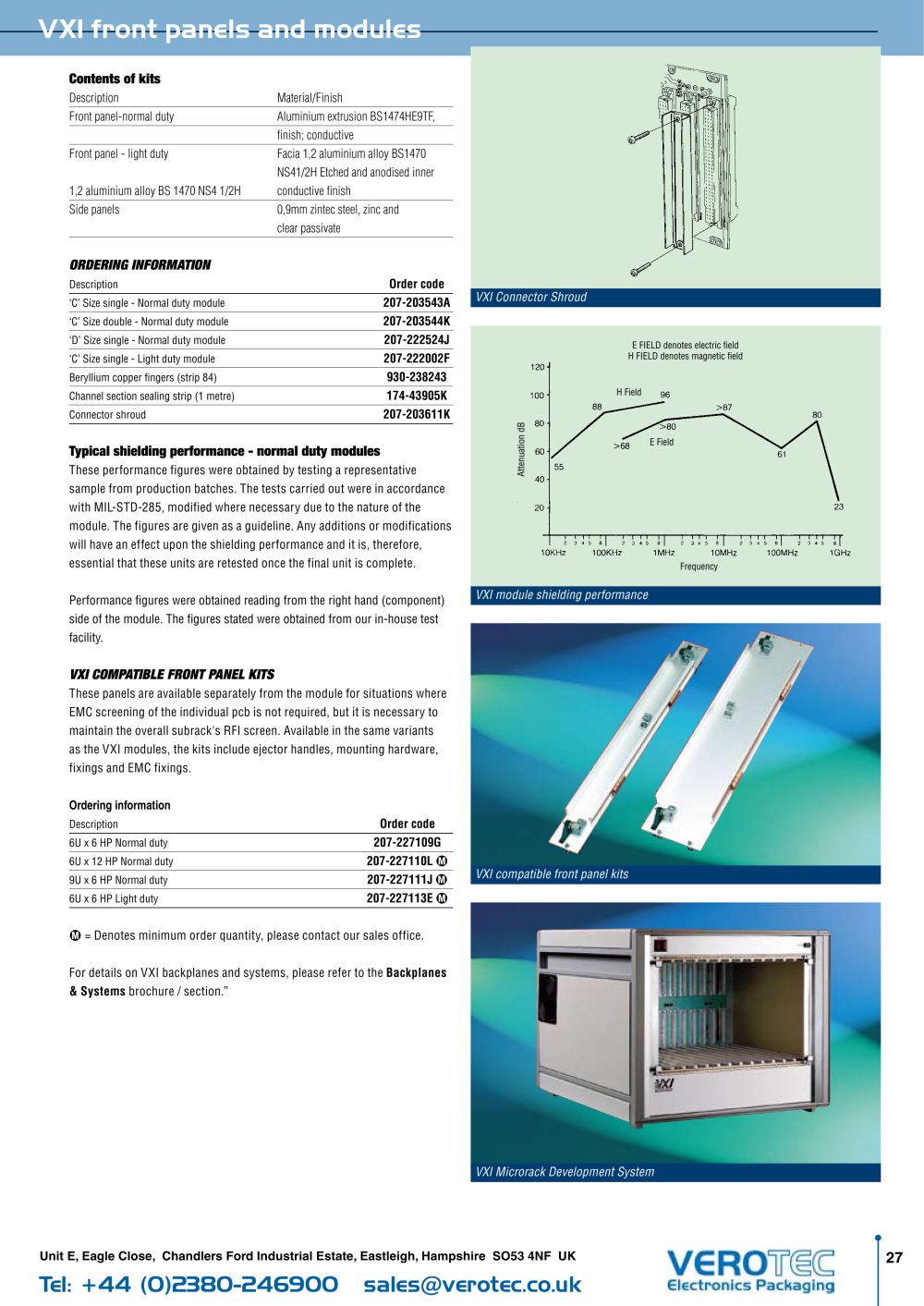

Untitled table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.90pt "Arial", sans-serif; } .font1 { font:5.00pt "Arial", sans-serif; } .font2 { font:5.25pt "Arial", sans-serif; } .font3 { font:6.00pt "Arial", sans-serif; } .font4 { font:7.00pt "Arial", sans-serif; } .font5 { font:8.00pt "Arial", sans-serif; } .font6 { font:9.00pt "Arial", sans-serif; } .font7 { font:10.00pt "Arial", sans-serif; } .font8 { font:14.00pt "Arial", sans-serif; } .font9 { font:16.00pt "Arial", sans-serif; } .font10 { font:22.00pt "Arial", sans-serif; } front panels and module: Contents of kits Description Material/Finish Front panel-normal duty Aluminium extrusion BS1474HE9TF, finish; conductive Front panel - light duty 1,2 aluminium alloy BS 1470 NS4 1/2H Facia 1,2 aluminium alloy BS1470 NS41/2H Etched and anodised inner conductive finish Side panels 0,9mm zintec steel, zinc and clear passivate ORDERING INFORMATION Description Order code 'C' Size single - Normal duty module 207-203543A 'C' Size double - Normal duty module 207-203544K 'D' Size single - Normal duty module 207-222524J 'C' Size single - Light duty module 207-222002F Beryllium copper fingers (strip 84) 930-238243 Channel section sealing strip (1 metre) 174-43905K Connector shroud 207-203611K VXI Connector Shroud E FIELD denotes electric field H FIELD denotes magnetic field Typical shielding performance - normal duty modules These performance figures were obtained by testing a representative sample from production batches. The tests carried out were in accordance with MIL-STD-285, modified where necessary due to the nature of the module. The figures are given as a guideline. Any additions or modifications will have an effect upon the shielding performance and it is, therefore, essential that these units are retested once the final unit is complete. Performance figures were obtained reading from the right hand (component) side of the module. The figures stated were obtained from our in-house test facility. VXI COMPATIBLE FRONT PANEL KITS These panels are available separately from the module for situations where EMC screening of the individual pcb is not required, but it is necessary to maintain the overall subrack's RFI screen. Available in the same variants as the VXI modules, the kits include ejector handles, mounting hardware, fixings and EMC fixings. < ; ;u il ; iis ii ; w.ï ï\ i 10KHZ 100KHZ 1MHz 10MHz Frequency s il 1 iil il 100MHz 1GHz VXI module shielding performance Ordering information Description Order code 6U x 6 HP Normal duty 207-227109G 6U x 12 HP Normal duty 207-227110L© 9U x 6 HP Normal duty 207-227111J © 6U x 6 HP Light duty 207-227113E © © = Denotes minimum order quantity, please contact our sales office. For details on VXI backplanes and systems, please refer to the Backplanes & Systems brochure / section." Unit E, Eagle Close, Chandlers Ford Industrial Estate, Eastleigh, Hampshire SO53 4NF UK Tel: +44 (0)2380-246900 salES@verotEC.co.uk VGROTfiC Electronics Packaging 27
