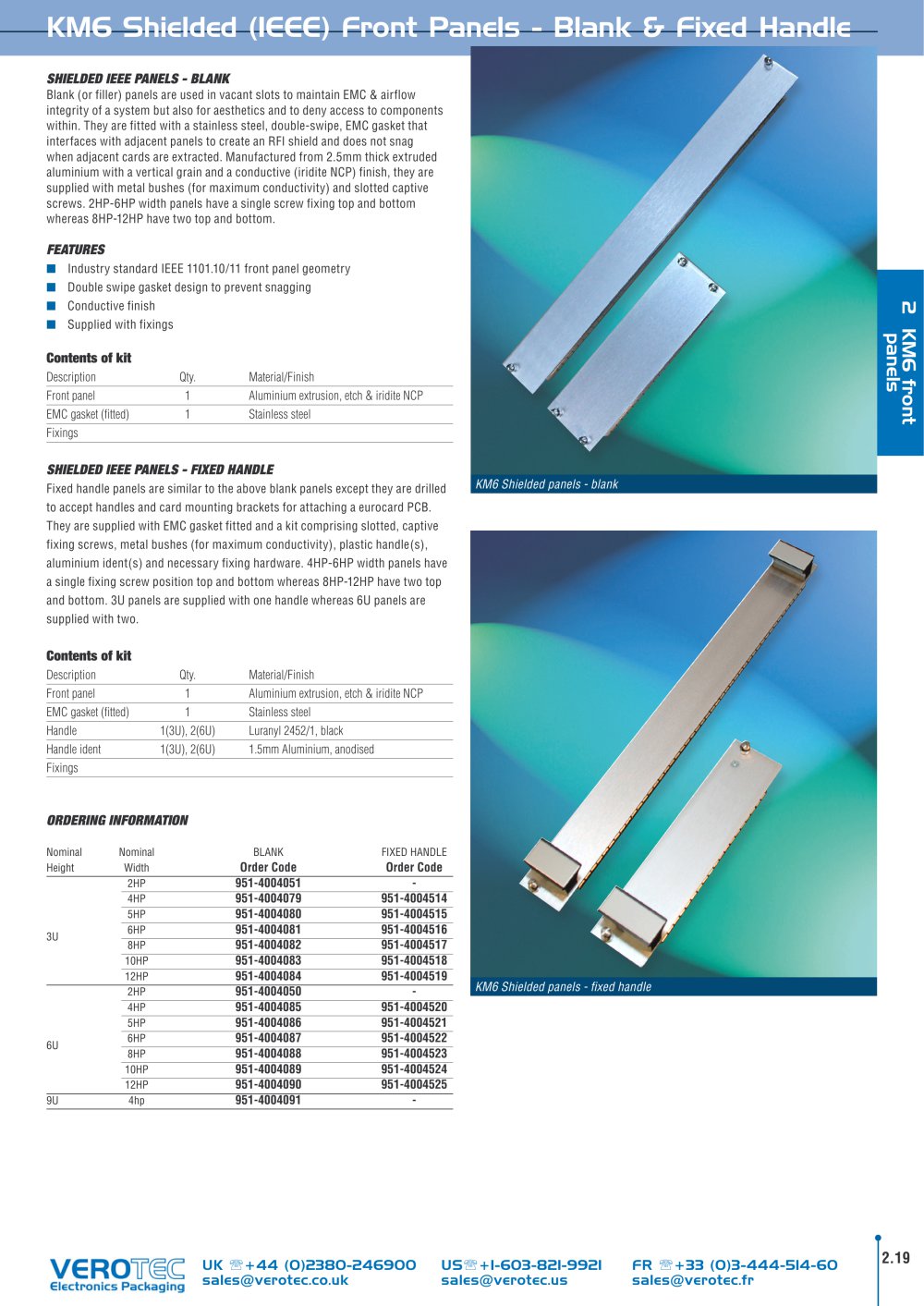

Untitled table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.90pt "Arial", sans-serif; } .font1 { font:5.25pt "Arial", sans-serif; } .font2 { font:7.00pt "Arial", sans-serif; } .font3 { font:9.00pt "Arial", sans-serif; } .font4 { font:10.00pt "Arial", sans-serif; } .font5 { font:14.00pt "Arial", sans-serif; } .font6 { font:16.00pt "Arial", sans-serif; } Gnhanced plug-in units - 4 Rail 160MM AND 220MM DEPTH Supplied in kit form, the KM6-II extruded plug-in unit offers strength and simple assembly. Features ■ Plug-in units with normal or high level screening ■ 3U x 160mm or 3U x 220mm, various widths ■ Electrical continuity between all components ■ KM6-II modules with mechanical strength for heavy components ■ Good thermal properties and electromagnetic shielding between neighbouring system components ■ Front panels with anodised front face, chromated rear face ■ Compatible with DIN 41494 / IEC 60297-3 Construction is based on two conductive extruded side plates offering new facilities. Ventilated top and bottom covers slide into angled grooves in the extrusions. Rear covers, with a cut-out for DIN 41612 connectors, screw to the side extrusions. On high screening level versions, additional fixings are provided at the front and rear to maintain limited slot lengths. Metal inserts are provided for electrical continuity when fitting to the subrack. Features are provided in the extrusion for two x 160mm tapped strips offering facilities for mounting components. Single Eurocard/connector assemblies can be attached with separate metal mounting brackets. These modules mount to four PCB guides: 950-232662J (PK.10) for the 160mm deep module or 950-232663G (PK.10) for the 220mm deep version. Contents of kit Description Qty. Material/Finish Front panel 1 2,5mm Aluminium alloy, clear anodised front face, chromated rear, horizontal grain Side extrusion 2 Aluminium alloy, unfinished Top,bottom and rear covers 1 1mm galvanised steel Handle_1_Luranyl 2452/1, black_ Ident label 1 1,5mm aluminium, anodised Fixings Assembly instructions KM6-II Plug-in units (4 rail) The normal version has plastic inserts, the higher level version metal inserts. ORDERING INFORMATION Description: 4 Rail module - 160mm deep version Order codes Height Width Front panel PCB component Normal High level HP width mm height max. version screening 12 60,56 39,2mm 951-263121A 951-263126B 14 70,72 49,3mm 951-263122K 951-263127L 3U 21 106,28 84,9mm 951-263123H 951-263128J 24 121,52 100,1mm 951-263124F 951-263129G 42 212,96 191,6mm 951-263125D 951-263130L Description: 4 Rail module - 220mm deep version 12 60,56 39,2mm 951-263909C 951-263913A 3U 14 70,72 49,3mm 951-263910G 951-263914K 21 106,28 84,9mm 951-263911E 951-263915H 24 121,52 100,1mm 951-263912C 951-263916F ORDER SEPARATELY Metal front panel bush pk 100 953-236506A PCB/connector mounting brackets pk 5 pr. 951-263755D Tapped strip M2,5 x 160mm pk 10 951-263756B Tapped strip M2,5, 42HP wide 1 950-202739G 19 Tel: +44 (0)2380-246900 salES@VErotEC.co.uk Electronics Packaging
