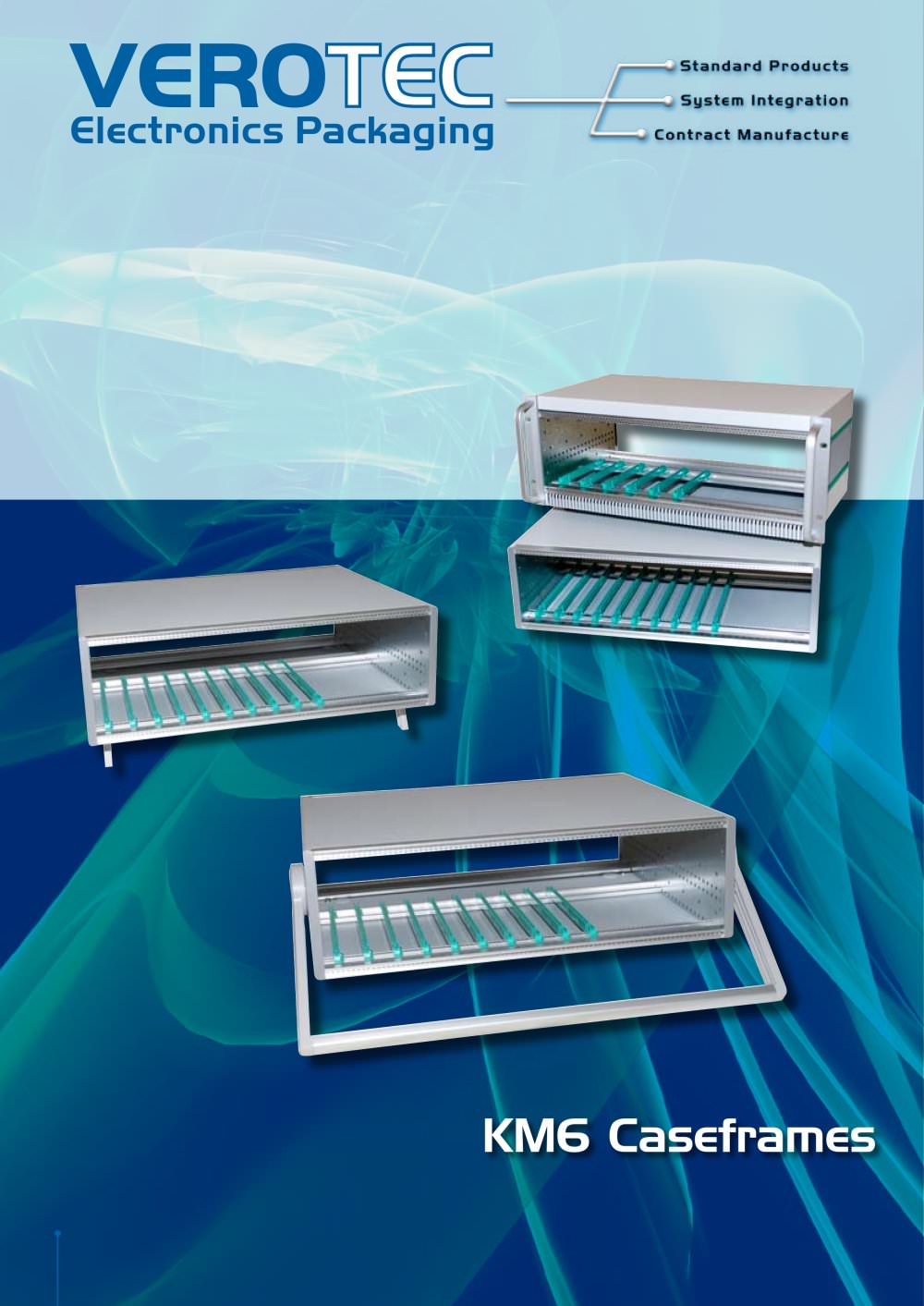

KM6 Caseframe
8Pages

VERO > Electronics Packaging TEC > KM6 Caseframes size="-1">

The KM6 Caseframe is designed for applications that require the mounting / housing of Eurocard-style electronics (cards or modules) in either a 19 rackmount, desktop or portable formfactor. A step up from a standard subrack, its design requires no external housing, and offers optional EMC protection along with the integration of cooling fans and power supplies in a self contained, attractive unit. Top and bottom covers are easily removed for system building and servicing requirements. > Desk top, 19 Rack mounting or portable > KM6 Caseframes Easy access for servicing > 3U and 6U Eurocard...

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Arial", sans-serif; } .font1 { font:9.00pt "Arial", sans-serif; } .font2 { font:10.00pt "Arial", sans-serif; } .font3 { font:14.00pt "Arial", sans-serif; } .font4 { font:22.00pt "Arial", sans-serif; } CASEFRAME STYLES The KM6 Caseframe is available in either a desktop, 19" rackmount or portable style to suit a number of different application environments. Desktop - with front trims giving a neat appearance and with fold down feet fitted at the front and complimentary non-slip feet at the rear. Included is a kit of 4 x...

A wide range of compatible KM6-II accessories can be found in the Subracks / Front Panel brochures / sections and include guides, front panels, modules and chassis system etc. In addition to these, the following specific accessories are also available ensuring the requirements of many applications can be met with standard off-the shelf parts > Standard KM6 Caseframes are 84HP wide and the Rack Mounted Unit may be converted to a Desk Top unit by replacing the rack mounting angles with a set of front trims. Select by the overall height. Front Trims are supplied in Pairs Desktop conversion 19...

A wide range of compatible KM6-II accessories can be found in the Subracks / Front Panel brochures / sections and include guides, front panels, modules and chassis system etc. In addition to these, the following specific accessories are also available ensuring the requirements of many applications can be met with standard off-the shelf parts > The bottom cover of the 3U/5U & 6U/8U versions, which is 1U high, will accept a drop-in fan tray, which draws air through the ventilated front, fitted with an inlet filter retained by the outer front cover. The tray has three positions for 120mm fans...

240360 4803Uor 6U CARD HEIGHT84 HP BACKPLANE TIE BARS(REQUIRE INSULATING or CONDUCTIVE SPACER) OR DIN41612 CONNECTOR MOUNTING TIE BARS (CENTRE TIE BAR FITTED ON 6U)REAR TIE BARS FACTORY FITTED FOR 160 DEEP CARDS IN 240 DEEP CASE AND 160 DEEP CARDS IN 360 & 480 DEEP CASE 250370 4903Uor 6UTRUE HEIGHT CASE3U OR 6U 0.5U4U or7U3U or6U0.5U > +2U CASE3U/5U OR 6U/8U WITH 1.5U DEEP BOTTOM COVER +1U CASE3U/4U OR 6U/7U VENT SLOTS MAY BE AT FRONT OR REAR0.5U5U or8U3U or6U1.5U Unit E, Eagle Close, Chandlers Ford Industrial Estate, Eastleigh, Hampshire SO53 4NF UK >

VENTED PANELS1 or 2 ROWS OF SLOTS 25 x 584HP3U125.53U125.5 6U261.8584HP 6U261.85FAN VENTED PANELSPUNCHED FOR 80mm FANS 3 POSITIONS DROP IN FAN TRAYS 160 or 220 DEEP for 1.5U BOTTOM COVER 119mm FANS UP TO 38mm THICK IN UP TO 3 POSITIONS VENTED FRONT PANEL(FITTED AS STANDARD) REPLACEABLE FILTER ELEMENT (PART OF FAN TRAY OPTION)BLIND FRONT PANEL OPTION > Unit E, Eagle Close, Chandlers Ford Industrial Estate, Eastleigh, Hampshire SO53 4NF UK >
