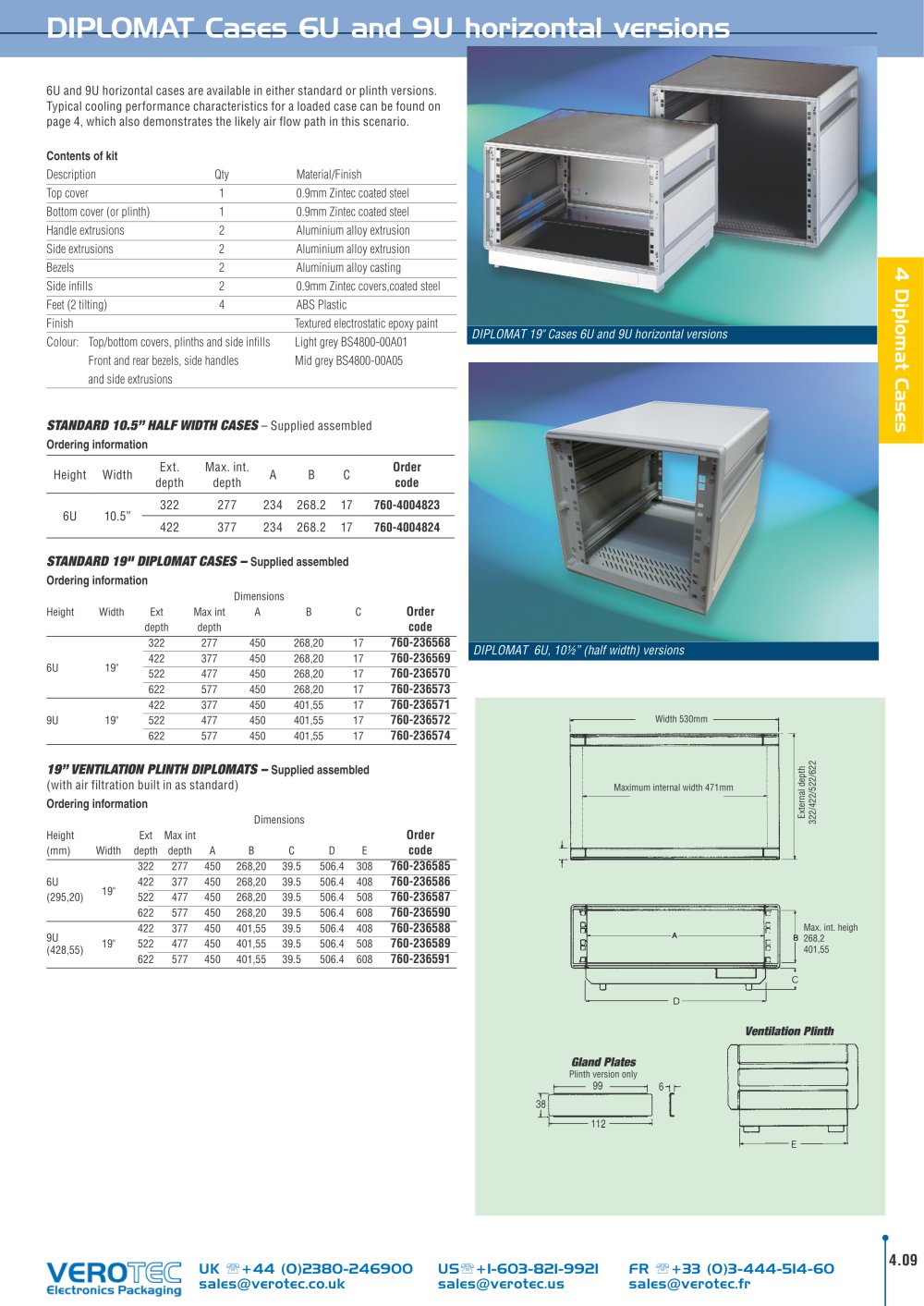

Untitled table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.00pt "Arial", sans-serif; } .font1 { font:4.90pt "Arial", sans-serif; } .font2 { font:5.00pt "Arial", sans-serif; } .font3 { font:6.00pt "Arial", sans-serif; } .font4 { font:7.00pt "Arial", sans-serif; } .font5 { font:8.00pt "Arial", sans-serif; } .font6 { font:9.00pt "Arial", sans-serif; } .font7 { font:9.90pt "Arial", sans-serif; } .font8 { font:14.00pt "Arial", sans-serif; } .font9 { font:15.00pt "Arial", sans-serif; } IPLOMAT Cases 6U and 9U ho 6U and 9U horizontal cases are available in either standard or plinth versions. Typical cooling performance characteristics for a loaded case can be found on page 4, which also demonstrates the likely air flow path in this scenario. Contents of kit Description Qty Material/Finish Top cover 1 0.9mm Zintec coated steel Bottom cover (or plinth) 1 0.9mm Zintec coated steel Handle extrusions 2 Aluminium alloy extrusion Side extrusions 2 Aluminium alloy extrusion Bezels 2 Aluminium alloy casting Side infills 2 0.9mm Zintec covers,coated steel Feet (2 tilting) 4 ABS Plastic Finish Textured electrostatic epoxy paint Colour: Top/bottom covers, plinths and side infills Light grey BS4800-00A01 Front and rear bezels, side handles Mid grey BS4800-00A05 and side extrusions Order separately Description Page Transparent doors and heavy duty carry handle 10 Front panels and front bezel trims 11 Rear panels, cable tidy and fan accessories 12 Rear bump down feet and rear bezel trims 13 Earth continuity kits, chassis supports and chassis trays 14 CM CD DIPLOMAT 19" Cases 6U and 9U horizontal versions Max. int. depth 277 377 477 577 Width 530mm de M M - Plan - Maximum internal width 471mm LO CM CM CM CO 268,2 401,55 Max. int. heigh standard 19" diplomat cases - Supplied assembled Ordering information 6U DIPLOMAT ).53o Dimensions Height Width Ext depth Max int depth A B C Order code 322 277 450 268,20 17 760-236568 6U 19" 422 377 450 268,20 17 760-236569 522 477 450 268,20 17 760-236570 622 577 450 268,20 17 760-236573 422 377 450 401,55 17 760-236571 9U 19" 522 477 450 401,55 17 760-236572 622 577 450 401,55 17 760-236574 Mountlng Dimensions 9U DIPLOMAT |-- 509--j 19" ventilation plinth diplomats - Supplied assembled (with air filtration built in as standard) Ordering information Dimensions 7.10 6U and 9U Extrusion Overall length of extrusion = 266/366/466 Gland Plates Plinth version only - 99 I 6-1 h- Height Ext Max int Order (mm) Width depth depth A B C D E code 322 277 450 268,20 39.5 506.4 308 760-236585 6U 19" 422 377 450 268,20 39.5 506.4 408 760-236586 (295,20) 522 477 450 268,20 39.5 506.4 508 760-236587 622 577 450 268,20 39.5 506.4 608 760-236590 9U (428,55) 422 377 450 401,55 39.5 506.4 408 760-236588 19" 522 477 450 401,55 39.5 506.4 508 760-236589 622 577 450 401,55 39.5 506.4 608 760-236591 -112- ] t Ventilation Plinth Note: Groove accepts a std M4 size nut. Bezel Section -140/2732-1 TeI: +44 (0)2380-246900 salES@VErotEC.co.uk VGROT1C Electronics Packaging 9
