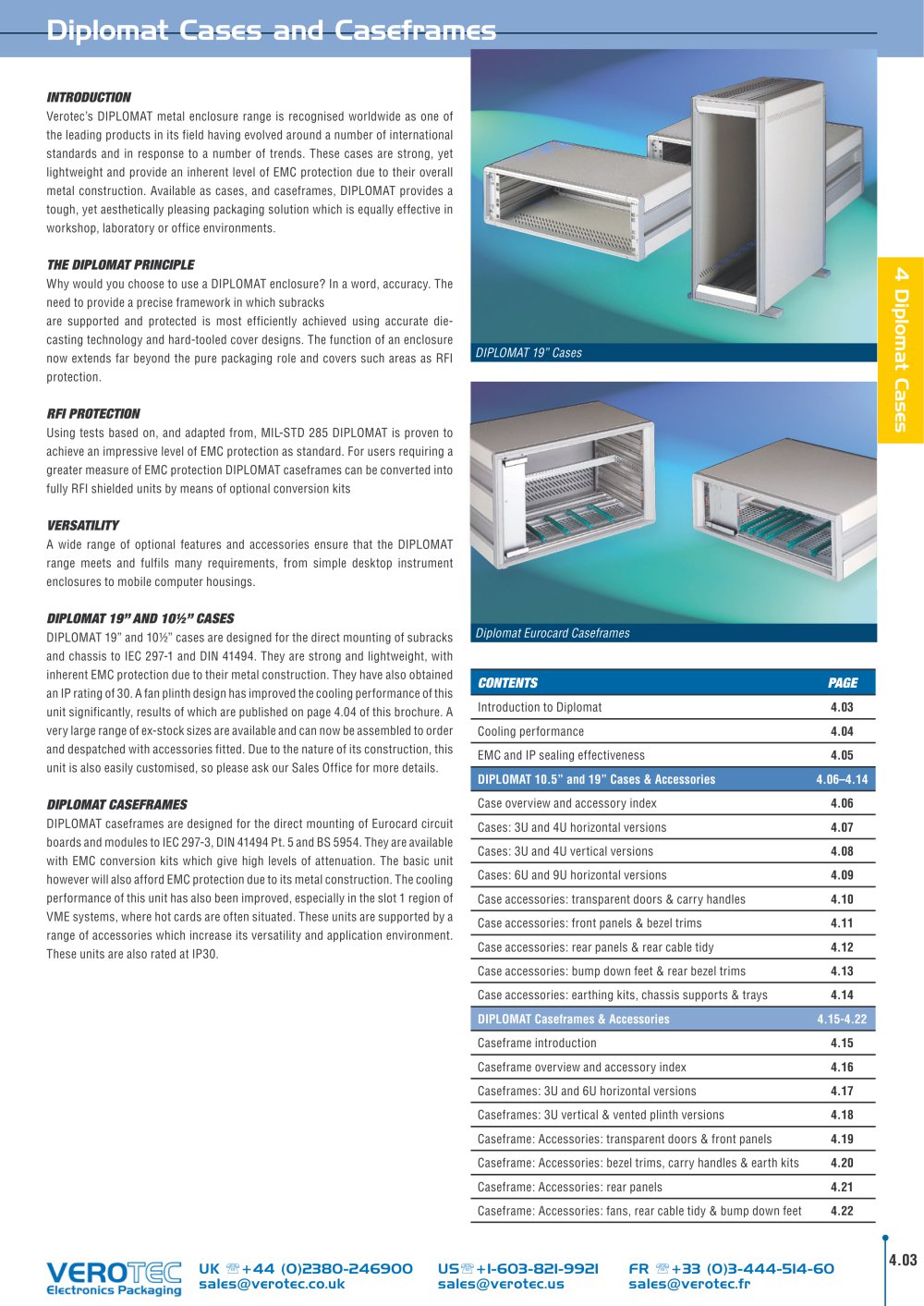

Untitled table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Arial", sans-serif; } .font1 { font:9.00pt "Arial", sans-serif; } .font2 { font:12.00pt "Arial", sans-serif; } .font3 { font:14.00pt "Arial", sans-serif; } .font4 { font:15.00pt "Arial", sans-serif; } IPLOMAT Cases, Toujers and Caseframes diplomat19" and 10%" cases DIPLOMAT 19" and 10^" cases are designed for the direct mounting of subracks and châssis to IEC 297-1 and DIN 41494. They are strong and lightweight, with inherent EMC protection due to their metal construction. They have also obtained an IP rating of 30. A new fan plinth design has improved the cooling performance of this unit significantly, results of which are published on page 4 of this brochure. A very large range of ex-stock sizes are available and can now be assembled to order and despatched with accessories fitted. Due to the nature of its construction, this unit is also easily customised, so please ask our Sales Office for more details. DIPLOMAT 19" Cases diplomat-rf 19" and 10%" cases DIPLOMAT-RF 19" and 10^" cases are designed to suit applications requiring a higher level of EMC protection to shield sensitive electronic equipment. The significantly higher level of protection is achieved by selectively placing BeCu fingers around joints in the enclosure to attain the level of EMC protection required. Because the fingers can be added or removed easily, the level of shielding may be altered to find the most cost-effective solution. diplomat computer towers DIPLOMAT Computer Towers are designed for direct mounting of subracks or chassis and conform to IEC 297-1 and DIN 41494. The towers are available in two widths and can accept up to 12U of subracks or chassis. All units are supplied assembled. DIPLOMAT Computer Tower diplomat caseframes - eurocard compatible DIPLOMAT caseframes are designed for the direct mounting of circuit boards and modules to IEC 297-3, DIN 41494 Pt. 5 and BS 5954. They are available with EMC conversion kits which give high levels of attenuation. The basic unit however will also afford EMC protection due to its metal construction. The cooling performance of this unit has also been improved, especially in the slot 1 region of VME systems, where hot cards are often situated. These units are supported by a range of accessories which increase its versatility and application environment. These units are also rated at IP30. Tel; +44 (0)2380-246900 sales@verotecco.uk 3
