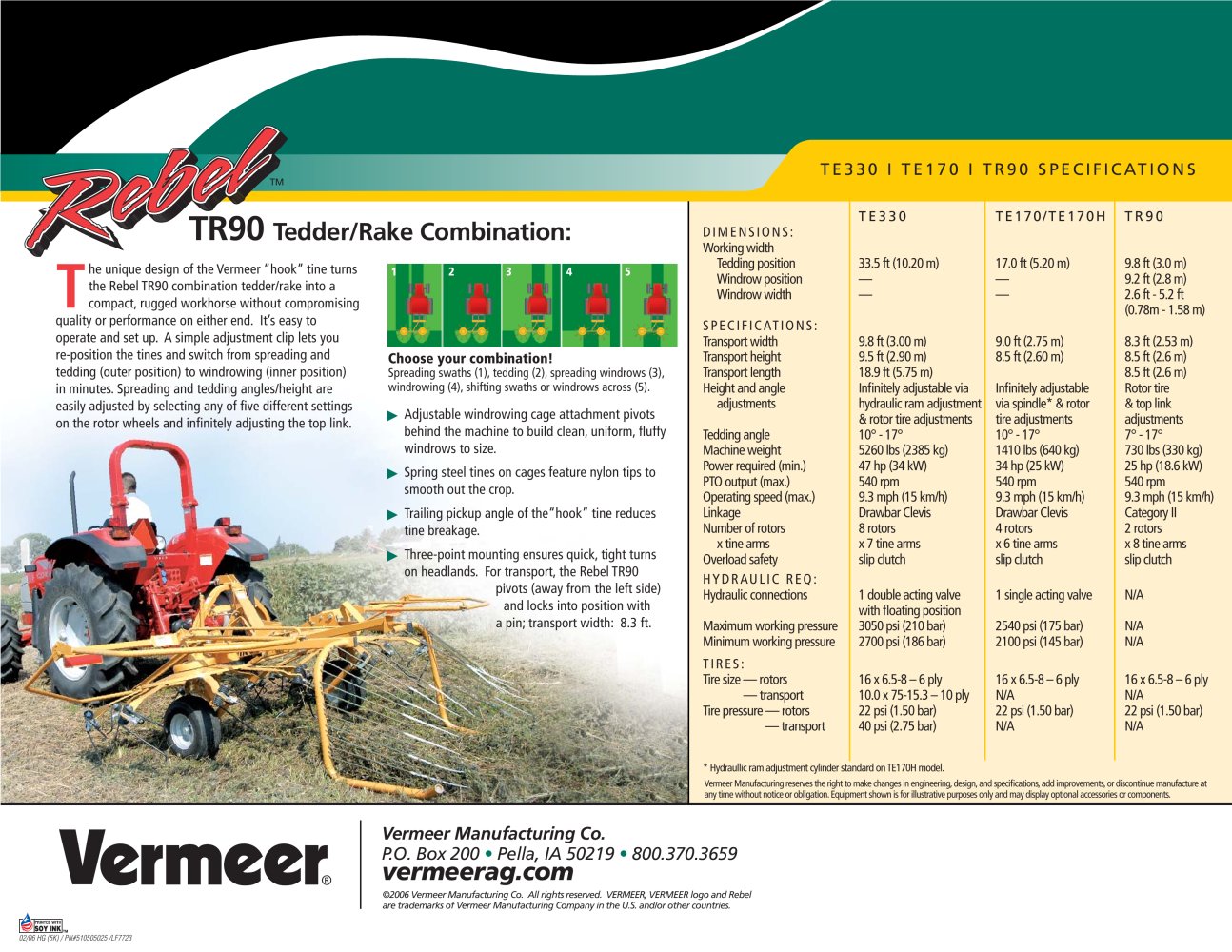

TE330 I TE170 I TR90 SPECIFICATIONS

TR90

TE330 TE170/TE170H TR90

Tedder/Rake Combination:

DIMENSIONS: Working width Tedding position 33.5 ft (10.20 m) 17.0 ft (5.20 m) 9.8 ft (3.0 m) Windrow position — — 9.2 ft (2.8 m) Windrow width — — 2.6 ft - 5.2 ft (0.78m - 1.58 m)SPECIFICATIONS: Transport width 9.8 ft (3.00 m) 9.0 ft (2.75 m) 8.3 ft (2.53 m) Transport height 9.5 ft (2.90 m) 8.5 ft (2.60 m) 8.5 ft (2.6 m) Transport length 18.9 ft (5.75 m) 8.5 ft (2.6 m) Height and angle Infi nitely adjustable via Infi nitely adjustable Rotor tire adjustments hydraulic ram adjustment via spindle* & rotor & top link & rotor tire adjustments tire adjustments adjustments Tedding angle 10° - 17° 10° - 17° 7° - 17° Machine weight 5260 lbs (2385 kg) 1410 lbs (640 kg) 730 lbs (330 kg) Power required (min.) 47 hp (34 kW) 34 hp (25 kW) 25 hp (18.6 kW)PTO output (max.) 540 rpm 540 rpm 540 rpmOperating speed (max.) 9.3 mph (15 km/h) 9.3 mph (15 km/h) 9.3 mph (15 km/h) Linkage Drawbar Clevis Drawbar Clevis Category II Number of rotors 8 rotors 4 rotors 2 rotors x tine arms x 7 tine arms x 6 tine arms x 8 tine arms Overload safety slip clutch slip clutch slip clutchHYDRAULIC REQ:Hydraulic connections 1 double acting valve 1 single acting valve N/A with fl oating position Maximum working pressure 3050 psi (210 bar) 2540 psi (175 bar) N/A Minimum working pressure 2700 psi (186 bar) 2100 psi (145 bar) N/ATIRES:Tire size — rotors 16 x 6.5-8 – 6 ply 16 x 6.5-8 – 6 ply 16 x 6.5-8 – 6 ply — transport 10.0 x 75-15.3 – 10 ply N/A N/A Tire pressure — rotors 22 psi (1.50 bar) 22 psi (1.50 bar) 22 psi (1.50 bar) — transport 40 psi (2.75 bar) N/A N/A

TR90 Rebel® Tedder/Rake Combo - 22663 T

he unique design of the Vermeer “hook” tine turns the Rebel TR90 combination tedder/rake into a compact, rugged workhorse without compromising quality or performance on either end. It’s easy to operate and set up. A simple adjustment clip lets you re-position the tines and switch from spreading and tedding (outer position) to windrowing (inner position) in minutes. Spreading and tedding angles/height are easily adjusted by selecting any of fi ve different settings on the rotor wheels and infi nitely adjusting the top link.
12345 Choose your combination!
Spreading swaths (1), tedding (2), spreading windrows (3), windrowing (4), shifting swaths or windrows across (5). Adjustable windrowing cage attachment pivots behind the machine to build clean, uniform, fl uffy windrows to size. Spring steel tines on cages feature nylon tips to smooth out the crop. Trailing pickup angle of the“hook” tine reduces tine breakage. Three-point mounting ensures quick, tight turns on headlands. For transport, the Rebel TR90 pivots (away from the left side) and locks into position with a pin; transport width: 8.3 ft.
* Hydraullic ram adjustment cylinder standard on TE170H model. Vermeer Manufacturing reserves the right to make changes in engineering, design, and specifi cations, add improvements, or discontinue manufacture at any time without notice or obligation. Equipment shown is for illustrative purposes only and may display optional accessories or components.

Vermeer Manufacturing Co. P.O. Box 200 • Pella, IA 50219 • 800.370.3659
