| 50.3 | ||||||||||||||||

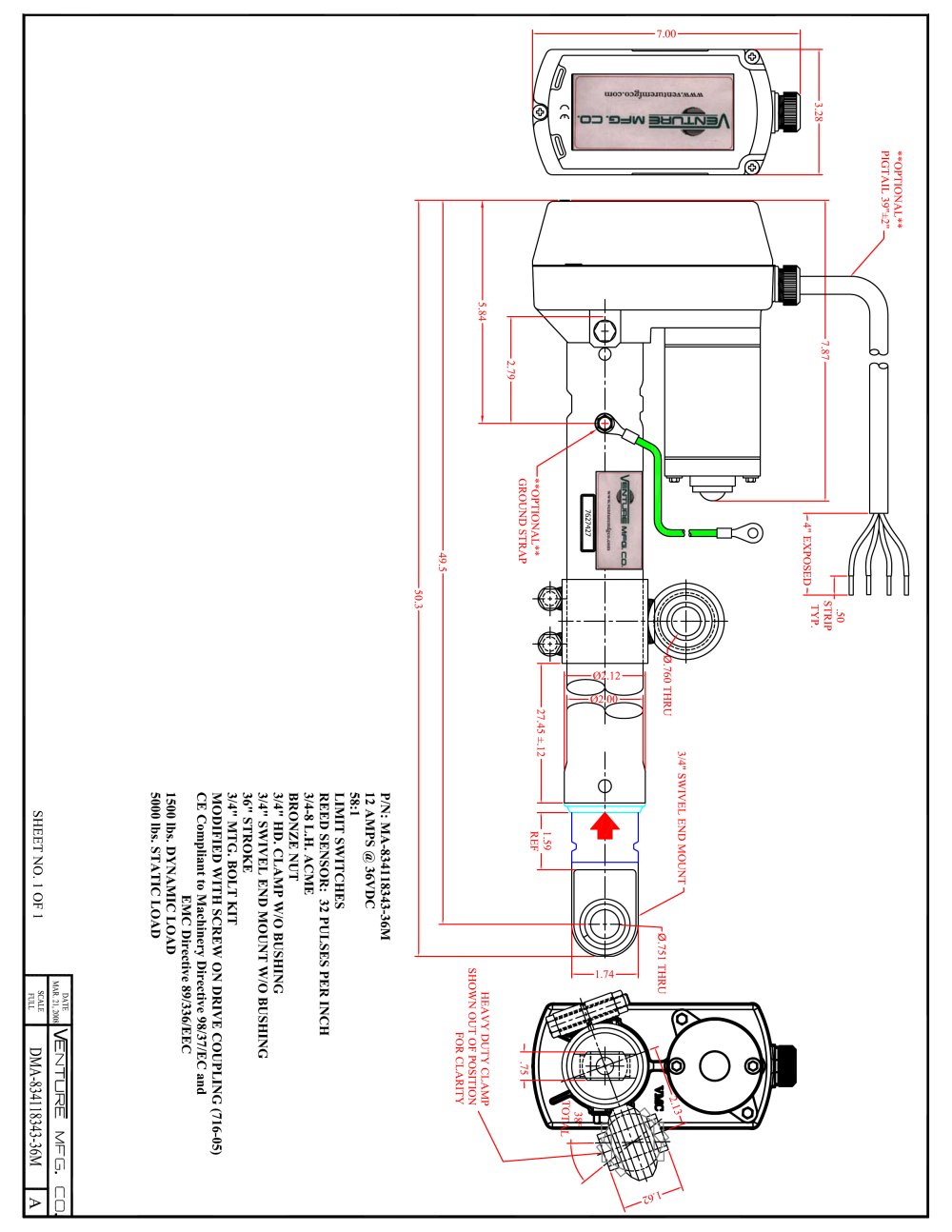

| P/N: MA-834118343-36M 12 AMPS @ 36VDC 58:1 LIMIT SWITCHES REED SENSOR: 32 PULSES PER INCH 3/4-8 L.H. ACME BRONZE NUT 3/4" I ID. CLAMP W/O BUSHING 3/4" SWIVEL END MOUNT W/O BUSHING 36" STROKE 3/4" MTG. BOLT KIT MODIFIED WITH SCREW ON DRIVE COUPLING (716-05) CE Compliant to Machinery Directive 98/37/EC and EMC Directive 89/336/EEC 1500 lbs. DYNAMIC LOAD 5000 lbs. STATIC LOAD | ||||||||||||||||
| DATE MAR. 21,201 | ||||||||||||||||
| Venture mfe. ed | ||||||||||||||||
| SCALE FULL | ||||||||||||||||
| SHEET NO. 1 OF 1 | ||||||||||||||||
| DMA-834118343-36M | ||||||||||||||||
