3636 Dayton Park Drive Dayton, OH 45414 USA Tel: 937-233-8792 Fax: 937-233-8485

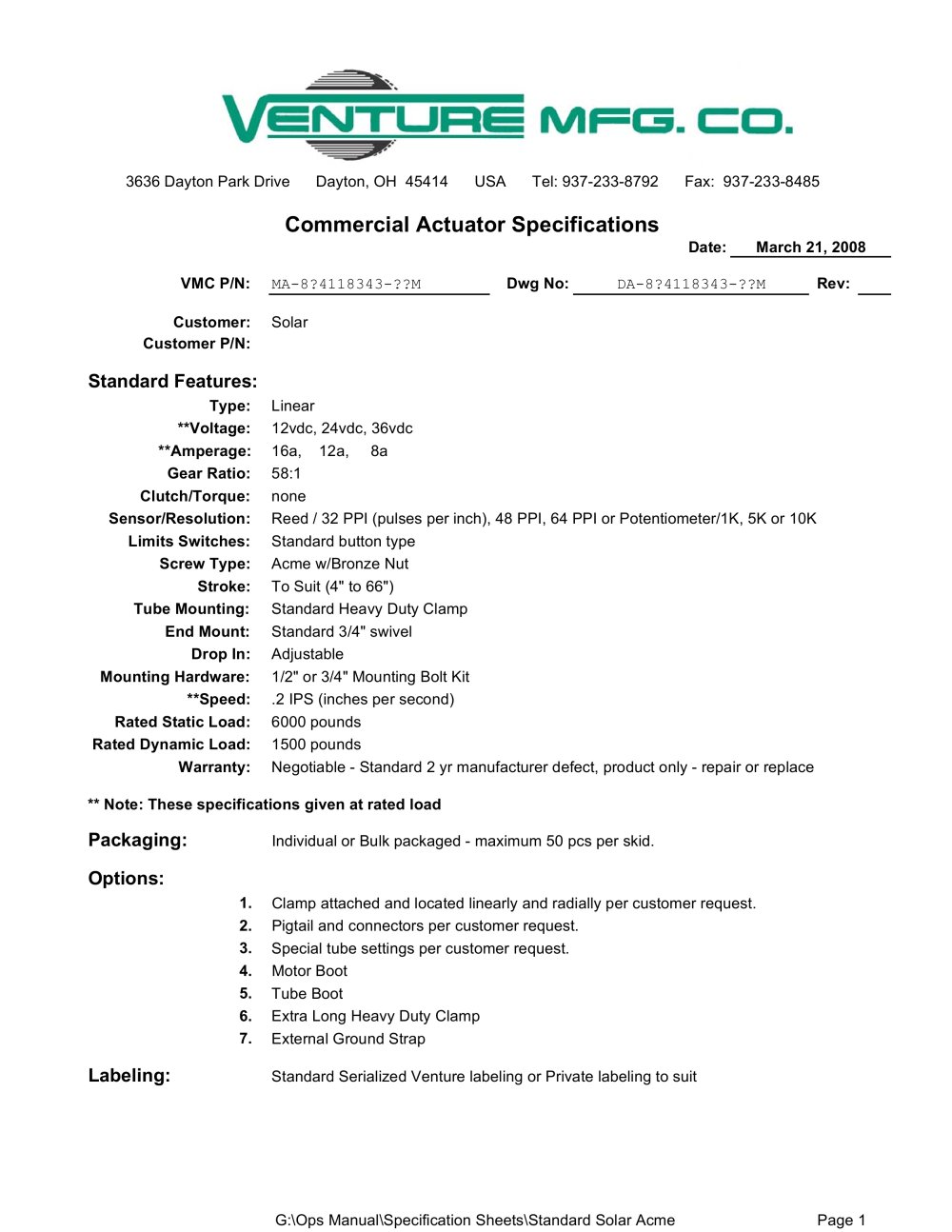

Solar Actuator Specifications - 39592 Commercial Actuator Specifications

Date:VMC P/N: March 21, 2008 MA-8?4118343-??M Dwg No:Rev: Customer: DA-8?4118343-??M Solar Customer P/N:

Standard Features:

Type: Linear **Voltage: 12vdc, 24vdc, 36vdc **Amperage: 16a, 12a, 8a Gear Ratio: 58:1 Clutch/Torque: none Sensor/Resolution: Reed / 32 PPI (pulses per inch), 48 PPI, 64 PPI or Potentiometer/1K, 5K or 10K Limits Switches: Standard button type Screw Type: Acme w/Bronze Nut Stroke: To Suit (4" to 66") Tube Mounting: Standard Heavy Duty Clamp End Mount: Standard 3/4" swivel Drop In: Adjustable Mounting Hardware: 1/2" or 3/4" Mounting Bolt Kit **Speed: .2 IPS (inches per second) Rated Static Load: 6000 pounds Rated Dynamic Load: 1500 pounds Warranty: Negotiable - Standard 2 yr manufacturer defect, product only - repair or replace ** Note: These specifications given at rated load

Packaging:

Individual or Bulk packaged - maximum 50 pcs per skid.

Options:

1.2.3. Clamp attached and located linearly and radially per customer request.Pigtail and connectors per customer request.Motor Boot Special tube settings per customer request. 4.5. Tube Boot 6. Extra Long Heavy Duty Clamp 7. External Ground Strap

Labelin g :

Standard Serialized Venture labeling or Private labeling to suit G:\Ops Manual\Specification Sheets\Standard Solar AcmePage 1
