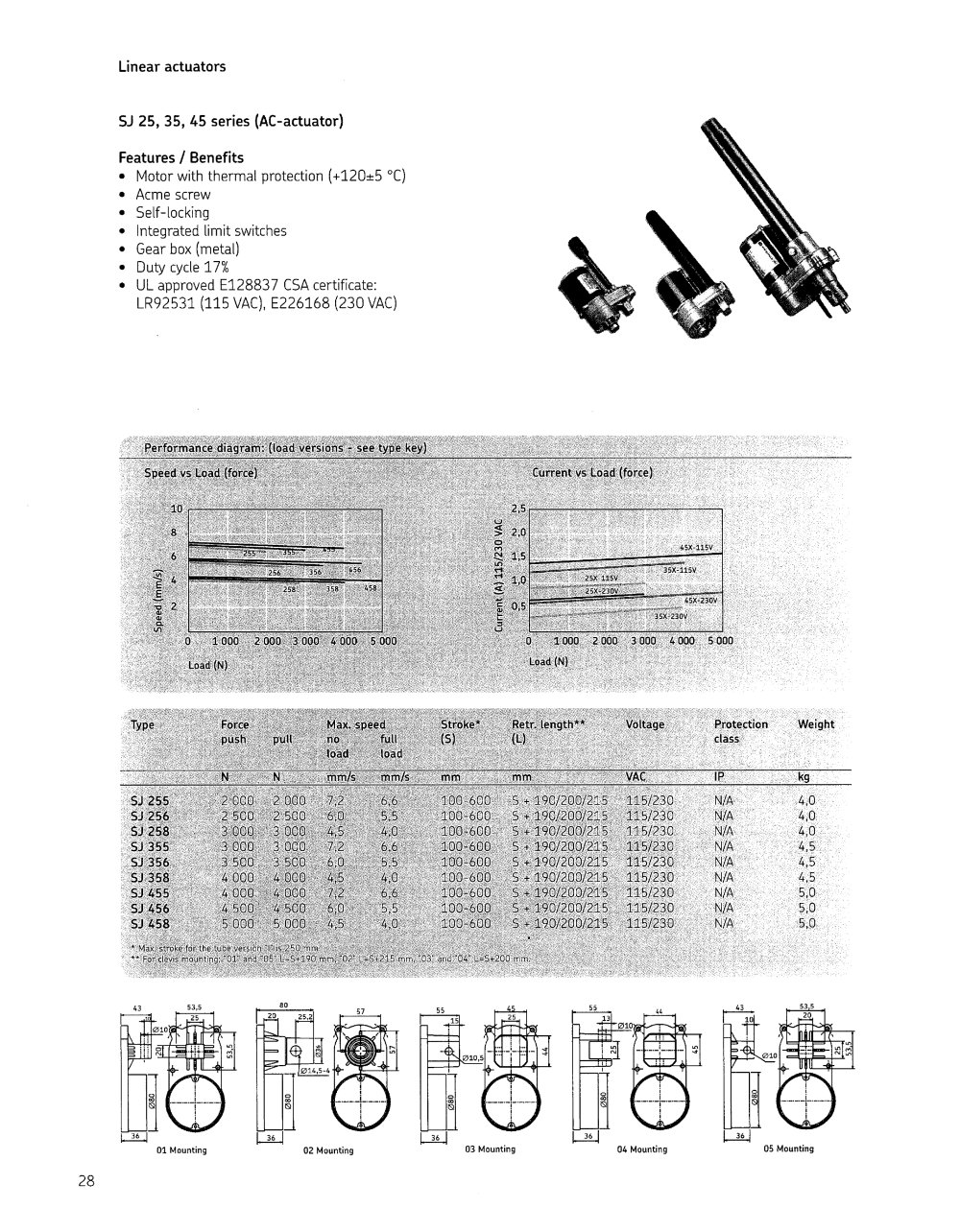

Linear actuators SJ 25, 35, 45 séries (AC-actuator) Features / Benefits • Motor with thermal protection (+120±5 °C) • Acme screw • Self-Locking • Integrated limit switches • Gear box (métal) • Duty cycle 177c • UL approved E128837 CSA certificate: LR92531 (115 VAC), E226168 (230 VAC) Performance diagram: (load versions - see type key) Speed vs Load (force) Current vs Load (force) 255 756 356 456 258 358 458 2,5 2.0 1.5 1,0 0,5 A5X-230V 35X-230V 0 1 000 2 000 3 000 4 000 5 000 Load (N) 0 1000 2 000 3 000 4 000 5 000 Load (N) Type Force Max. speed Stroke* Retr. length** Voltage Protection Weight push pull no fuit (S) (L) class load load N N mm/s mm/s mm mm VAC IP kg SJ 255 2 000 2 000 7 ') 6,6 100-600 S + 190/200/215 115/230 N/A 40 SJ 256 2 5CC 2 5CC 6;0 5,5 100-600 S + 190/200/215 115/230 N/A 4,0 SJ 258 3 000 3 000 4,5 4.0 100-6CC S + 190/200/215 115/230 N/A 4,0 SJ 355 3 CÛO 3 000 7.2 6.6 100-600 5 + 190/200/215 115/230 N/A 4,5 SJ 356 3 500 3 5CC 6,0 5.5 100-600 5 + 190/200/215 115/230 N/A 4,5 SJ 358 4 000 4 000 4.5 4,0 100-600 S + 190/200/215 115/230 N/A 4,5 SJ 455 4 000 4 0CC 7.2 6.6 100-600 S + 190/200/215 115/230 N/A 5,0 SJ 456 4 500 4 500 6,0 5,5 100-600 S + 190/200/215 115/230 N/A 5,0 SJ 458 5 000 5 000 4,5 4.0 100-600 S + 190/200/215 115/230 " N/A 5,0 * Max. strok e for the tube version r .s 250 rr m. - ** For devis mounting; "01" and ' 05" L=S+1C 0 mm, "02" L= S+?15 mm "C 3" and "04" L=S+2 D0 mm.
