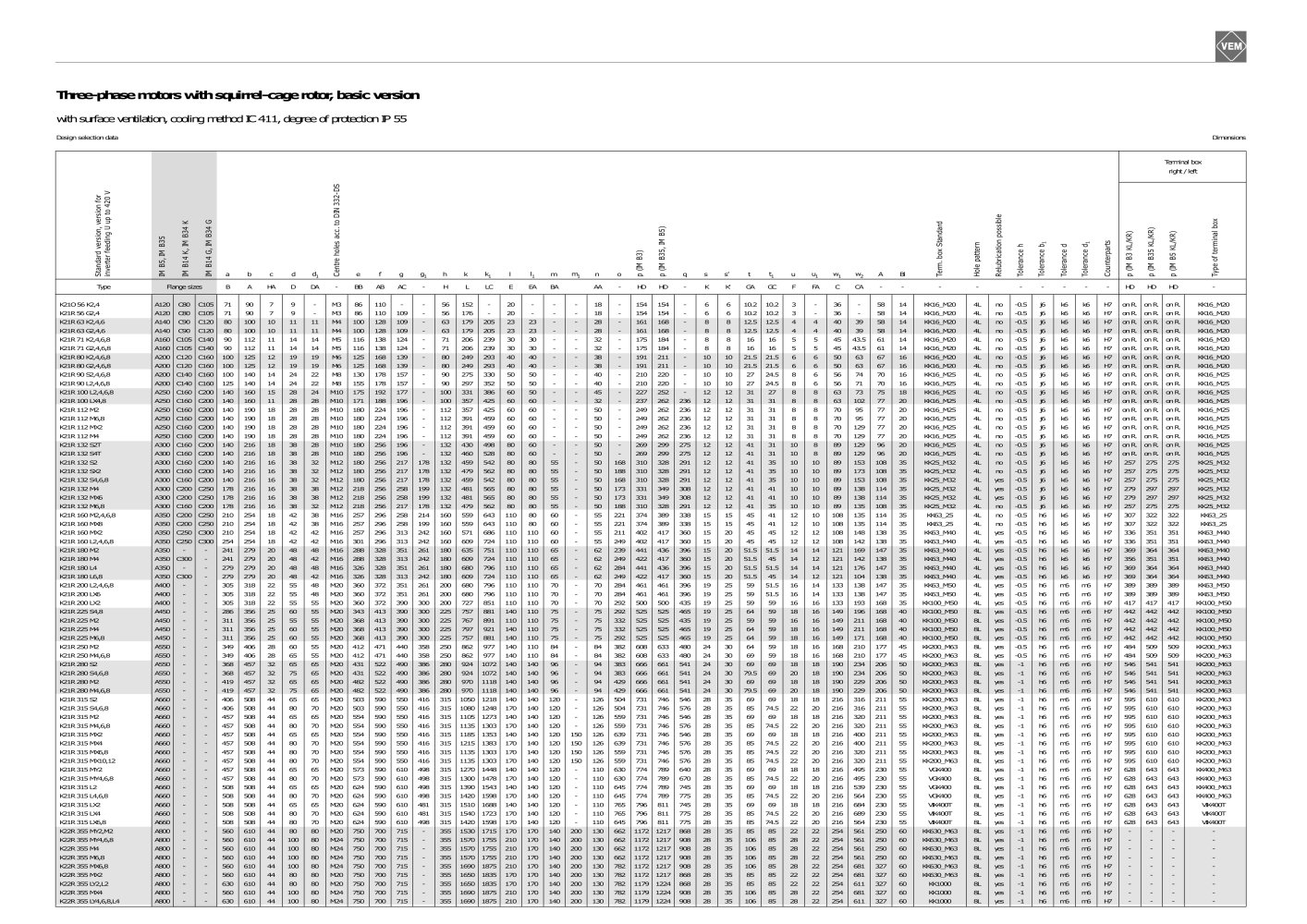

Three-phase motors with squirrel-cage rotor, basic version

with surface ventilation, cooling method IC 411, degree of protection IP 55

Design selection data

Dimensions

Terminal rack right / left


							332-DS


B34	B34						acc.
IM	IM						holes
							holes
tua	B14						Centre
IM	IM	a	b	c	d	d₁	Centre

m₁

o o. n. q

w₁

w₂

^g1

^u1


Type	Flange sizes			B	A	HA	D	DA		BB	AB	AC		H	L	LC	E	EA	BA	AA		HD	HD		K	K	GA	GC	F	FA	C	CA											HD	HD	HD
K21O 56 K2,4	A120	C80	C105	71	90	7	9		M3	86	110			56	152		20			18		154	154		6	6	10.2	10.2	3		36		58	14	KK16 M20	4L	no	-0.5	j6	k6	k6	H7	on R.	on R.	on R.	KK16 M20
K21R 56 G2,4	A120	C80	C105	71	90	7	9		M3	86	110	109		56	176		20			18		154	154		6	6	10.2	10.2	3		36		58	14	KK16 M20	4L	no	-0.5	j6	k6	k6	H7	on R.	on R.	on R.	KK16 M20
K21R 63 K2,4,6	A140	C90	C120	80	100	10	11	11	M4	100	128	109		63	179	205	23	23		28		161	168		8	8	12.5	12.5	4	4	40	39	58	14	KK16 M20	4L	no	-0.5	j6	k6	k6	H7	on R.	on R.	on R.	KK16 M20
K21R 63 G2,4,6	A140	C90	C120	80	100	10	11	11	M4	100	128	109		63	179	205	23	23		28		161	168		8	8	12.5	12.5	4	4	40	39	58	14	KK16 M20	4L	no	-0.5	j6	k6	k6	H7	on R.	on R.	on R.	KK16 M20
K21R 71 K2,4,6,8	A160	C105	C140	90	112	11	14	14	M5	116	138	124		71	206	239	30	30		32		175	184		8	8	16	16	5	5	45	43.5	61	14	KK16 M20	4L	no	-0.5	j6	k6	k6	H7	on R.	on R.	on R.	KK16 M20
K21R 71 G2,4,6,8	A160	C105	C140	90	112	11	14	14	M5	116	138	124		71	206	239	30	30		32		175	184		8	8	16	16	5	5	45	43.5	61	14	KK16 M20	4L	no	-0.5	j6	k6	k6	H7	on R.	on R.	on R.	KK16 M20
K21R 80 K2,4,6,8	A200	C120	C160	100	125	12	19	19	M6	125	168	139		80	249	293	40	40		38		191	211		10	10	21.5	21.5	6	6	50	63	67	16	KK16 M20	4L	no	-0.5	j6	k6	k6	H7	on R.	on R.	on R.	KK16 M20
K21R 80 G2,4,6,8	A200	C120	C160	100	125	12	19	19	M6	125	168	139		80	249	293	40	40		38		191	211		10	10	21.5	21.5	6	6	50	63	67	16	KK16 M20	4L	no	-0.5	j6	k6	k6	H7	on R.	on R.	on R.	KK16 M20
K21R 90 S2,4,6,8	A200	C140	C160	100	140	14	24	22	M8	130	178	157		90	275	330	50	50		40		210	220		10	10	27	24.5	8	6	56	74	70	16	KK16 M25	4L	no	-0.5	j6	k6	k6	H7	on R.	on R.	on R.	KK16 M25
K21R 90 L2,4,6,8	A200	C140	C160	125	140	14	24	22	M8	155	178	157		90	297	352	50	50		40		210	220		10	10	27	24.5	8	6	56	71	70	16	KK16 M25	4L	no	-0.5	j6	k6	k6	H7	on R.	on R.	on R.	KK16 M25
K21R 100 L2,4,6,8	A250	C160	C200	140	160	15	28	24	M10	175	192	177		100	331	386	60	50		45		227	252		12	12	31	27	8	8	63	73	75	18	KK16 M25	4L	no	-0.5	j6	k6	k6	H7	on R.	on R.	on R.	KK16 M25
K21R 100 LX4,8	A250	C160	C200	140	160	11	28	28	M10	171	188	196		100	357	425	60	60		32		237	262	236	12	12	31	31	8	8	63	102	77	20	KK16 M25	4L	no	-0.5	j6	k6	k6	H7	on R.	on R.	on R.	KK16 M25
K21R 112 M2	A250	C160	C200	140	190	18	28	28	M10	180	224	196		112	357	425	60	60		50		249	262	236	12	12	31	31	8	8	70	95	77	20	KK16 M25	4L	no	-0.5	j6	k6	k6	H7	on R.	on R.	on R.	KK16 M25
K21R 112 M6,8	A250	C160	C200	140	190	18	28	28	M10	180	224	196		112	391	459	60	60		50		249	262	236	12	12	31	31	8	8	70	95	77	20	KK16 M25	4L	no	-0.5	j6	k6	k6	H7	on R.	on R.	on R.	KK16 M25
K21R 112 MX2	A250	C160	C200	140	190	18	28	28	M10	180	224	196		112	391	459	60	60		50		249	262	236	12	12	31	31	8	8	70	129	77	20	KK16 M25	4L	no	-0.5	j6	k6	k6	H7	on R.	on R.	on R.	KK16 M25
K21R 112 M4	A250	C160	C200	140	190	18	28	28	M10	180	224	196		112	391	459	60	60		50		249	262	236	12	12	31	31	8	8	70	129	77	20	KK16 M25	4L	no	-0.5	j6	k6	k6	H7	on R.	on R.	on R.	KK16 M25
K21R 132 S2T	A300	C160	C200	140	216	18	38	28	M10	180	256	196		132	430	498	80	60		50		269	299	275	12	12	41	31	10	8	89	129	96	20	KK16 M25	4L	no	-0.5	j6	k6	k6	H7	on R.	on R.	on R.	KK16 M25
K21R 132 S4T	A300	C160	C200	140	216	18	38	28	M10	180	256	196		132	460	528	80	60		50		269	299	275	12	12	41	31	10	8	89	129	96	20	KK16 M25	4L	no	-0.5	j6	k6	k6	H7	on R.	on R.	on R.	KK16 M25
K21R 132 S2	A300	C160	C200	140	216	16	38	32	M12	180	256	217	178	132	459	542	80	80	55	50	168	310	328	291	12	12	41	35	10	10
