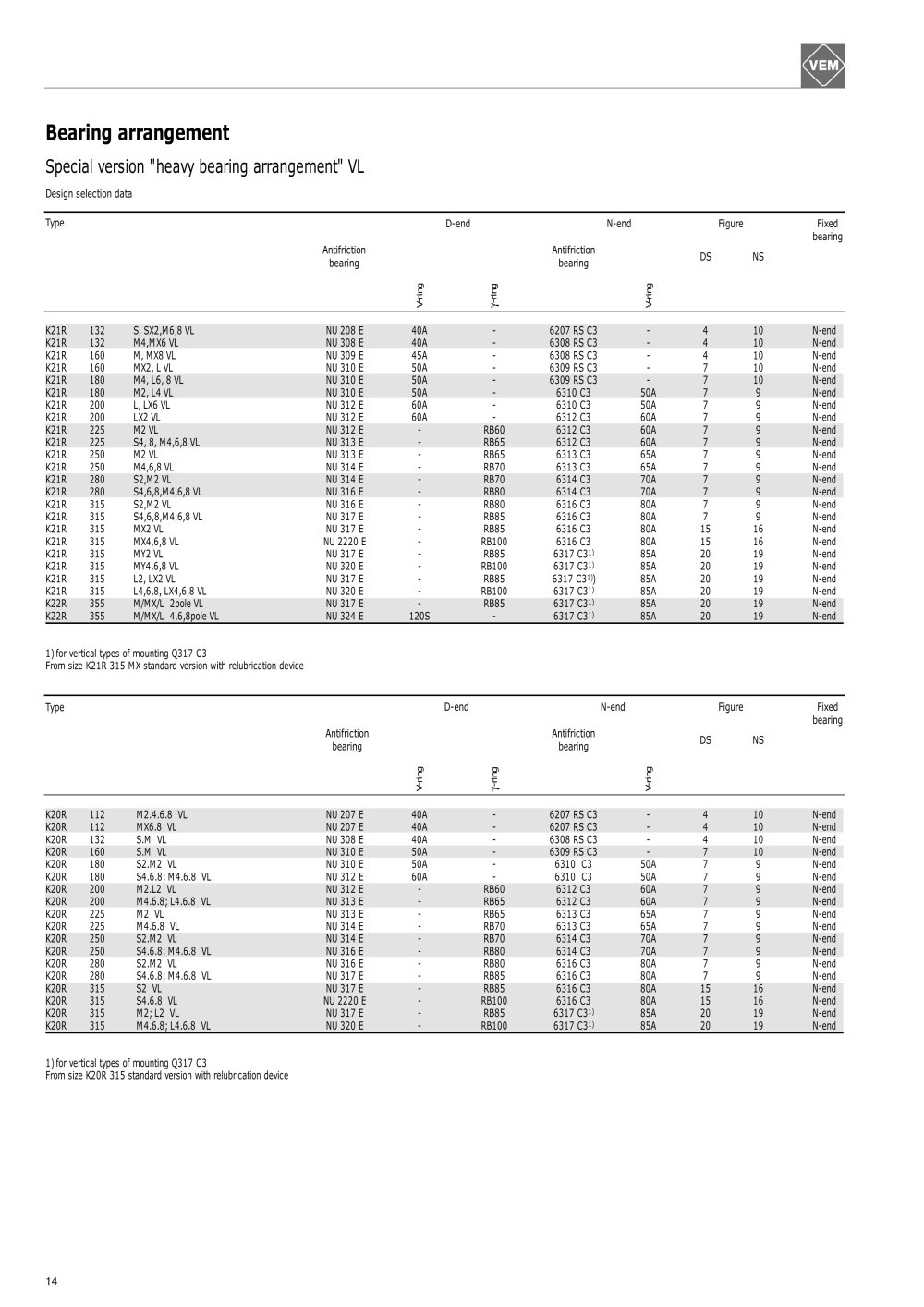

			Bearing supplier arrangement Special version "heavy bearing arrangement" VL Design selection data

		Type D-end N-end Figure Fixed bearing Antifriction Antifriction _n„ ..„

			K21R 132 S, SX2,M6,8 VL NU 208 E 40A - 6207 RS C3 - 4 10 N-end K21R 132 M4,MX6 VL NU 308 E 40A - 6308 RS C3 - 4 10 N-end K21R 160 M, MX8 VL NU 309 E 45A - 6308 RS C3 - 4 10 N-end K21R 160 MX2, L VL NU 310 E 50A - 6309 RS C3 - 7 10 N-end K21R 180 M4, L6,8 VL NU 310 E 50A - 6309 RS C3 - 7 10 N-end K21R 180 M2, L4 VL NU 310 E 50A - 6310 C3 50A 7 9 N-end K21R 200 L, LX6 VL NU 312 E 60A - 6310 C3 50A 7 9 N-end K21R 200 LX2 VL NU 312 E 60A - 6312 C3 60A 7 9 N-end K21R 225 M2 VL NU 312 E - RB60 6312 C3 60A 7 9 N-end K21R 225 S4,8, M4,6,8 VL NU 313 E - RB65 6312 C3 60A 7 9 N-end K21R 250 M2 VL NU 313 E - RB65 6313 C3 65A 7 9 N-end K21R 250 M4,6,8 VL NU 314 E - RB70 6313 C3 65A 7 9 N-end K21R 280 S2,M2 VL NU 314 E - RB70 6314 C3 70A 7 9 N-end K21R 280 S4,6,8,M4,6,8 VL NU 316 E - RB80 6314 C3 70A 7 9 N-end K21R 315 S2,M2 VL NU 316 E - RB80 6316 C3 80A 7 9 N-end K21R 315 S4,6,8,M4,6,8 VL NU 317 E - RB85 6316 C3 80A 7 9 N-end K21R 315 MX2 VL NU 317 E - RB85 6316 C3 80A 15 16 N-end K21R 315 MX4,6,8 VL NU 2220 E - RB100 6316 C3 80A 15 16 N-end K21R 315 MY2 VL NU 317 E - RB85 6317 C3¹) 85A 20 19 N-end K21R 315 MY4,6,8 VL NU 320 E - RB100 6317 C3¹) 85A 20 19 N-end K21R 315 L2, LX2 VL NU 317 E - RB85 6317 C3¹)) 85A 20 19 N-end K21R 315 L4,6,8, LX4,6,8 VL NU 320 E - RB100 6317 C3¹) 85A 20 19 N-end K22R 355 M/MX/L 2pole VL NU 317 E - RB85 6317 C3¹) 85A 20 19 N-end K22R 355 M/MX/L 4,6,8pole VL_NU 324 E_12)S_-_6317 C3¹)_85A_20_19_N-end

			1) for vertical types of mounting Q317 C3 From size K21R 315 MX standard version with relubrication device

		Type D-end N-end Figure Fixed bearing Antifriction Antifriction

			K20R 112 M2.4.6.8 VL NU 207 E 40A - 6207 RS C3 - 4 10 N-end K20R 112 MX6.8 VL NU 207 E 40A - 6207 RS C3 - 4 10 N-end K20R 132 S.M VL NU 308 E 40A - 6308 RS C3 - 4 10 N-end K20R 160 S.M VL NU 310 E 50A - 6309 RS C3 - 7 10 N-end K20R 180 S2.M2 VL NU 310 E 50A - 6310 C3 50A 7 9 N-end K20R 180 S4.6.8; M4.6.8 VL NU 312 E 60A - 6310 C3 50A 7 9 N-end K20R 200 M2.L2 VL NU 312 E - RB60 6312 C3 60A 7 9 N-end K20R 200 M4.6.8; L4.6.8 VL NU 313 E - RB65 6312 C3 60A 7 9 N-end K20R 225 M2 VL NU 313 E - RB65 6313 C3 65A 7 9 N-end K20R 225 M4.6.8 VL NU 314 E - RB70 6313 C3 65A 7 9 N-end K20R 250 S2.M2 VL NU 314 E - RB70 6314 C3 70A 7 9 N-end K20R 250 S4.6.8; M4.6.8 VL NU 316 E - RB80 6314 C3 70A 7 9 N-end K20R 280 S2.M2 VL NU 316 E - RB80 6316 C3 80A 7 9 N-end K20R 280 S4.6.8; M4.6.8 VL NU 317 E - RB85 6316 C3 80A 7 9 N-end K20R 315 S2 VL NU 317 E - RB85 6316 C3 80A 15 16 N-end K20R 315 S4.6.8 VL NU 2220 E - RB100 6316 C3 80A 15 16 N-end K20R 315 M2; L2 VL NU 317 E - RB85 6317 C3¹) 85A 20 19 N-end K20R 315 M4.6.8; L4.6.8 VL_NU 320 E_-_RB100_6317 C3¹)_85A_20_19_N-end

			1) for vertical types of mounting Q317 C3 From size K20R 315 standard version with relubrication device

				14
