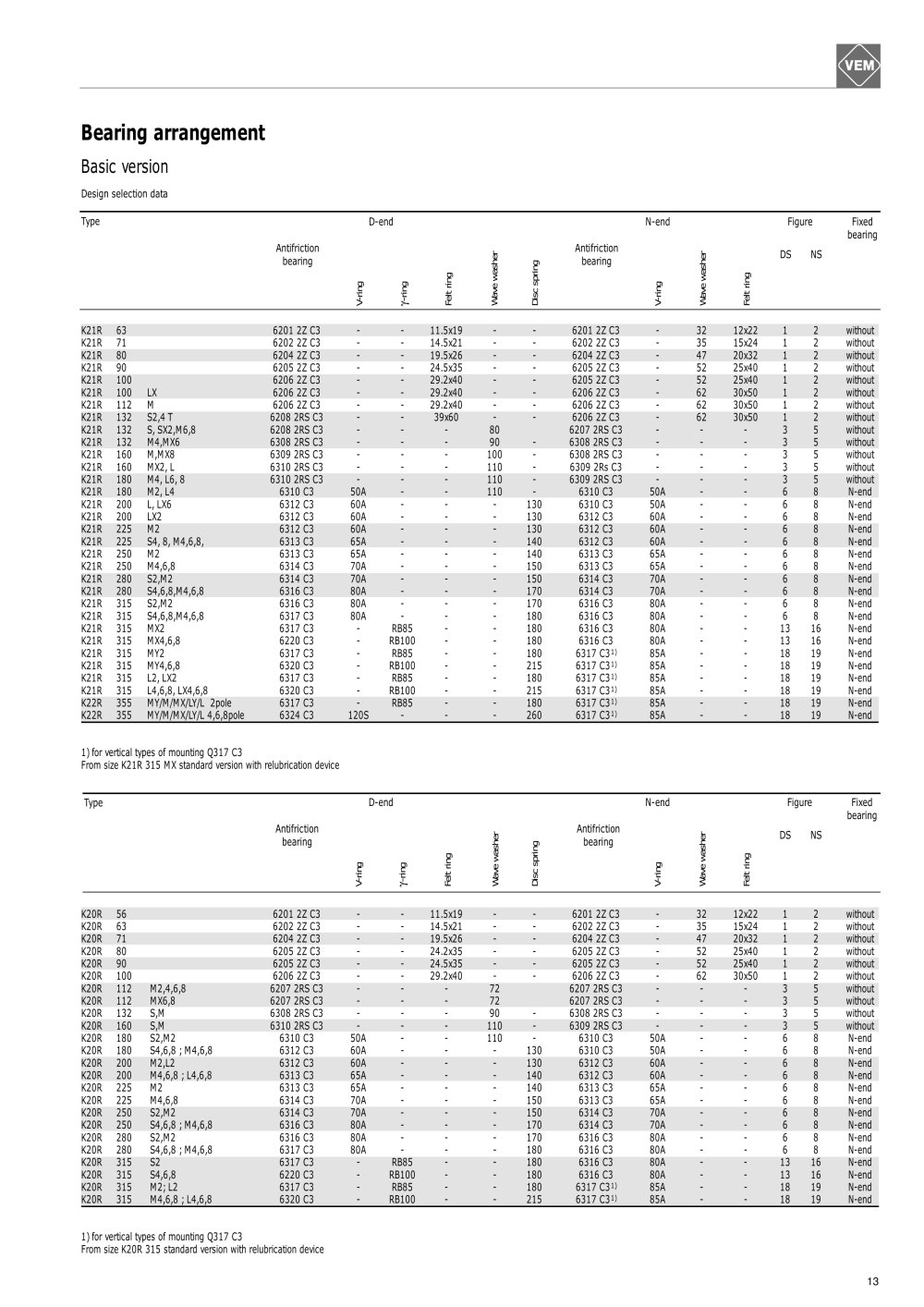

Professional bearing arrangement

Basic version

Design selection data

Type D-end N-end Figure Fixed

bearing

Antifriction Antifriction _„ ...

K21R 63 6201 2Z C3 - - 11.5x19 - - 6201 2Z C3 - 32 12x22 1 2 without

K21R 71 6202 2Z C3 - - 14.5x21 - - 6202 2Z C3 - 35 15x24 1 2 without

K21R 80 6204 2Z C3 - - 19.5x26 - - 6204 2Z C3 - 47 20x32 1 2 without

K21R 90 6205 2Z C3 - - 24.5x35 - - 6205 2Z C3 - 52 25x40 1 2 without

K21R 100 6206 2Z C3 - - 29.2x40 - - 6205 2Z C3 - 52 25x40 1 2 without

K21R 100 LX 6206 2Z C3 - - 29.2x40 - - 6206 2Z C3 - 62 30x50 1 2 without

K21R 112 M 6206 2Z C3 - - 29.2x40 - - 6206 2Z C3 - 62 30x50 1 2 without

K21R 132 S2,4 T 6208 2RS C3 - - 39x60 - - 6206 2Z C3 - 62 30x50 1 2 without

K21R 132 S,SX2,M6,8 6208 2RS C3 - - - 80 6207 2RS C3 - - - 3 5 without

K21R 132 M4,MX6 6308 2RS C3 - - - 90 - 6308 2RS C3 - - - 3 5 without

K21R 160 M,MX8 6309 2RS C3 - - - 100 - 6308 2RS C3 - - - 3 5 without

K21R 160 MX2,L 6310 2RS C3 - - - 110 - 6309 2Rs C3 - - - 3 5 without

K21R 180 M4,L6,8 6310 2RS C3 - - - 110 - 6309 2RS C3 - - - 3 5 without

K21R 180 M2,L4 6310 C3 50A - - 110 - 6310 C3 50A - - 6 8 N-end

K21R 200 L,LX6 6312 C3 60A - - - 130 6310 C3 50A - - 6 8 N-end

K21R 200 LX2 6312 C3 60A - - - 130 6312 C3 60A - - 6 8 N-end

K21R 225 M2 6312 C3 60A - - - 130 6312 C3 60A - - 6 8 N-end

K21R 225 S4,8,M4,6,8, 6313 C3 65A - - - 140 6312 C3 60A - - 6 8 N-end

K21R 250 M2 6313 C3 65A - - - 140 6313 C3 65A - - 6 8 N-end

K21R 250 M4,6,8 6314 C3 70A - - - 150 6313 C3 65A - - 6 8 N-end

K21R 280 S2,M2 6314 C3 70A - - - 150 6314 C3 70A - - 6 8 N-end

K21R 280 S4,6,8,M4,6,8 6316 C3 80A - - - 170 6314 C3 70A - - 6 8 N-end

K21R 315 S2,M2 6316 C3 80A - - - 170 6316 C3 80A - - 6 8 N-end

K21R 315 S4,6,8,M4,6,8 6317 C3 80A - - - 180 6316 C3 80A - - 6 8 N-end

K21R 315 MX2 6317 C3 - RB85 - - 180 6316 C3 80A - - 13 16 N-end

K21R 315 MX4,6,8 6220 C3 - RB100 - - 180 6316 C3 80A - - 13 16 N-end

K21R 315 MY2 6317 C3 - RB85 - - 180 6317 C3¹⁾ 85A - - 18 19 N-end

K21R 315 MY4,6,8 6320 C3 - RB100 - - 215 6317 C3¹⁾ 85A - - 18 19 N-end

K21R 315 L2,LX2 6317 C3 - RB85 - - 180 6317 C3¹⁾ 85A - - 18 19 N-end

K21R 315 L4,6,8,LX4,6,8 6320 C3 - RB100 - - 215 6317 C3¹⁾ 85A - - 18 19 N-end

K22R 355 MY/M/MX/LY/L 2pole 6317 C3 - RB85 - - 180 6317 C3¹⁾ 85A - - 18 19 N-end

K22R 355 MY/M/MX/LY/L 4,6,8pole 6324 C3 120S -_-_- 260 6317 C3¹⁾ 85A -_- 18 19 N-end

1) for vertical types of mounting Q317 C3

From size K21R 315 MX standard version with relubrication device

Type D-end N-end Figure Fixed

bearing

Antifriction Antifriction

K20R 56 6201 2Z C3 - - 11.5x19 - - 6201 2Z C3 - 32 12x22 1 2 without

K20R 63 6202 2Z C3 - - 14.5x21 - - 6202 2Z C3 - 35 15x24 1 2 without

K20R 71 6204 2Z C3 - - 19.5x26 - - 6204 2Z C3 - 47 20x32 1 2 without

K20R 80 6205 2Z C3 - - 24.2x35 - - 6205 2Z C3 - 52 25x40 1 2 without

K20R 90 6205 2Z C3 - - 24.5x35 - - 6205 2Z C3 - 52 25x40 1 2 without

K20R 100 6206 2Z C3 - - 29.2x40 - - 6206 2Z C3 - 62 30x50 1 2 without

K20R 112 M2,4,6,8 6207 2RS C3 - - - 72 6207 2RS C3 - - - 3 5 without

K20R 112 MX6,8 6207 2RS C3 - - - 72 6207 2RS C3 - - - 3 5 without

K20R 132 S,M 6308 2RS C3 - - - 90 - 6308 2RS C3 - - - 3 5 without

K20R 160 S,M 6310 2RS C3 - - - 110 - 6309 2RS C3 - - - 3 5 without

K20R 180 S2,M2 6310 C3 50A - - 110 - 6310 C3 50A - - 6 8 N-end

K20R 180 S4,6,8 ; M4,6,8 6312 C3 60A - - - 130 6310 C3 50A - - 6 8 N-end

K20R 200 M2,L2 6312 C3 60A - - - 130 6312 C3 60A - - 6 8 N-end

K20R 200 M4,6,8 ; L4,6,8 6313 C3 65A - - - 140 6312 C3 60A - - 6 8 N-end

K20R 225 M2 6313 C3 65A - - - 140 6313 C3 65A - - 6 8 N-end

K20R 225 M4,6,8 6314 C3 70A - - - 150 6313 C3 65A - - 6 8 N-end

K20R 250 S2,M2 6314 C3 70A - - - 150 6314 C3 70A - - 6 8 N-end

K20R 250 S4,6,8 ; M4,6,8 6316 C3 80A - - - 170 6314 C3 70A - - 6 8 N-end

K20R 280 S2,M2 6316 C3 80A - - - 170 6316 C3 80A - - 6 8 N-end

K20R 280 S4,6,8 ; M4,6,8 6317 C3 80A - - - 180 6316 C3 80A - - 6 8 N-end

K20R 315 S2 6317 C3 - RB85 - - 180 6316 C3 80A - - 13 16 N-end

K20R 315 S4,6,8 6220 C3 - RB100 - - 180 6316 C3 80A - - 13 16 N-end

K20R 315 M2; L2 6317 C3 - RB85 - - 180 6317 C3¹⁾ 85A - - 18 19 N-end

K20R 315 M4,6,8 ; L4,6,8_6320 C3_- RB100 -_- 215 6317 C3¹⁾ 85A -_- 18 19 N-end

1) for vertical types of mounting Q317 C3

From size K20R 315 standard version with relubrication device
