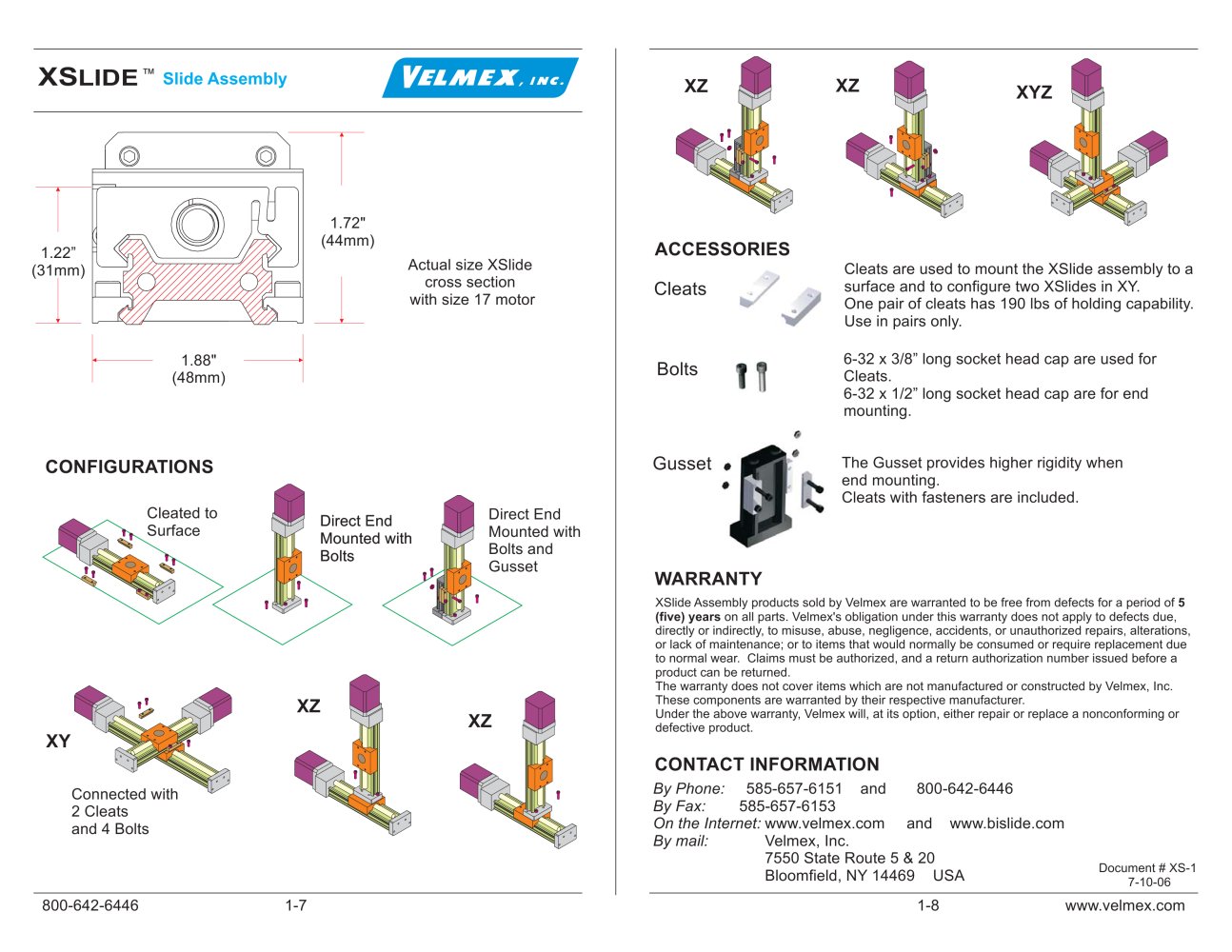

XSLIDE™ SlideAssemb
XYZ
ACCESSORIES
Actual size XSIIde
cross section with size 17 motor
Cleats are used to mount the XSIIde assembly to a surface and to configure two XSIIdes In XY. One pair of cleats has 190 lbs of holding capability. Use in pairs only.
Cleats
y
6-32 x 3/8" long socket head cap are used for Cleats.
6-32 x 1/2" long socket head cap are for end mounting.
1.88" (48mm)
The Gusset provides higher rigidity when end mounting.
Cleats with fasteners are Included.
CONFIGURATIONS
WARRANTY
XSIide Assembly products sold by Velmex are warranted to be free from defects for a period of 5 (five) years on all parts. Velmex's obligation under this warranty does not apply to defects due, directly or indirectly, to misuse, abuse, negligence, accidents, or unauthorized repairs, alterations, or lack of maintenance; or to items that would normally be consumed or require replacement due to normal wear. Claims must be authorized, and a return authorization number issued before a product can be returned.
The warranty does not cover items which are not manufactured or constructed by Velmex, Inc. These components are warranted by their respective manufacturer.
Under the above warranty, Velmex will, at its option, either repair or replace a nonconforming or defective product.
CONTACT INFORMATION
By Phone: 585-657-6151 and 800-642-6446
By Fax: 585-657-6153
On the Internet: www.velmex.com
and www.blsllde.com
By mail: Velmex, Inc.
7550 State Route 5 & 20 Bloomfield, NY 14469 USA
Document #XS-1 7-10-06
