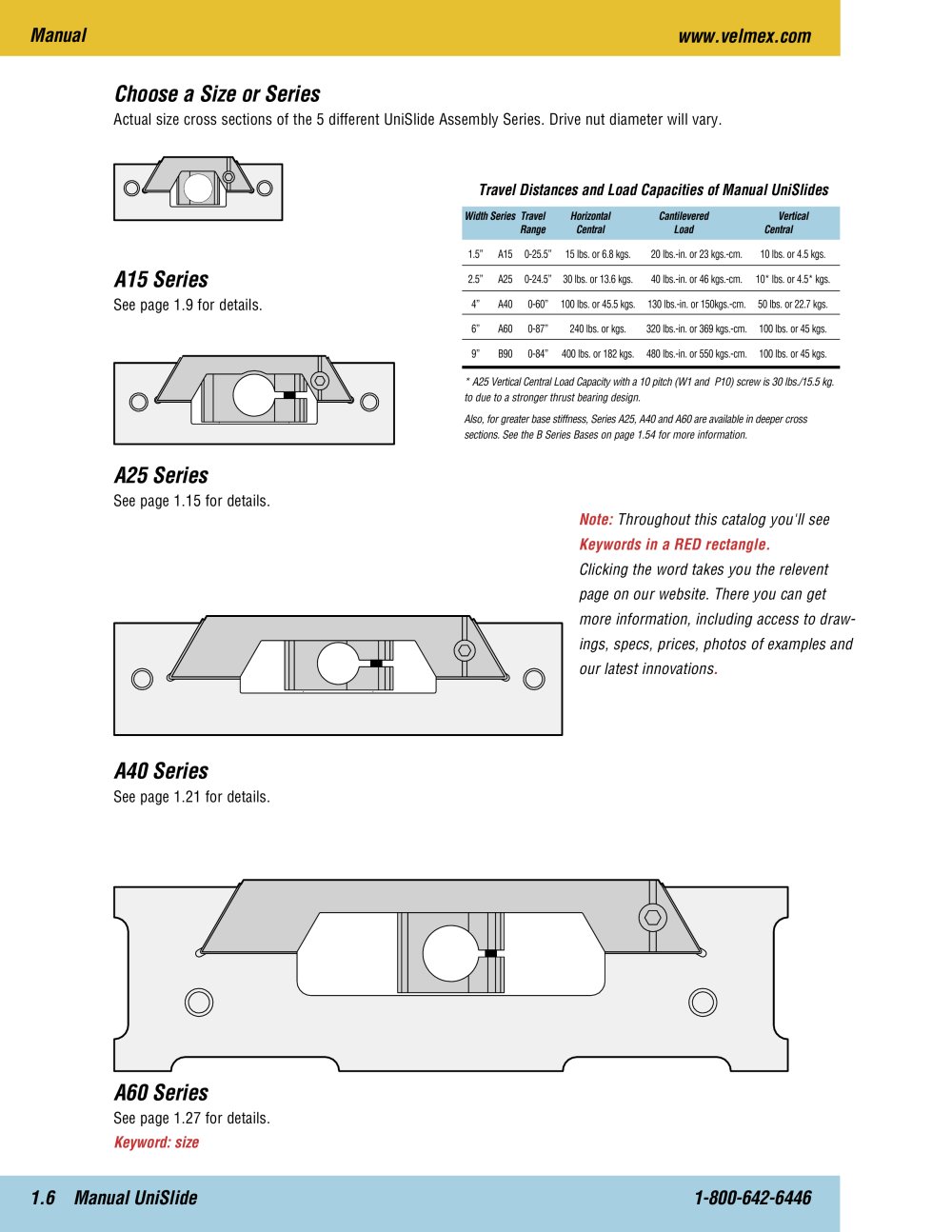

| | | Choose a Size or Series Actual size cross sections of the 5 different UniSlide Assembly Series. Drive nut diameter will vary. | | |
| | | |
| | | Travel Distances and Load Capacities of Manual UniSlides | | |
| | | |
| | | | | | | | | | | | | | Width Series Travel Range | Horizontal Central | Cantilevered Load | Vertical Central | | | | 1.5" | A15 | 0-25.5" | 15 lbs. or 6.8 kgs. | 20 lbs.-ln. or 23 kgs.-cm. | 10 lbs. or 4.5 kgs. | | | | 2.5" | A25 | 0-24.5" | 30 lbs. or 13.6 kgs. | 40 lbs.-ln. or 46 kgs.-cm. | 10* lbs. or 4.5* kgs. | | | | 4" | A40 | 0-60" | 100 lbs. or 45.5 kgs. | 130 lbs.-ln. or 150kgs.-cm. | 50 lbs. or 22.7 kgs. | | | | 6" | A60 | 0-87" | 240 lbs. or kgs. | 320 lbs.-ln. or 369 kgs.-cm. | 100 lbs. or 45 kgs. | | | | 9" | B90 | 0-84" | 400 lbs. or 182 kgs. | 480 lbs.-ln. or 550 kgs.-cm. | 100 lbs. or 45 kgs. | | | | | | | | | | | | | |
| | | A15 Series See page 1.9 for details. | | |
| | | |
| | | | | |
| | | |
| | | * A25 Vertical Central Load Capacity with a 10 pitch (W1 and P10) screw is 30 lbs/15.5kg. to due to a stronger thrust bearing manufacturer design. Also, for greater base stiffness, Series A25, A40 andA60 are available in deeper cross sections. See the B Series Bases on page 1.54 for more information. | | |
| | | |
| | | |
| | | A25 Series See page 1.15 for details. | | |
| | | |
| | | Note: Throughout this catalog you'll see Keywords in a RED rectangle. Clicking the word takes you the relevent page on our website. There you can get more information, including access to drawings, specs, prices, photos of examples and our latest innovations. | | |
| | | |
| | | A40 Series See page 1.21 for details. | | |
| | | |
| | | I_C _C \ ABO Series See page 1.27 for details. Keyword: size | | |
| | | |
