Manual
www.velmex.com

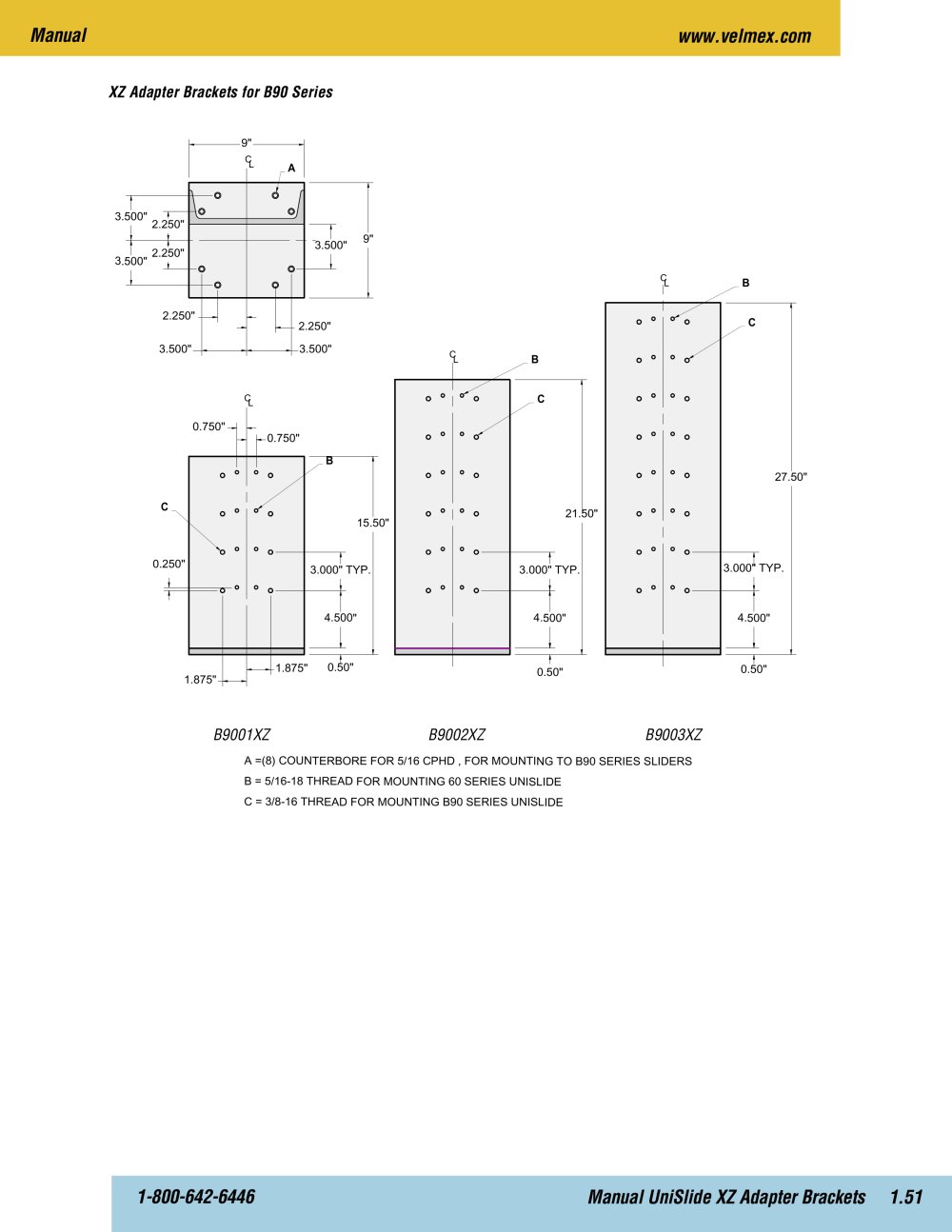

XZ Adapter Brackets for B90 Series
3.500"
3.500"
27.50"
B9001XZ
B9002XZ
B9003XZ
A =(8) COUNTERBORE FOR 5/16 CPHD , FOR MOUNTING TO B90 SERIES SLIDERS B = 5/16-18 THREAD FOR MOUNTING 60 SERIES UNISLIDE C = 3/8-16 THREAD FOR MOUNTING B90 SERIES UNISLIDE
Manual UniSlide XZ Adapter Brackets 1.51
1-800-642-6446
