Manual

www.velmex.com

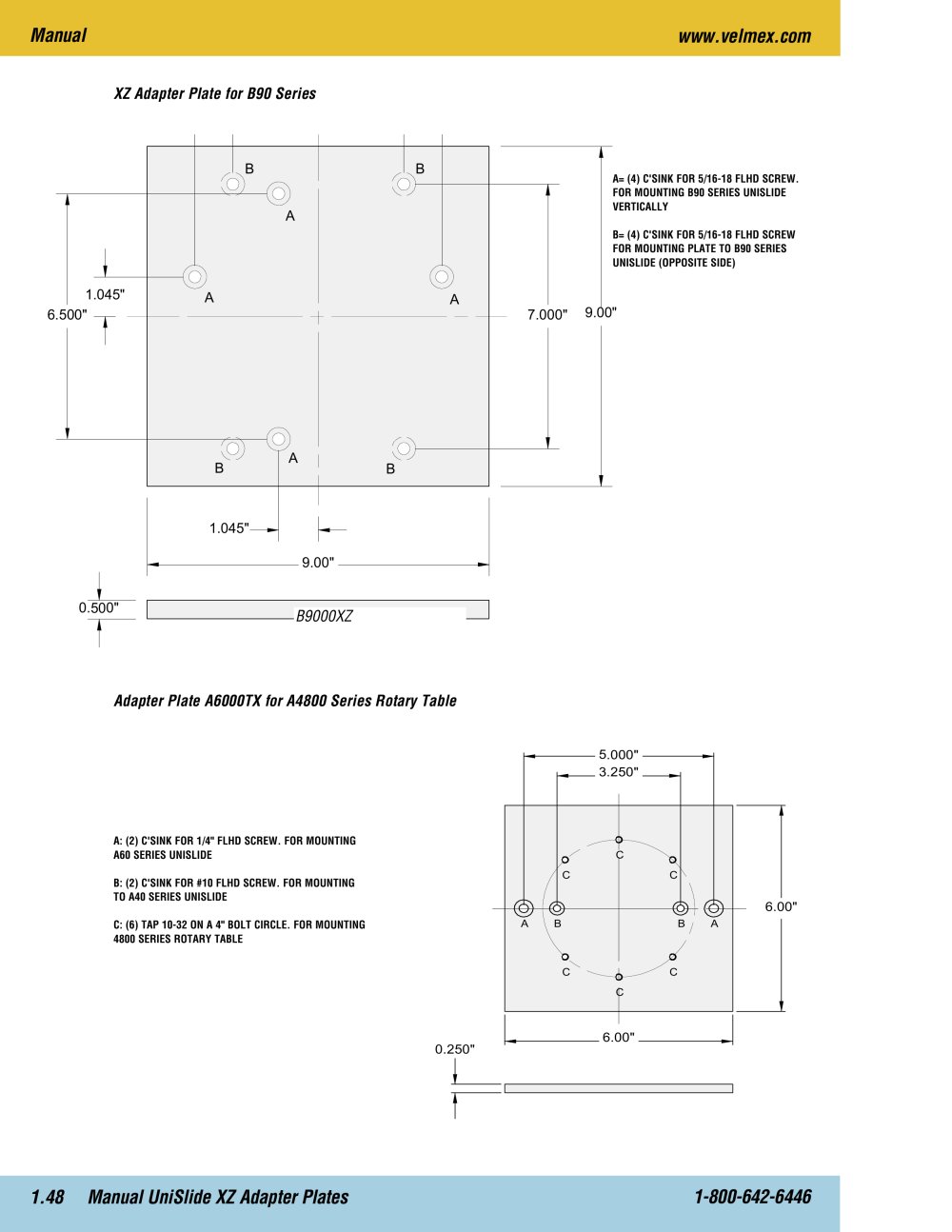

XZ Adapter Plate for B90 Series

A= (4) C'INDUSTRIAL SINK FOR 5/16-18 FLHD SCREW. FOR MOUNTING B90 SERIES UNISLIDE VERTICALLY

B= (4) C'SINK FOR 5/16-18 FLHD SCREW FOR MOUNTING PLATE TO B90 SERIES UNISLIDE (OPPOSITE SIDE)

6.500"

Adapter Plate A6000TX for A4800 Series Rotary table

-5.000"-.3.250".

A: (2) C'SINK FOR 1/4" FLHD SCREW. FOR MOUNTING A60 SERIES UNISLIDE

B: (2) C'SINK FOR #10 FLHD SCREW. FOR MOUNTING TO A40 SERIES UNISLIDE

C: (6) TAP 10-32 ON A 4" BOLT CIRCLE. FOR MOUNTING 4800 SERIES ROTARY TABLE

6.00"

A \ B

B I A

C ^—^ C

6.00"

0.250"

1.48 Manual UnlSllde XZ Adapter Plates

1-800-642-6446
