Manual

www.velmex.com

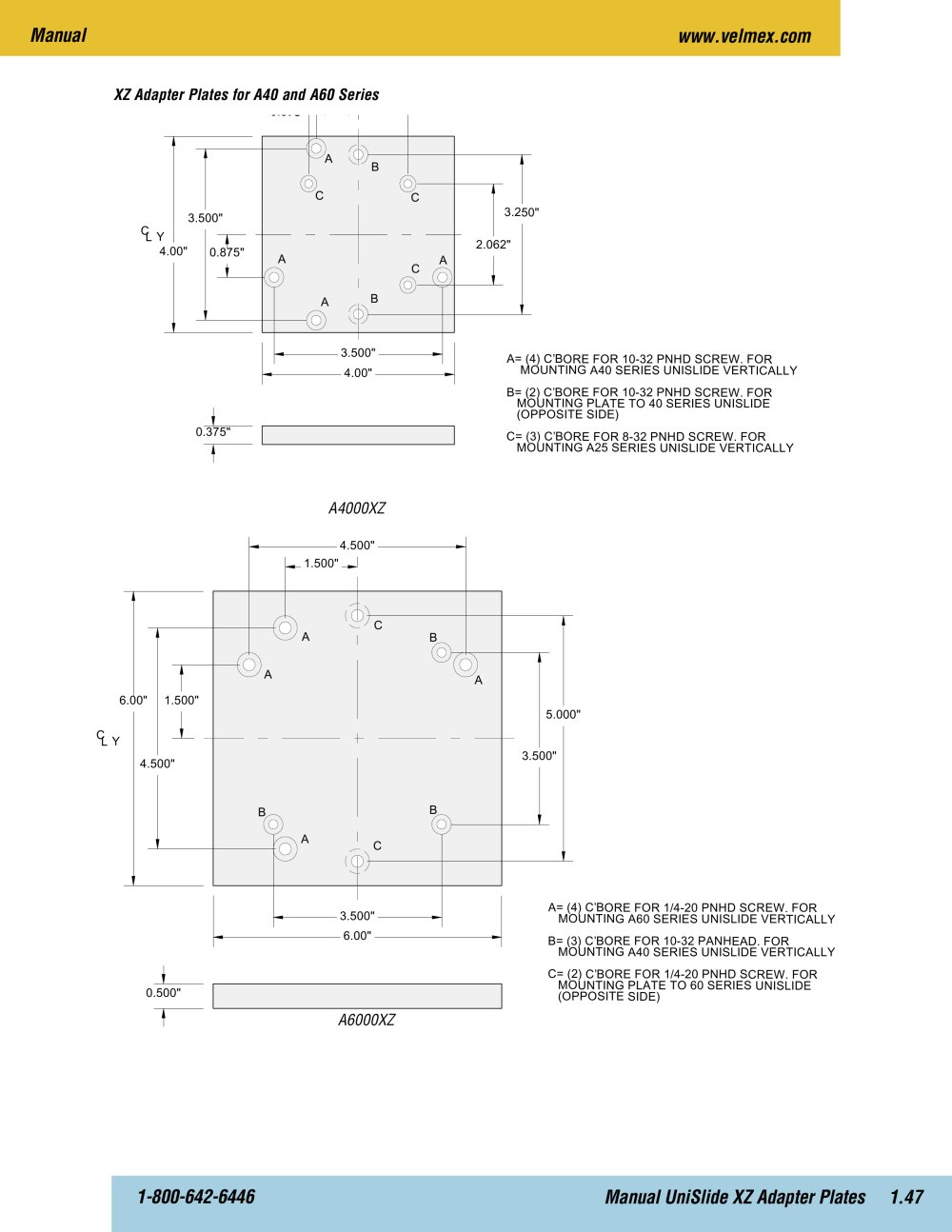

XZ Adapter Plates for A40 and A60 Series

3.250" 2.062"

4.00"

A= (4) C'BORE FOR 10-32 PNHD SCREW. FOR MOUNTING A40 SERIES UNISLIDE VERTICALLY

B= (2) C'BORE FOR 10-32 PNHD SCREW. FOR MOUNTING PLATE TO 40 SERIES UNISLIDE (OPPOSITE SIDE)

C= (3) C'BORE FOR 8-32 PNHD SCREW.FOR MOUNTING A25 SERIES UNISLIDE VERTICALLY

0.375"

A4000XZ

6.00"

5.000"

A= (4) C'BORE FOR 1/4-20 PNHD SCREW. FOR MOUNTING A60 SERIES UNISLIDE VERTICALLY

B= (3) C'BORE FOR 10-32 PANHEAD. FOR MOUNTING A40 SERIES UNISLIDE VERTICALLY

C= (2) C'BORE FOR 1/4-20 PNHD SCREW. FOR MOUNTING PLATE TO 60 SERIES UNISLIDE (OPPOSITE SIDE)

0.500"

A6000XZ

Manual UnlSllde XZ Adapter Plates 1.47

1-800-642-6446
