Manual

www.velmex.com

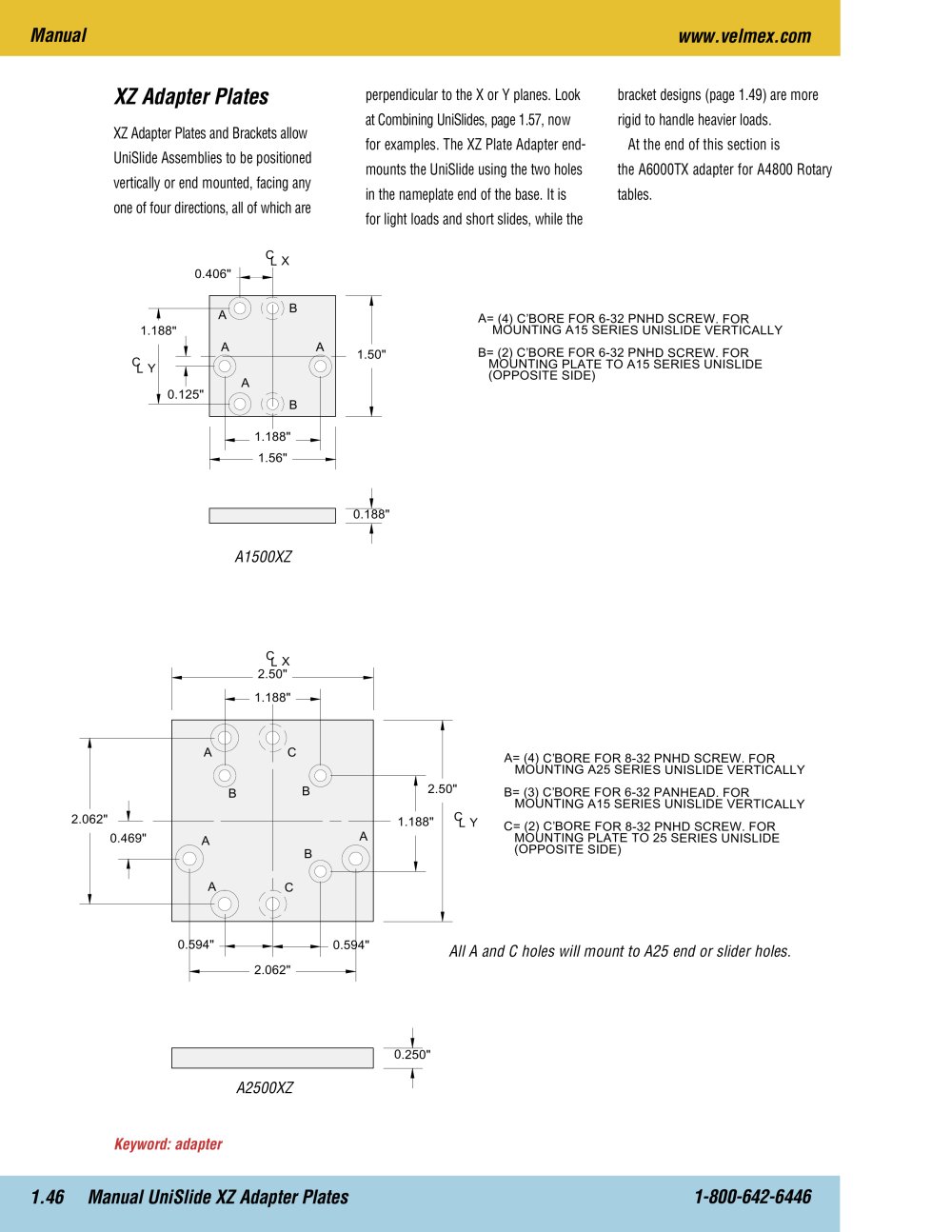

XZ Adapter Plates

XZ Adapter Plates and Brackets allow UniSlide Assemblies to be positioned vertically or end mounted, facing any one of four directions, all of which are

perpendicular to the X or Y planes. Look at Combining UniSlides, page 1.57, now for examples. The XZ Plate Adapter end-mounts the UniSlide using the two holes in the nameplate end of the base. It is for light loads and short slides, while the

bracket designs (page 1.49) are more rigid to handle heavier loads. At the end of this section is the A6000TX adapter for A4800 Rotary tables.

9.X

0.406"

O) (Cp)b

a= (4) c'bore for 6-32 pnhd screw. for mounting a15 series unislide vertically

b= (2) c'bore for 6-32 pnhd screw. for mounting plate to a15 series unislide (opposite side)

1.188"

4- 1.50"

9.'

0.125"

6) (Ô) b

1.188" - 1.56" -

0.188"

A1500XZ

9. X 2.50"

a= (4) c'bore for 8-32 pnhd screw. for mounting a25 series unislide vertically

b= (3) c'bore for 6-32 panhead. for mounting a15 series unislide vertically

c= (2) c'bore for 8-32 pnhd screw.for mounting plate to 25 series unislide (opposite side)

2.062"

All A and C holes will mount to A25 end or slider holes.

,_. _i

\ 0.250"

A2500XZ f~

Keyword: adapter

1.46 Manual UniSlide XZ Adapter Plates

1-800-642-6446
