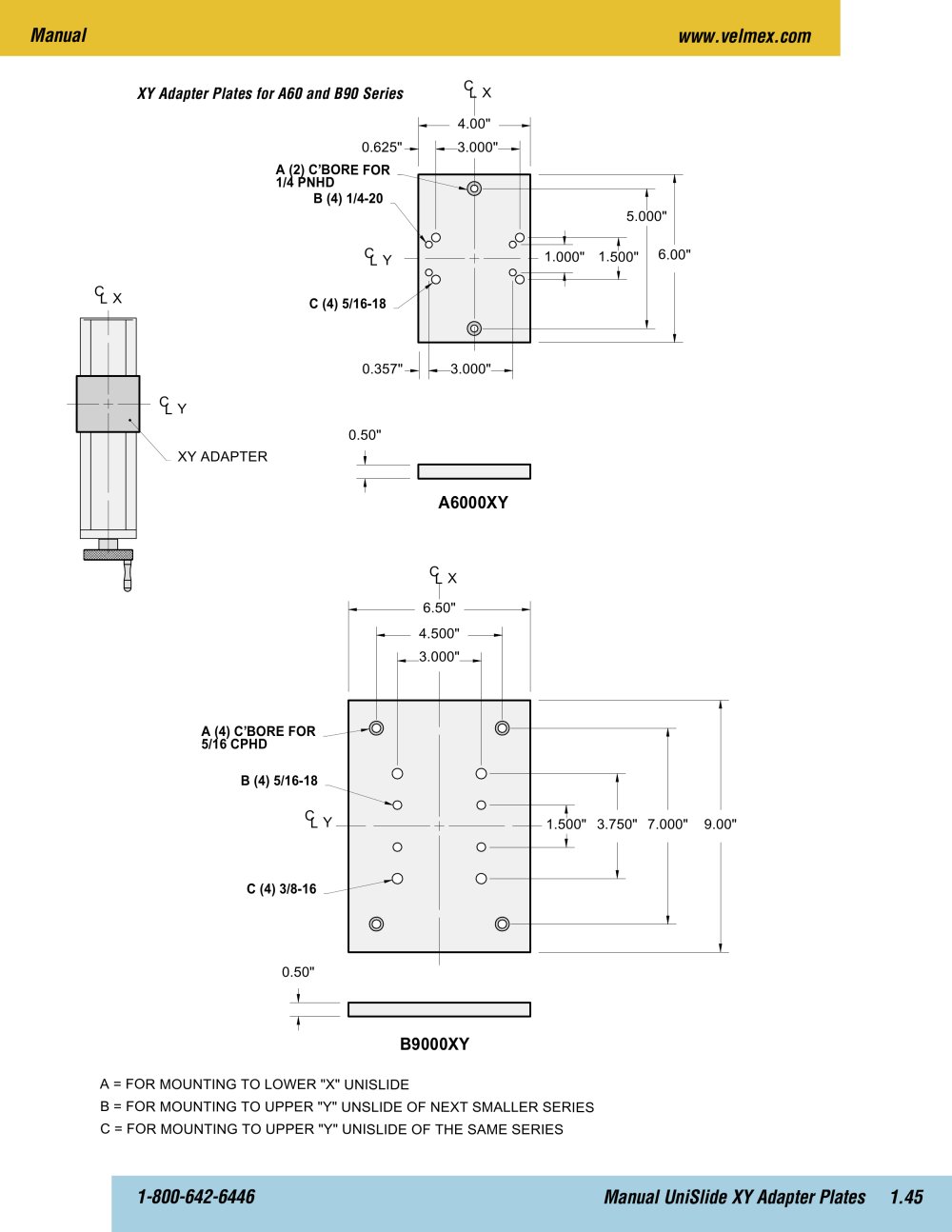

XY Adapter Plates for ABO and B90 Series
x
0.625"-j
A (2) C'BORE FOR 1/4 PNHD
B (4) 1/4-20
5.000" 6.00"
1.000" 1.500"
CUl
1
X
C (4) 5/16-18
0.357"
-3.000"-
<L
Y
0.50"
XY ADAPTER
T
A6000XY
A (4) C'BORE FOR 5/16 CPHD 1
B (4) 5/16-18
ClY
C(4) 3/8-16
0.50"
T
B9000XY
A = FOR MOUNTING TO LOWER "X" UNISLIDE
B = FOR MOUNTING TO UPPER "Y" UNSLIDE OF NEXT SMALLER SERIES C = FOR MOUNTING TO UPPER "Y" UNISLIDE OF THE SAME SERIES
Manual UniSlide XY Adapter Plates 1.45
