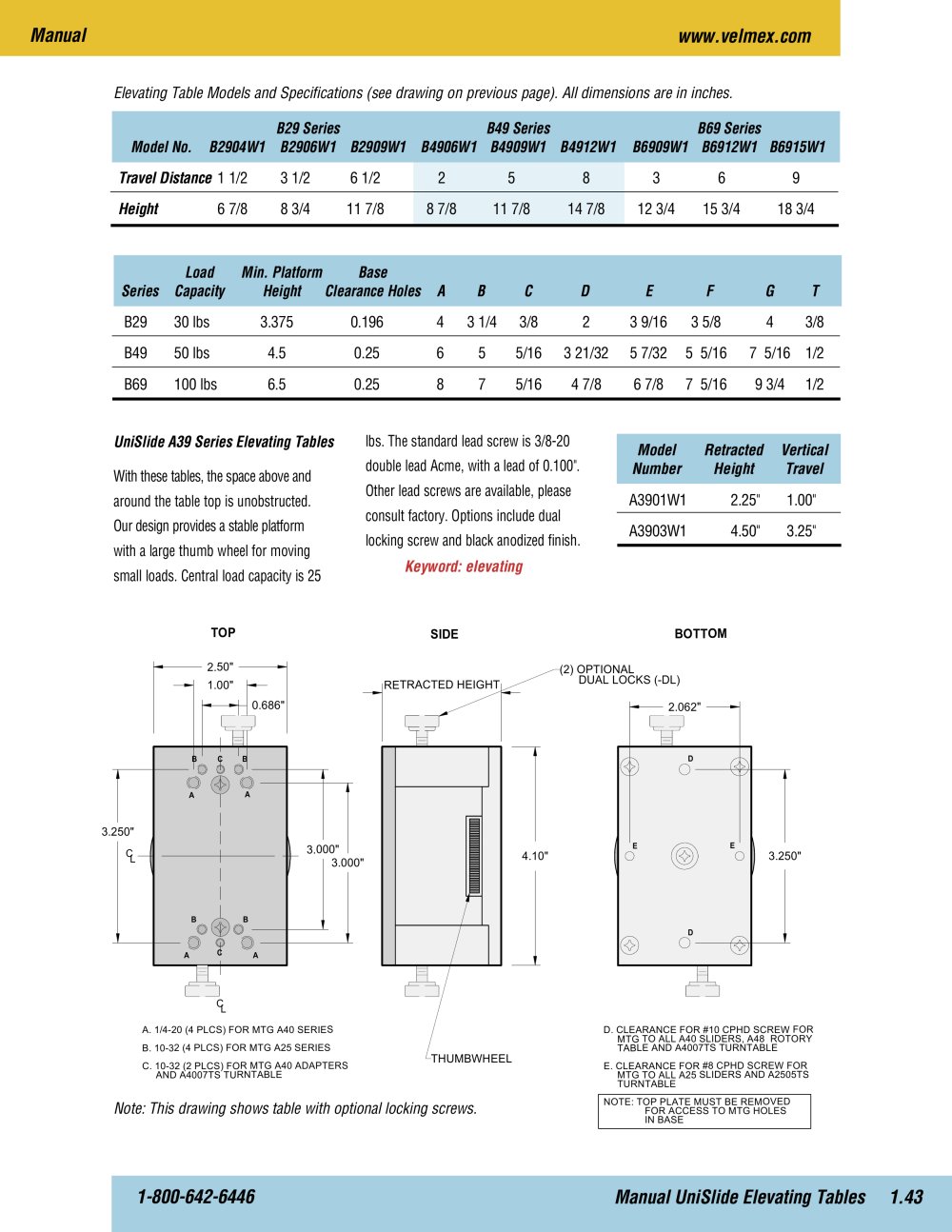

| | | Elevating Table Models and Specifications (see drawing on previous page). All dimensions are in inches. | | |
| | | |
| | | | | | | | | | | B29 Series Model No. B2904W1 B2906W1 B2909W1 | B49 Series B4906W1 B4909W1 B4912W1 | B69 Series B6909W1 B6912W1 B6915W1 | | | | Travel Distance 1 1/2 3 1/2 6 1/2 | 2 5 8 | 3 6 9 | | | | | | | | | | |
| | | |
| | | Height 6 7/8 8 3/4 11 7/8 8 7/8 11 7/8 14 7/8 12 3/4 15 3/4 18 3/4 | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | Series | Load Capacity | Min. Platform Height | Base Clearance Holes | A | B | C | D | E | F | G | T | | | | B29 | 30 lbs | 3.375 | 0.196 | 4 | 31/4 | 3/8 | 2 | 3 9/16 | 3 5/8 | 4 | 3/8 | | | | B49 | 50 lbs | 4.5 | 0.25 | 6 | 5 | 5/16 | 3 21/32 | 5 7/32 | 5 5/16 | 7 5/16 | 1/2 | | | | B69 | 100 lbs | 6.5 | 0.25 | 8 | 7 | 5/16 | 4 7/8 | 6 7/8 | 7 5/16 | 9 3/4 | 1/2 | | | | | | | | | | | | | | | | | | | |
| | | |
| | | lbs. The standard lead screw Is 3/8-20 double lead Acme, with a lead of 0.100". Other lead screws are available, please consult factory. Options Include dual locking screw and black anodlzed finish. Keyword: elevating | | |
| | | UniSlide A39 Series Elevating Tables With these tables, the space above and around the table top Is unobstructed. Our design provides a stable platform with a large thumb wheel for moving small loads. Central load capacity Is 25 | |
| | | Model Retracted Vertical Number Height Travel A3901W1 2.25" 1.00" A3903W1 4.50" 3.25" | | |
| | | |
| | | |
| | | |
| | | TOP | | |
| | | BOTTOM | | |
| | | SIDE | | |
| | | |
| | | |
| | | |
| | | (2) OPTIONAL DUAL LOCKS (-DL) | | |
| | | |
| | | 2.062" | | |
| | | |
| | | o-^ | | |
| | | |
| | | 3.250" | | |
| | | |
| | | O (@)) O | | |
| | | 3.000" 3.000" | | |
| | | 3.250" | | |
| | | |
| | | |
| | | |
| | | D | | |
| | | |
| | | O- | | |
| | | |
| | | A. 1/4-20 (4 PLCS) FOR MTG A40 SERIES B. 10-32 (4 PLCS) FOR MTG A25 SERIES C. 10-32 (2 PLCS) FOR MTG A40 ADAPTERS AND A4007TS TURNTABLE | | D. CLEARANCE FOR #10 CPHD SCREW FOR MTG TO ALL A40 SLIDERS, A48 ROTORY TABLE AND A4007TS TURNTABLE E. CLEARANCE FOR #8 CPHD SCREW FOR MTG TO ALL A25 SLIDERS AND A2505TS TURNTABLE | | |
| | | THUMBWHEEL | | |
| | | |
| | | |
| | | |
| | | NOTE: TOP PLATE MUST BE REMOVED FOR ACCESS TO MTG HOLES IN BASE | | |
| | | Note: This drawing shows table with optional locking screws. | | |
| | | |
| | | |
