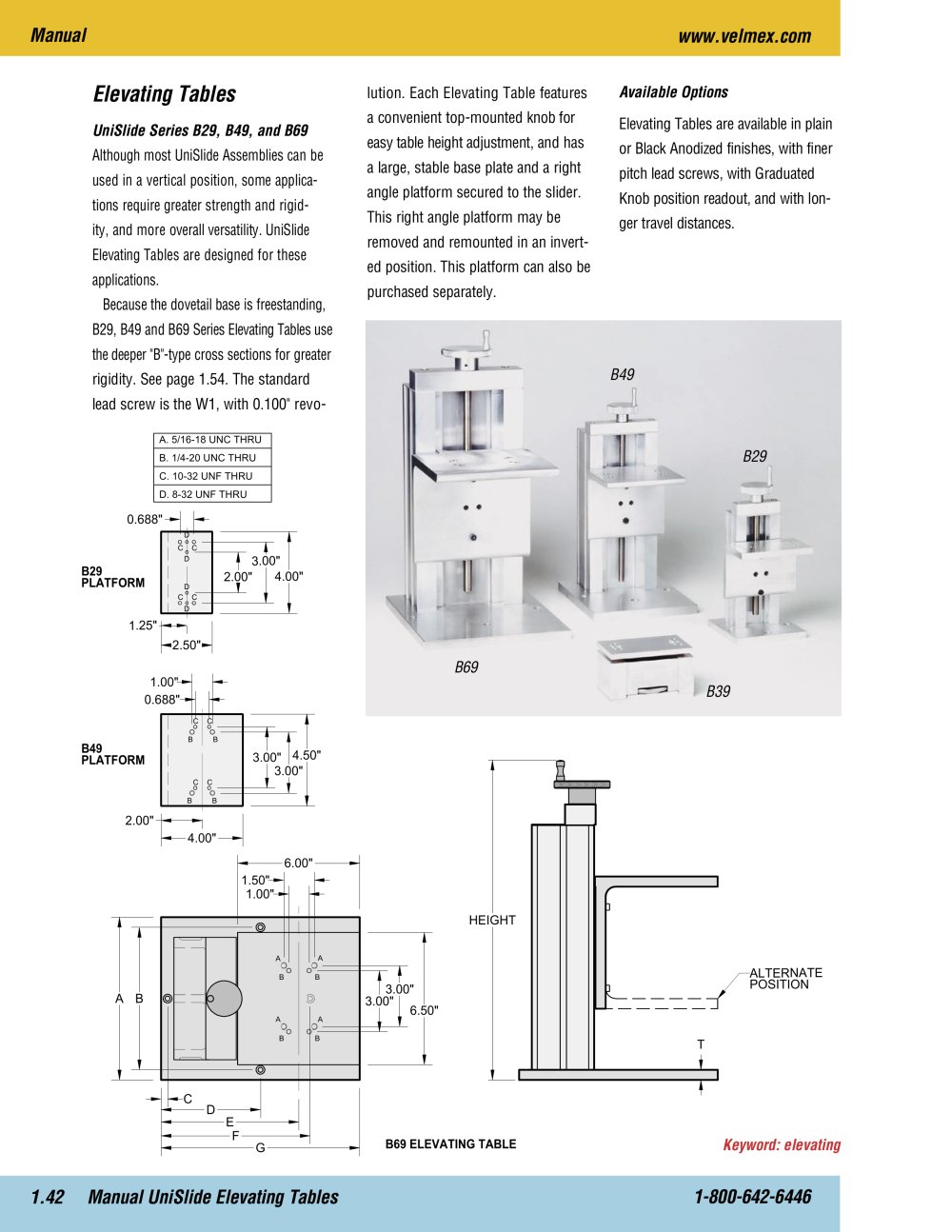

| | | Elevating Tables UniSlide Series B29, B49, and B69 Although most UniSlide Assemblies can be used in a vertical position, some applications require greater strength and rigidity, and more overall versatility. UniSlide Elevating Tables are designed for these applications. Because the dovetail base is freestanding, B29, B49 and B69 Series Elevating Tables use the deeper "B"-type cross sections for greater rigidity. See page 1.54. The standard lead screw is the W1, with 0.100" revo- | | Available Options Elevating Tables are available in plain or Black Anodized finishes, with finer pitch lead screws, with Graduated Knob position readout, and with longer travel distances. | | |
| | | lution. Each Elevating Table features a convenient top-mounted knob for easy table height adjustment, and has a large, stable base plate and a right angle platform secured to the slider. This right angle platform may be removed and remounted in an inverted position. This platform can also be purchased separately. | | |
