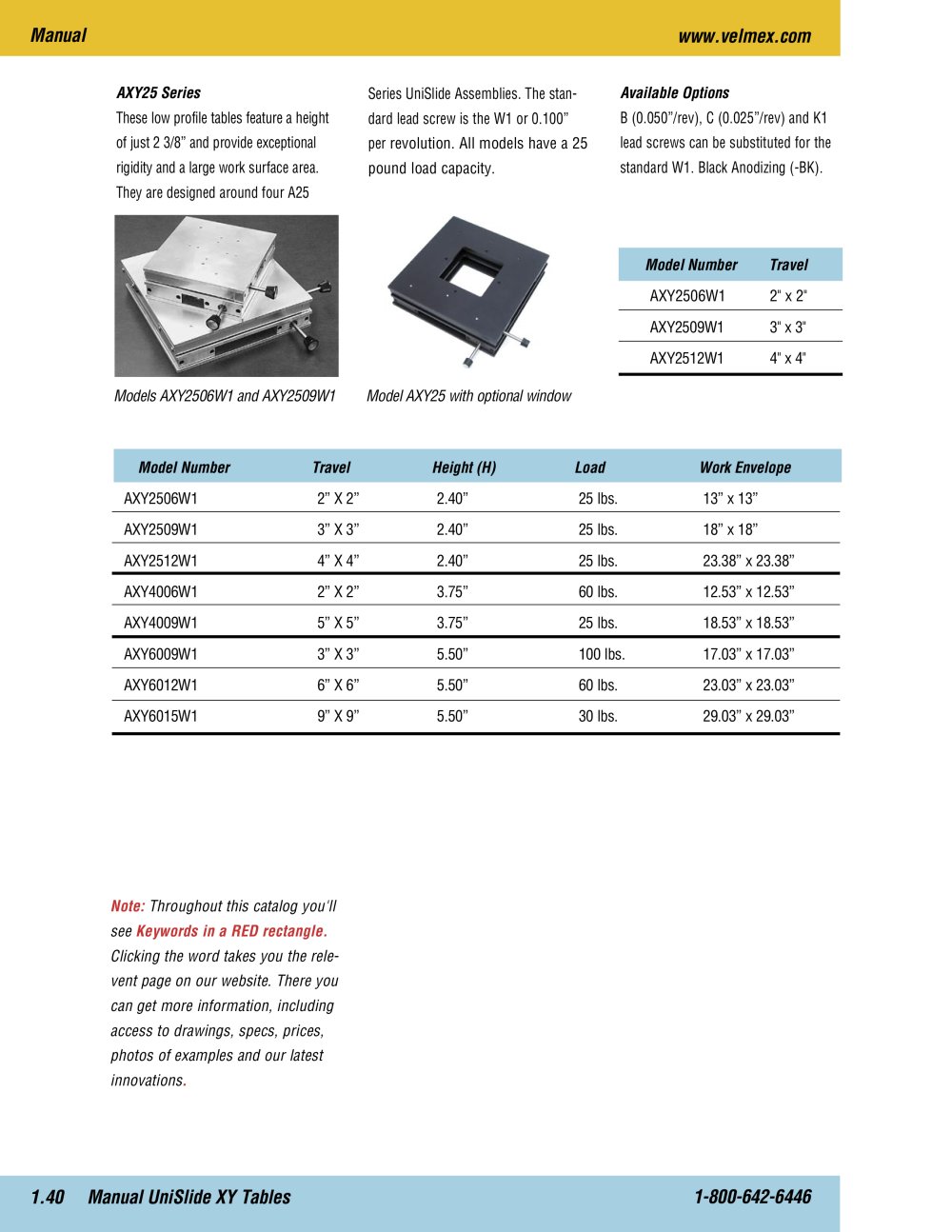

| | | AXY25 Series Series UniSlide Assemblies. The stan- Available Options These low profile tables feature a height dard lead screw is the W1 or 0.100" B (0.0507rev), C (0.0257rev) and K1 of just 2 3/8" and provide exceptional per revolution. All models have a 25 lead screws can be substituted for the rigidity and a large work surface area. pound load capacity. standard W1. Black Anodizing (-BK). They are designed around four A25 | | |
| | | |
| | | Model Number Travel AXY2506W1 2" x 2" AXY2509W1 3" x 3" AXY2512W1 4"x4" | | |
| | | |
| | | Models AXY2506W1 and AXY2509W1 Model AXY25 with optional window | | |
| | | |
| | | Model Number Travel Height (H) Load Work Envelope | | |
| | | |
| | | | | | | | | | | | | AXY2506W1 | 2"X2" | 2.40" | 25 lbs. | 13" x 13" | | | | AXY2509W1 | 3"X3" | 2.40" | 25 lbs. | 18" x 18" | | | | AXY2512W1 | 4" X 4" | 2.40" | 25 lbs. | 23.38" x 23.38" | | | | AXY4006W1 | 2"X2" | 3.75" | 60 lbs. | 12.53" x 12.53" | | | | AXY4009W1 | 5"X5" | 3.75" | 25 lbs. | 18.53" x 18.53" | | | | AXY6009W1 | 3"X3" | 5.50" | 100 lbs. | 17.03" x 17.03" | | | | AXY6012W1 | 6" X 6" | 5.50" | 60 lbs. | 23.03" x 23.03" | | | | AXY6015W1 | 9" X 9" | 5.50" | 30 lbs. | 29.03" x 29.03" | | | | | | | | | | | | |
| | | |
| | | Note: Throughout this catalog you'll see Keywords in a RED rectangle. Clicking the word takes you the relèvent page on our website. There you can get more information, including access to drawings, specs, prices, photos of examples and our latest innovations. | | |
| | | |
| | | 1.40 Manual UniSlide XY Tables | | |
