Manual
www.velmex.com

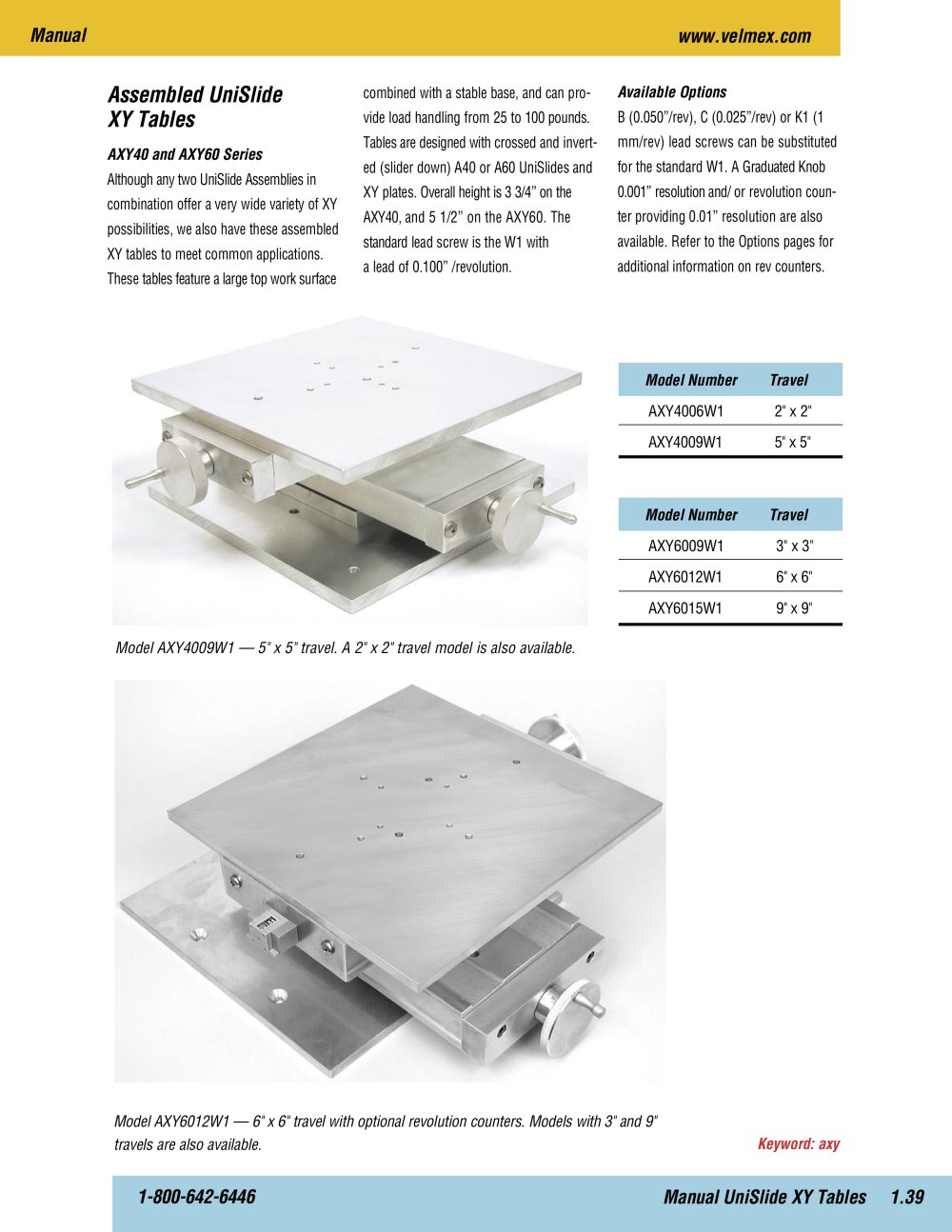

Assembled UniSlide XY Tables
AXY40 and AXY60 Series
Although any two UniSlide Assemblies In combination offer a very wide variety of XY possibilities, we also have these assembled XY tables to meet common applications. These tables feature a large top work surface
Available Options
B (0.050"/rev), C (0.025"/rev) or K1 (1 mm/rev) lead screws can be substituted for the standard W1. A Graduated Knob 0.001" resolution and/or revolution coun­ter providing 0.01" resolution are also available. Refer to the Options pages for additional Information on rev counters.
combined with a stable base, and can pro­vide load handling from 25 to 100 pounds. Tables are designed with crossed and Invert­ed (slider down) A40 or A60 UnlSlldes and XY plates. Overall height Is 3 3/4" on the AXY40, and 51/2" on the AXY60. The standard lead screw Is the W1 with a lead of 0.100"/revolution.
Model Number
Travel
AXY4006W1
2" x 2"
AXY4009W1
5"x5"
Model Number
Travel
AXY6009W1
3" x 3"
AXY6012W1
6"x6"
AXY6015W1
9"x9"
Model AXY4009W1 — 5" x 5" travel. A 2" x 2" travel model is also available.
Model AXY6012W1 — 6"x6" travel with optional revolution counters. Models with 3"and 9" travels are also available.
Keyword: axy
Manual UniSlide XY Tables 1.39
1-800-642-6446
