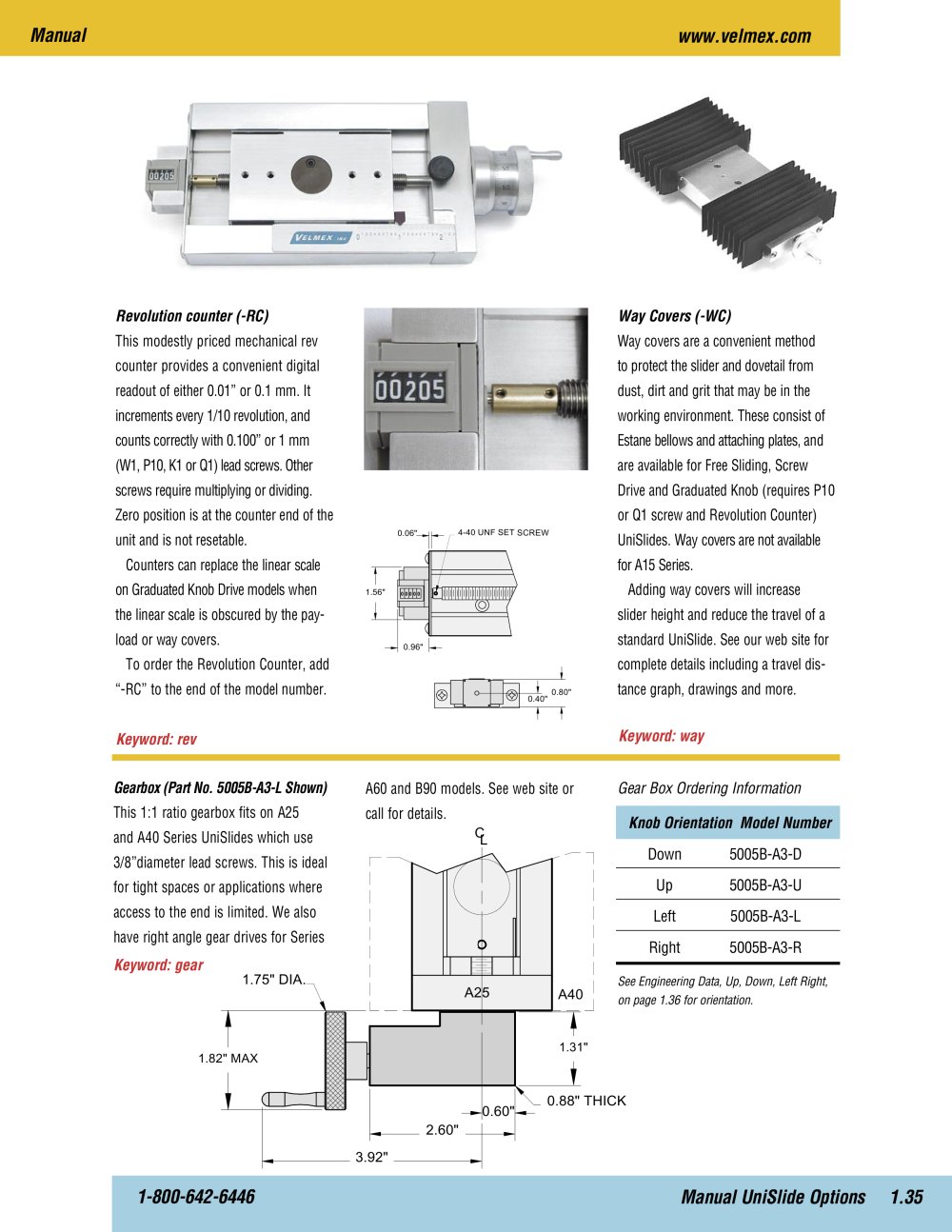

| | | This modestly priced mechanical rev counter provides a convenient digital readout of either 0.01" or 0.1 mm. It increments every 1/10 revolution, and counts correctly with 0.100" or 1 mm (W1.P10, K1 or Q1) lead screws. Other screws require multiplying or dividing. Zero position is at the counter end of the unit and is not resetable. Counters can replace the linear scale on Graduated Knob Drive models when the linear scale is obscured by the pay-load or way covers. To order the Revolution Counter, add "-RC" to the end of the model number. Keyword: rev | | Way Covers (-WC) Way covers are a convenient method to protect the slider and dovetail from dust, dirt and grit that may be in the working environment. These consist of Estane bellows and attaching plates, and are available for Free Sliding, Screw Drive and Graduated Knob (requires P10 or Q1 screw and Revolution Counter) UniSlides. Way covers are not available for A15 Series. Adding way covers will increase slider height and reduce the travel of a standard UniSlide. See our web site for complete details including a travel distance graph, drawings and more. Keyword: way | | |
| | | See Engineering Data, Up, Down, Left Right, on page 1.36 for orientation. | | |
