Manual

www.velmex.com

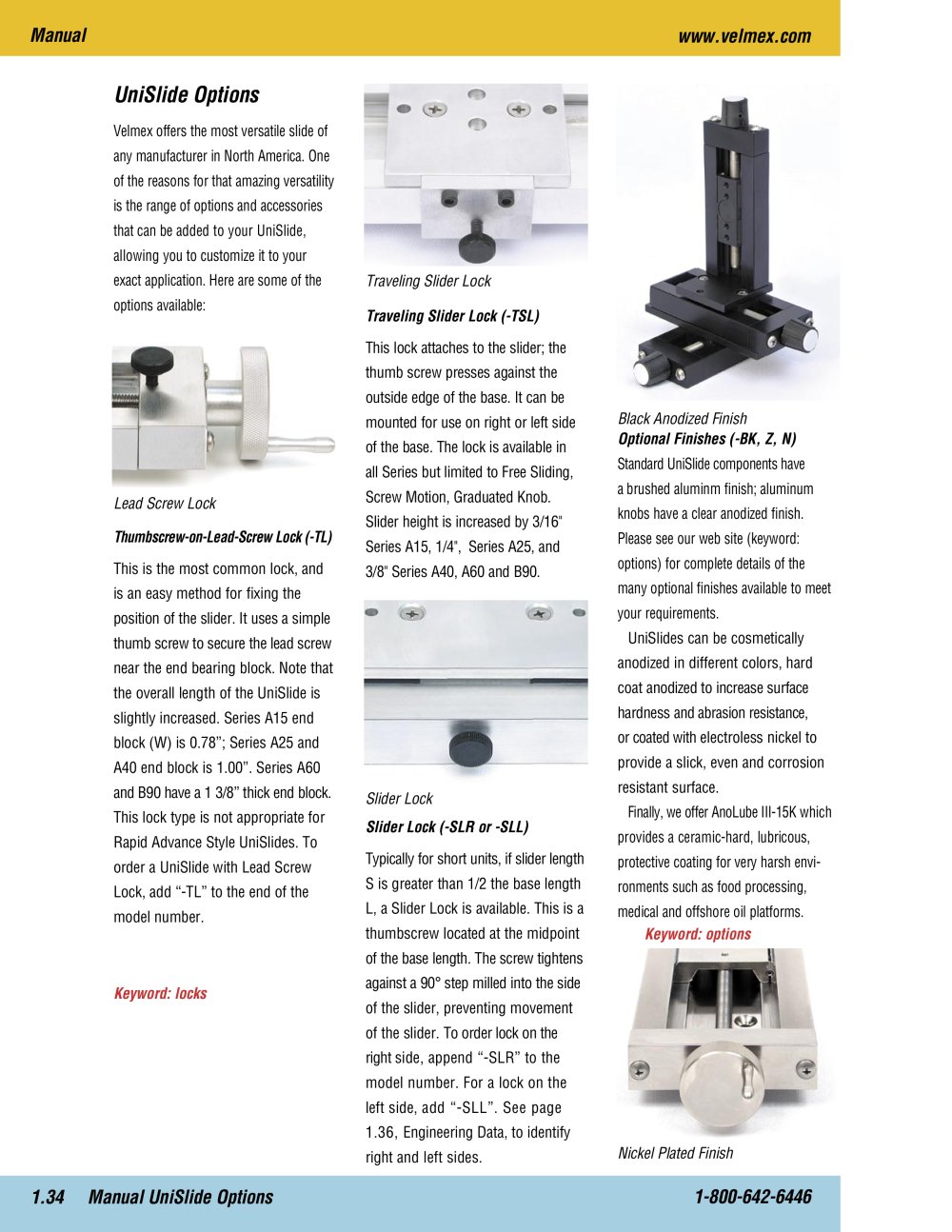

UniSlide Options

Velmex offers the most versatile industrial slide of any manufacturer in North America. One of the reasons for that amazing versatility is the range of options and accessories that can be added to your UniSlide, allowing you to customize It to your exact application. Here are some of the options available:

Traveling Slider Lock

Traveling Slider Lock (-TSL)

This lock attaches to the slider; the thumb screw presses against the outside edge of the base. It can be mounted for use on right or left side of the base. The lock is available in all Series but limited to Free Sliding, Screw Motion, Graduated Knob. Slider height is Increased by 3/16" Series A15,1/4", Series A25, and 3/8" Series A40, A60 and B90.

• «

Black Anodlzed Finish Optional Finishes (-BK, Z, N)

Standard UniSlide components have

a brushed aluminm finish; aluminum

knobs have a clear anodlzed finish.

Please see our web site (keyword:

options) for complete details of the

many optional finishes available to meet

your requirements.

UniSlides can be cosmetically anodized In different colors, hard coat anodlzed to increase surface hardness and abrasion resistance, or coated with electroless nickel to provide a slick, even and corrosion resistant surface.

Finally, we offer AnoLube III-15K which provides a ceramic-hard, lubricous, protective coating for very harsh environments such as food processing, medical and offshore oil platforms.

Lead screw Lock

Thumbscrew-on-Lead-Screw Lock (-TL)

This is the most common lock, and Is an easy method for fixing the position of the slider. It uses a simple thumb screw to secure the lead screw near the end bearing manufacturer block. Note that the overall length of the UniSlide Is slightly Increased. Series A15 end block (W) is 0.78"; Series A25 and A40 end block is 1.00". Series A60 and B90 have a 1 3/8" thick end block. This lock type is not appropriate for Rapid Advance Style UnlSlldes. To order a UniSlide with Lead Screw Lock, add "-TL" to the end of the model number.

Slider Lock

Slider Lock (-SLR or-SLL)

Typically for short units, if slider length S Is greater than 1/2 the base length L, a Slider Lock Is available. This is a thumbscrew located at the midpoint of the base length. The screw tightens against a 90° step milled Into the side of the slider, preventing movement of the slider. To order lock on the right side, append "-SLR" to the model number. For a lock on the left side, add "-SLL". See page 1.36, Engineering Data, to Identify right and left sides.

Keyword: options

Keyword: locks

Nickel Plated Finish

1.34 Manual UniSlide Options

1-800-642-6446
