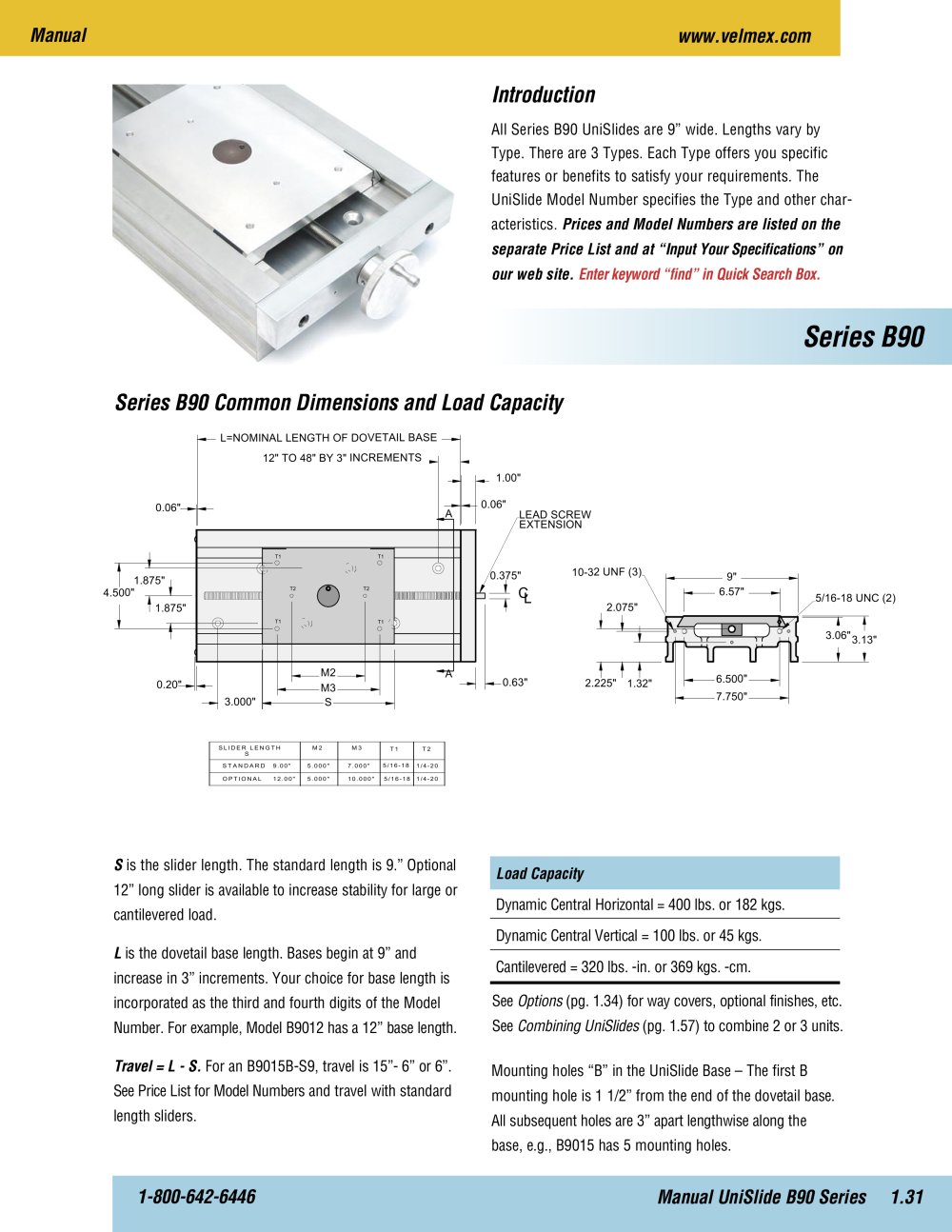

Introduction
All Series B90 UniSlides are 9" wide. Lengths vary by Type. There are 3 Types. Each Type offers you specific features or benefits to satisfy your requirements. The UniSlide Model Number specifies the Type and other char­acteristics. Prices and Model Numbers are listed on the separate Price List and at "Input Your Specifications" on our web site. Enter keyword "find" in Quick Search Box.
Series B90
Series B90 Common Dimensions and Load Capacity
■ L=NOMINAL LENGTH OF DOVETAIL BASE -12" TO 48" BY 3" INCREMENTS
±EAD SCREW ^EXTENSION
10-32 UNF (3).
4.500"
5/16-18 UNC (2)
306"3.13"
rn
2.225" 1.32"
SLIDER LENGTH S
M2
M3
T1
T2
STANDARD 9.00"
5.000"
7.000"
5/16-18
1/4-20
OPTIONAL 12.00"
5.000"
10.000"
5/16-18
1/4-20
S is the slider length. The standard length is 9." Optional 12" long slider is available to increase stability for large or cantilevered load.
L is the dovetail base length. Bases begin at 9" and increase in 3" increments. Your choice for base length is incorporated as the third and fourth digits of the Model Number. For example, Model B9012 has a 12" base length.
Travel = L- S. For an B9015B-S9, travel is 15"- 6" or 6". See Price List for Model Numbers and travel with standard length sliders.
Load Capacity
Dynamic Central Horizontal = 400 lbs. or 182 kgs. Dynamic Central Vertical = 100 lbs. or 45 kgs. Cantilevered = 320 lbs. -in. or 369 kgs. -cm.
See Options (pg. 1.34) for way covers, optional finishes, etc. See Combining UniSlides (pg. 1.57) to combine 2 or 3 units.
Mounting holes "B" in the UniSlide Base - The first B mounting hole is 1 1/2" from the end of the dovetail base. All subsequent holes are 3" apart lengthwise along the base, e.g., B9015 has 5 mounting holes.
Manual UniSlide B90 Series 1.31
1-800-642-6446
