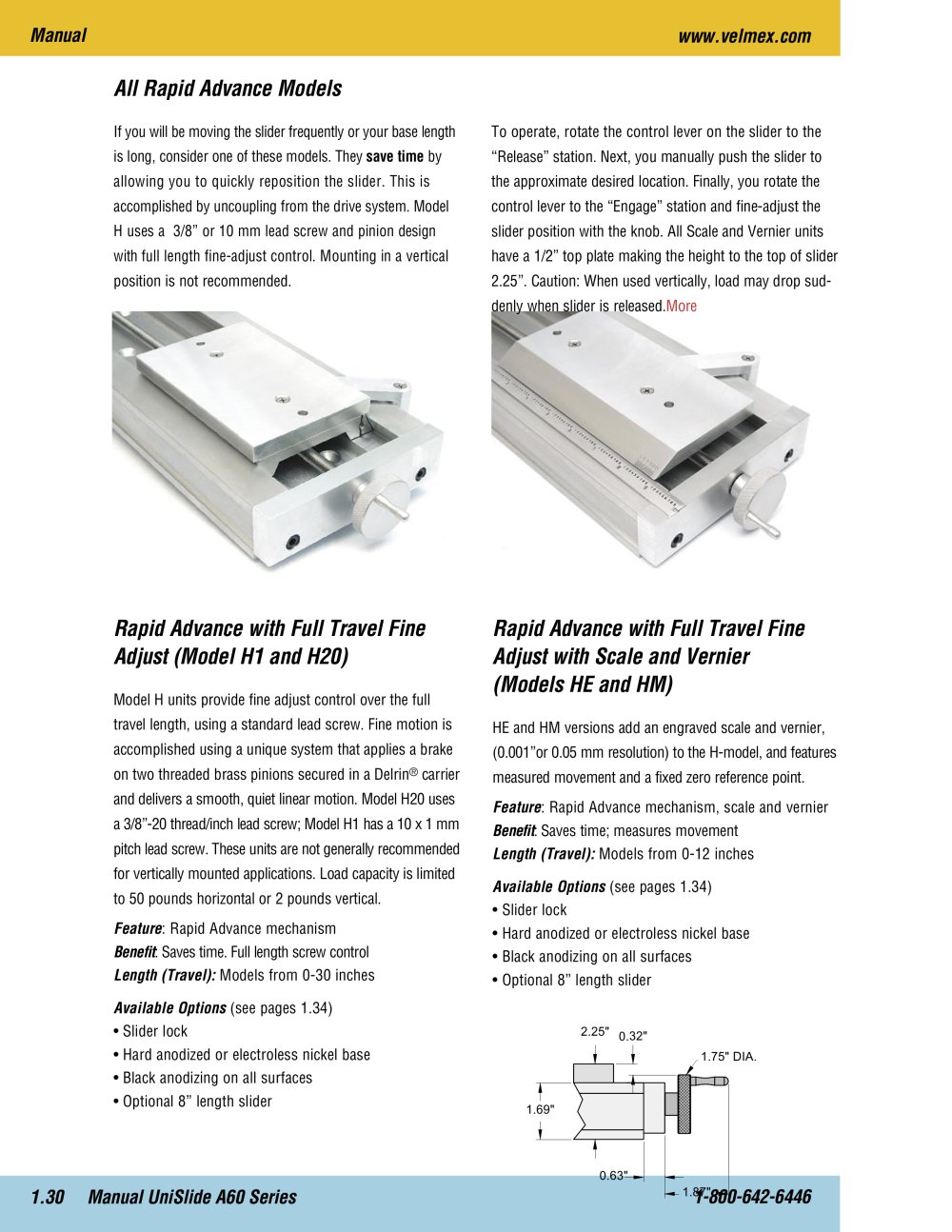

| | | To operate, rotate the control lever on the slider to the "Release" station. Next, you manually push the slider to the approximate desired location. Finally, you rotate the control lever to the "Engage" station and fine-adjust the slider position with the knob. All Scale and Vernier units have a 1/2" top plate making the height to the top of slider 2.25". Caution: When used vertically, load may drop suddenly whenever is released.More | | |
| | | Rapid Advance with Full Travel Fine Adjust (Model H1 and H20) Model H units provide fine adjust control over the full travel length, using a standard lead screw. Fine motion is accomplished using a unique system that applies a brake on two threaded brass pinions secured in a Delrin® carrier and delivers a smooth, quiet linear motion. Model H20 uses a 3/8"-20 thread/inch lead screw; Model H1 has a 10 x 1 mm pitch lead screw. These units are not generally recommended for vertically mounted applications. Load capacity is limited to 50 pounds horizontal or 2 pounds vertical. Feature: Rapid Advance mechanism Benefit. Saves time. Full length screw control Length (Travel): Models from 0-30 inches Available Options (see pages 1.34) • Slider lock • Hard anodized or electroless nickel base • Black anodizing on all surfaces • Optional 8" length slider | | Rapid Advance with Full Travel Fine Adjust with Scale and Vernier (Models HE and HM) HE and HM versions add an engraved scale and vernier, (0.001"or0.05 mm resolution) to the H-model, and features measured movement and a fixed zero reference point. Feature: Rapid Advance mechanism, scale and vernier Benefit. Saves time; measures movement Length (Travel): Models from 0-12 inches Available Options (see pages 1.34) • Slider lock • Hard anodized or electroless nickel base • Black anodizing on all surfaces • Optional 8" length slider | | |
