Manual
www.velmex.com

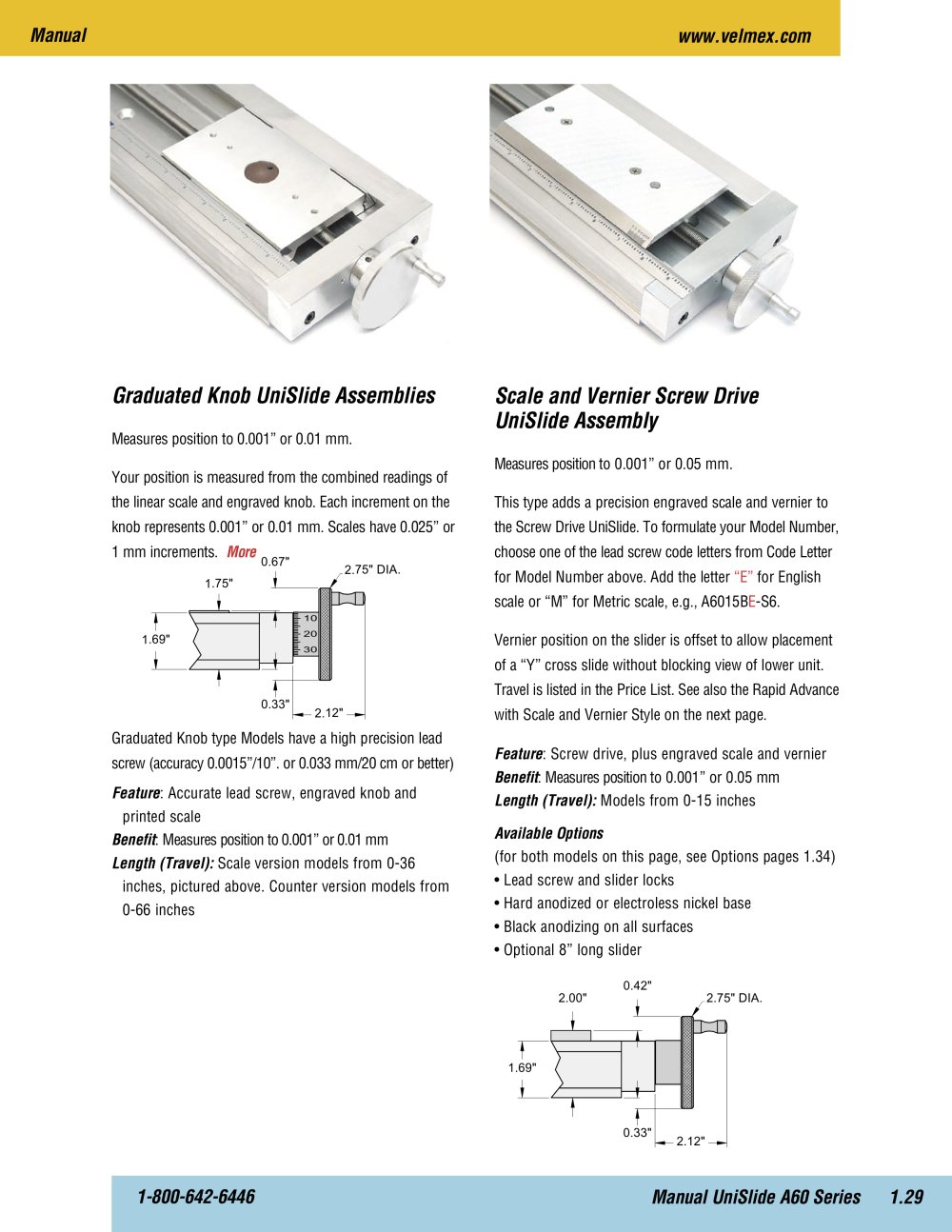

Graduated Knob UniSlide Assemblies
Measures position to 0.001" or 0.01 mm.
Your position is measured from the combined readings of the linear scale and engraved knob. Each increment on the knob represents 0.001" or 0.01 mm. Scales have 0.025" or
Scale and Vernier Screw Drive UniSlide Assembly
Measures position to 0.001" or 0.05 mm.
This type adds a precision engraved scale and vernier to the Screw Drive UniSlide. To formulate your Model Number, choose one of the lead screw code letters from Code Letter for Model Number above. Add the letter "E" for English scale or "M" for Metric scale, e.g., A6015BE-S6.
Vernier position on the slider is offset to allow placement of a "Y" cross slide without blocking view of lower unit. Travel is listed in the Price List. See also the Rapid Advance with Scale and Vernier Style on the next page.
Feature: Screw drive, plus engraved scale and vernier Benefit. Measures position to 0.001" or 0.05 mm Length (Travel): Models from 0-15 inches
Available Options
(for both models on this page, see Options pages 1.34)
• Lead screw and slider locks
• Hard anodized or electroless nickel base
• Black anodizing on all surfaces
• Optional 8" long slider
1 mm increments. More
0.67"
^2.75" DIA.
1.75"
i
tun
1.69"
i
r
0.33"
2.12"
Graduated Knob type Models have a high precision lead screw (accuracy 0.0015710". or 0.033 mm/20 cm or better)
Feature: Accurate lead screw, engraved knob and
printed scale Benefit. Measures position to 0.001" or 0.01 mm Length (Travel): Scale version models from 0-36
inches, pictured above. Counter version models from
0-66 inches
0.42"
i_
2.75" DIA. ECU
2.00" i
r
1.69"
i_
r
0.33"
2.12"
Manual UniSlide A60 Series 1.29
1-800-642-6446
