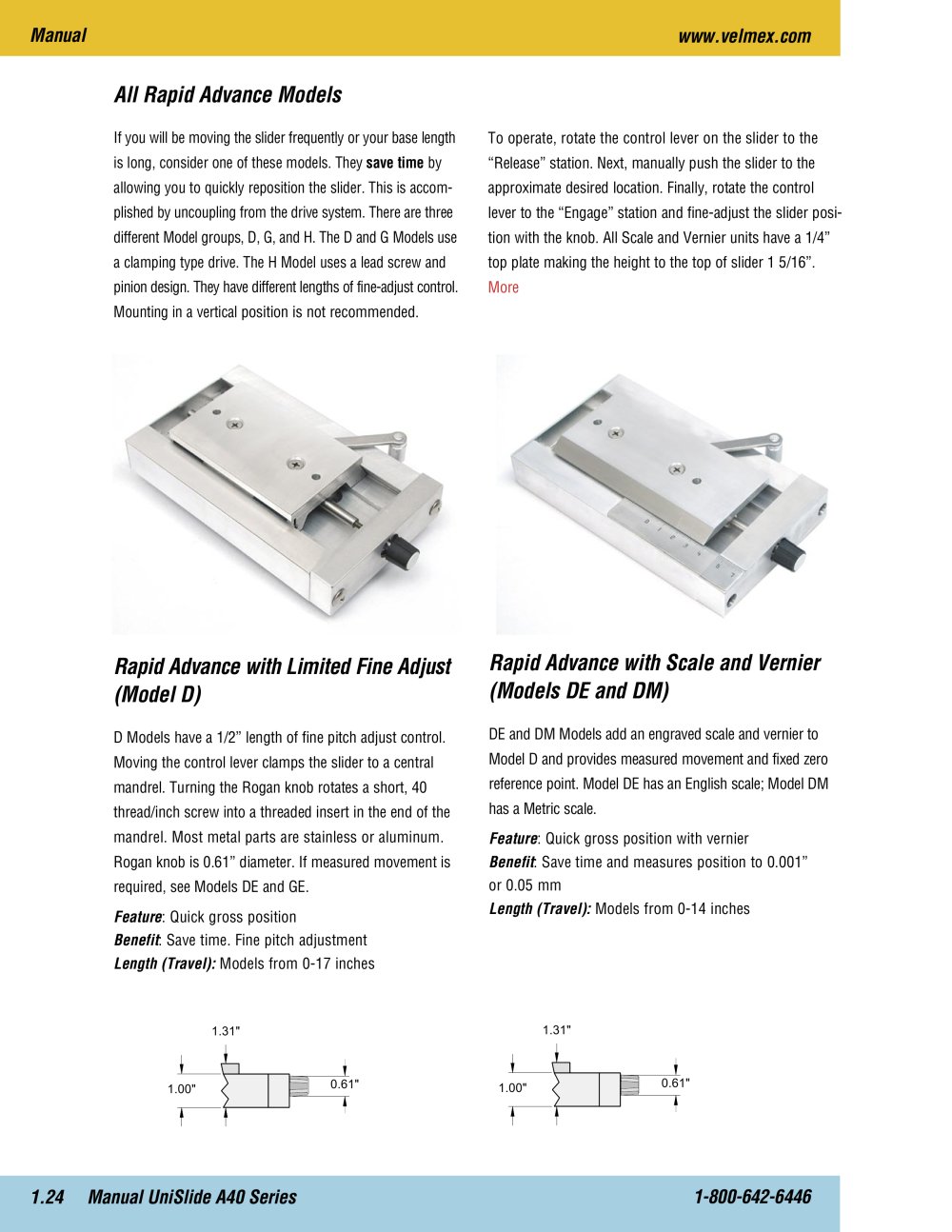

| | | All Rapid Advance Models If you will be moving the slider frequently or your base length Is long, consider one of these models. They save time by allowing you to quickly reposition the slider. This is accomplished by uncoupling from the drive system. There are three different Model groups, D, G, and H. The D and G Models use a clamping type drive. The H Model uses a lead screw and pinion design. They have different lengths of fine-adjust control. Mounting in a vertical position is not recommended. | | |
| | | To operate, rotate the control lever on the slider to the "Release" station. Next, manually push the slider to the approximate desired location. Finally, rotate the control lever to the "Engage" station and fine-adjust the slider position with the knob. All Scale and Vernier units have a 1/4" top plate making the height to the top of slider 1 5/16". More | | |
| | | |
| | | |
| | | Rapid Advance with Scale and Vernier (Models DE and DM) DE and DM Models add an engraved scale and vernier to Model D and provides measured movement and fixed zero reference point. Model DE has an English scale; Model DM has a Metric scale. Feature: Quick gross position with vernier Benefit: Save time and measures position to 0.001" or 0.05 mm Length (Travel): Models from 0-14 inches | | |
| | | Rapid Advance with Limited Fine Adjust (Model D) D Models have a 1/2" length of fine pitch adjust control. Moving the control lever clamps the slider to a central mandrel. Turning the Rogan knob rotates a short, 40 thread/inch screw into a threaded insert in the end of the mandrel. Most metal parts are stainless or aluminum. Rogan knob is 0.61" diameter. If measured movement is required, see Models DE and GE. Feature: Quick gross position Benefit: Save time. Fine pitch adjustment Length (Travel): Models from 0-17 inches | | |
| | | |
| | | |
| | | 1.31" | | |
| | | 1.31" | | |
| | | |
| | | |
| | | 0.61" | | |
| | | 0.61" | | |
| | | 1.00" | | |
| | | 1.00" | | |
| | | |
| | | |
| | | |
| | | |
| | | 1.24 Manual UnlSllde A40 Series | | |
