| | | Introduction All Series A40 UniSlides are 4" wide. Lengths vary by Type. There are 8 Types. Each Type offers you specific features or benefits to satisfy your requirements. The UniSlide Model Number specifies the Type and other characteristics. Prices and Model Numbers are listed on the separate Price List and at "Input Your Specifications" on our web site. Enter keyword "find" in Quick Search Box. | | |
| | | |
| | | Series A40 | | |
| | | |

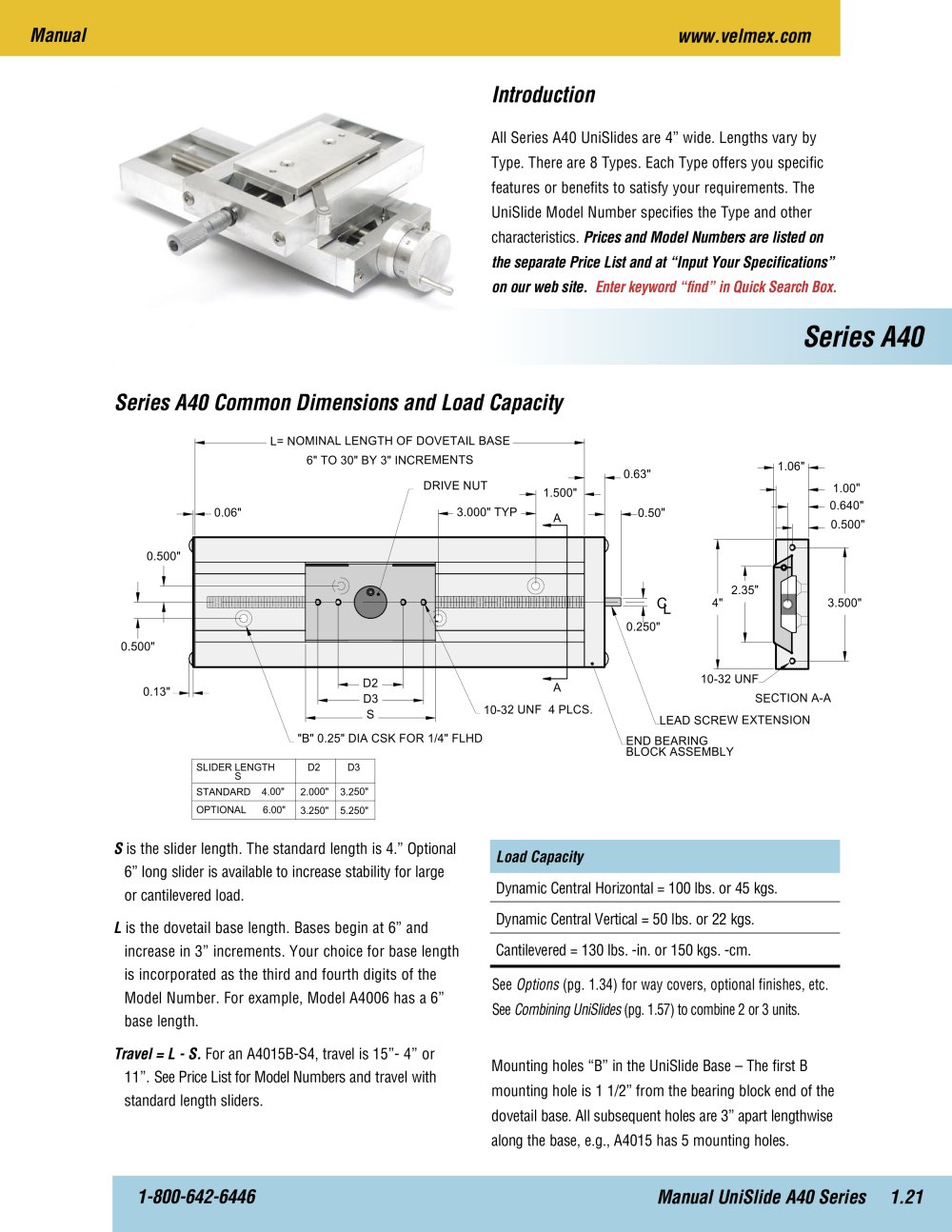

| | | Series A40 Common Dimensions and Load Capacity | | |
| | | |
| | | - l= nominal length of dovetail base-6" to 30" by 3" increments | | |
| | | 1.06" | | |
| | | |
| | | -0.63" | | |
| | | |
| | | |
| | | 1.00" u- 0.640" L_ 0.500" | | |
| | | |
| | | M | | |
| | | |
| | | 2.35" | | |
| | | |
| | | 3.500" | | |
| | | 4" | | |
| | | |
| | | T 0.500" | | |
| | | |
| | | 10-32 unf-/ | | |
| | | |
| | | . "b" 0.25" dia csk for 1/4" flhd | | |
| | | | | |
| | | |
| | | |
| | | | | | | | | | | SLIDER LENGTH S | D2 | D3 | | | | STANDARD 4.00" | 2.000" | 3.250" | | | | OPTIONAL 6.00" | 3.250" | 5.250" | | | | | | | | | | |
| | | |
| | | S is the slider length. The standard length is 4." Optional 6" long slider is available to increase stability for large or cantilevered load. L is the dovetail base length. Bases begin at 6" and increase in 3" increments. Your choice for base length is incorporated as the third and fourth digits of the Model Number. For example, Model A4006 has a 6" base length. Travel = L- S. For an A4015B-S4, travel is 15"- 4" or 11". See Price List for Model Numbers and travel with standard length sliders. | | |
| | | Load Capacity Dynamic Central Horizontal = 100 lbs. or 45 kgs. Dynamic Central Vertical = 50 lbs. or 22 kgs. Cantilevered = 130 lbs. -in. or 150 kgs. -cm. See Options (pg. 1.34) for way covers, optional finishes, etc. See Combining UniSlides (pg. 1.57) to combine 2 or 3 units. Mounting holes "B" in the UniSlide Base - The first B mounting hole is 1 1/2" from the bearing block end of the dovetail base. All subsequent holes are 3" apart lengthwise along the base, e.g., A4015 has 5 mounting holes. | | |
| | | |
| | | |
