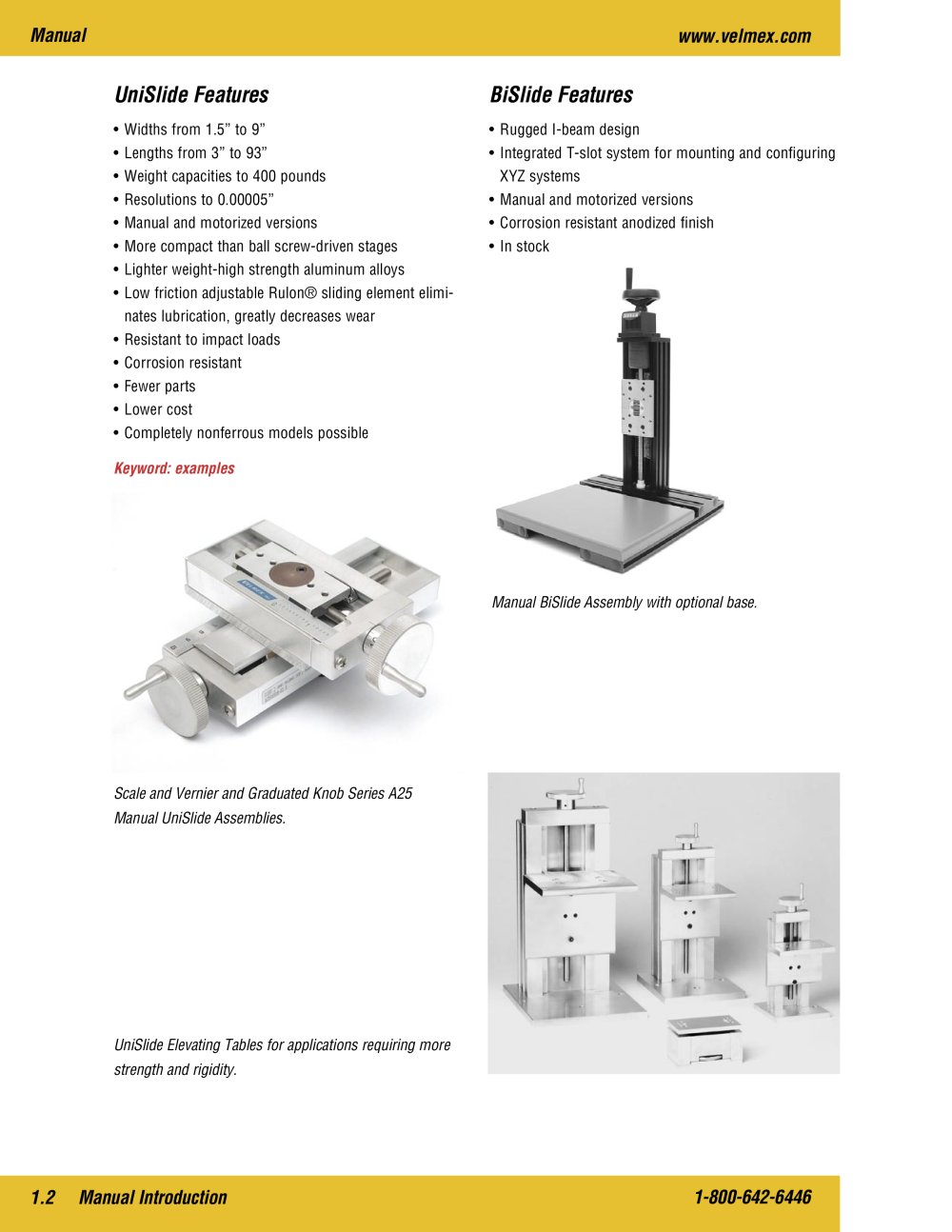

Manual
www.velmex.com
UniSlide Features
• Widths from 1.5" to 9"
• Lengths from 3" to 93"
• Weight capacities to 400 pounds
• Resolutions to 0.00005"
• Manual and motorized versions
• More compact than ball screw-driven stages
• Lighter weight-high strength aluminum alloys
• Low friction adjustable Rulon® sliding element elimi­nates lubrication, greatly decreases wear
• Resistant to impact loads
• Corrosion resistant
• Fewer parts
• Lower cost
• Completely nonferrous models possible Keyword: examples
BiSlide Features
• Rugged I-beam design
• Integrated T-slot system for mounting and configuring XYZ systems
• Manual and motorized versions
• Corrosion resistant anodized finish
• In stock
Manual BiSlide Assembly with optional base.
Scale and Vernier and Graduated Knob Series A25 Manual UniSlide Assemblies.
UniSlide Elevating Tables for applications requiring more strength and rigidity.
1.2 Manual Introduction
1-800-642-6446
