| Manual | ||||||||||||||||||||||||||||||||||||||
| www.velmex.com | ||||||||||||||||||||||||||||||||||||||

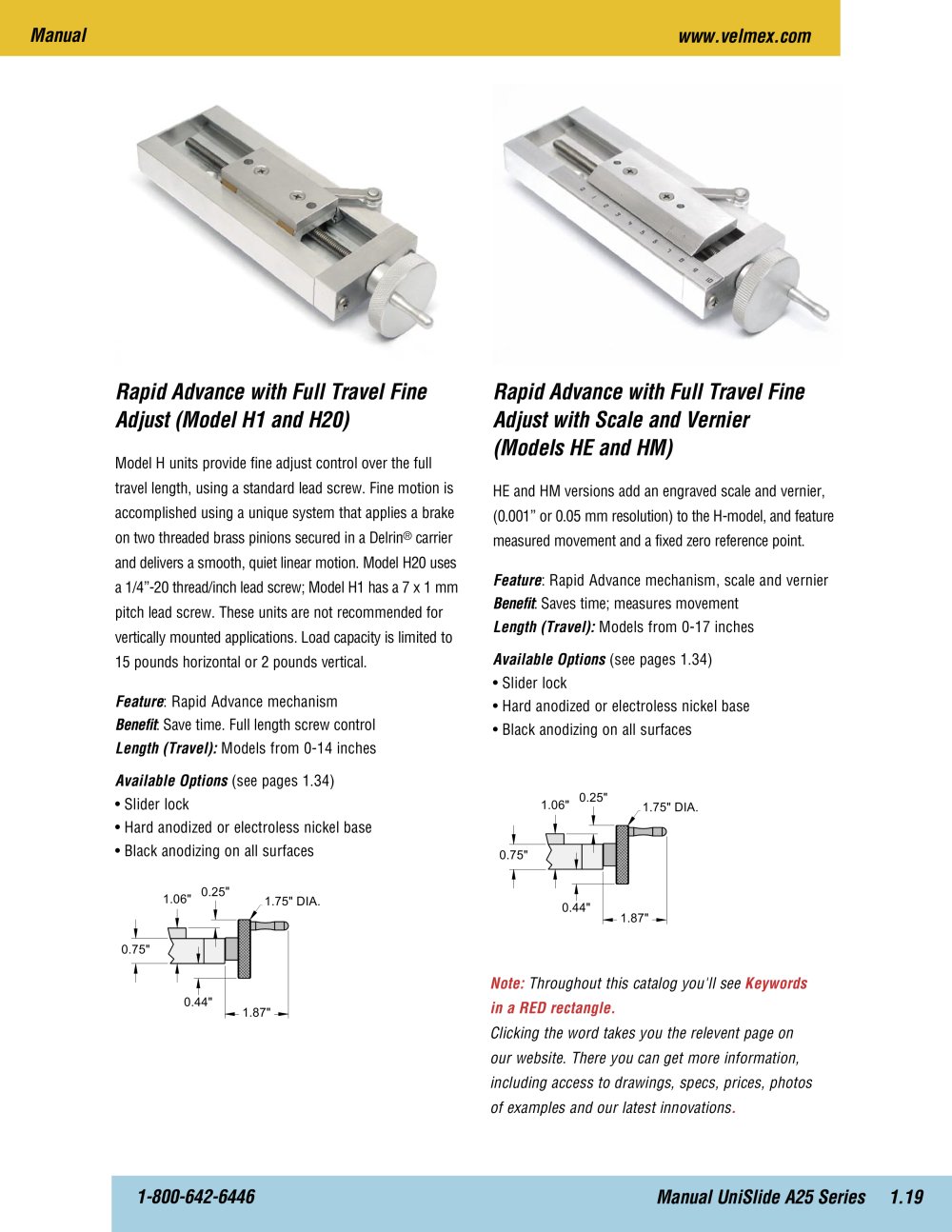

| Rapid Advance with Full Travel Fine Adjust (Model H1 and H20) Model H units provide fine adjust control over the full travel length, using a standard lead screw. Fine motion Is accomplished using a unique system that applies a brake on two threaded brass pinions secured In a Delrln® carrier and delivers a smooth, quiet linear motion. Model H20 uses a 1/4"-20 thread/Inch lead screw; Model H1 has a 7 x 1 mm pitch lead screw. These units are not recommended for vertically mounted applications. Load capacity Is limited to 15 pounds horizontal or 2 pounds vertical. Feature: Rapid Advance mechanism Benefit. Save time. Full length screw control Length (Travel): Models from 0-14 Inches Available Options (see pages 1.34) • Slider lock • Hard anodlzed or electroless nickel base • Black anodizing on all surfaces | Rapid Advance with Full Travel Fine Adjust with Scale and Vernier (Models HE and HM) HE and HM versions add an engraved scale and vernier, (0.001" or 0.05 mm resolution) to the H-model, and feature measured movement and a fixed zero reference point. Feature: Rapid Advance mechanism, scale and vernier Benefit. Saves time; measures movement Length (Travel): Models from 0-17 Inches Available Options (see pages 1.34) • Slider lock • Hard anodlzed or electroless nickel base • Black anodizing on all surfaces | |||||||||||||||||||||||||||||||||||||
| 0.25" | ||||||||||||||||||||||||||||||||||||||
| 1.06" | ||||||||||||||||||||||||||||||||||||||
| ,1.75" dia. | ||||||||||||||||||||||||||||||||||||||
| y | ||||||||||||||||||||||||||||||||||||||
| 0.75" | ||||||||||||||||||||||||||||||||||||||
| 1.06" 025" 0.75" / 1 | ||||||||||||||||||||||||||||||||||||||
| 1.75" dia. | ||||||||||||||||||||||||||||||||||||||
| 0.44" | ||||||||||||||||||||||||||||||||||||||
| U-1.87" | ||||||||||||||||||||||||||||||||||||||
| Note: Throughout this catalog you'll see Keywords in a RED rectangle. Clicking the word takes you the relèvent page on our website. There you can get more information, including access to drawings, specs, prices, photos of examples and our latest Innovations. | ||||||||||||||||||||||||||||||||||||||
| 0.44" | ||||||||||||||||||||||||||||||||||||||
| u-1.87"-j | ||||||||||||||||||||||||||||||||||||||
| Manual UnlSllde A25 Series 1.19 | ||||||||||||||||||||||||||||||||||||||
| 1-800-642-6446 | ||||||||||||||||||||||||||||||||||||||
