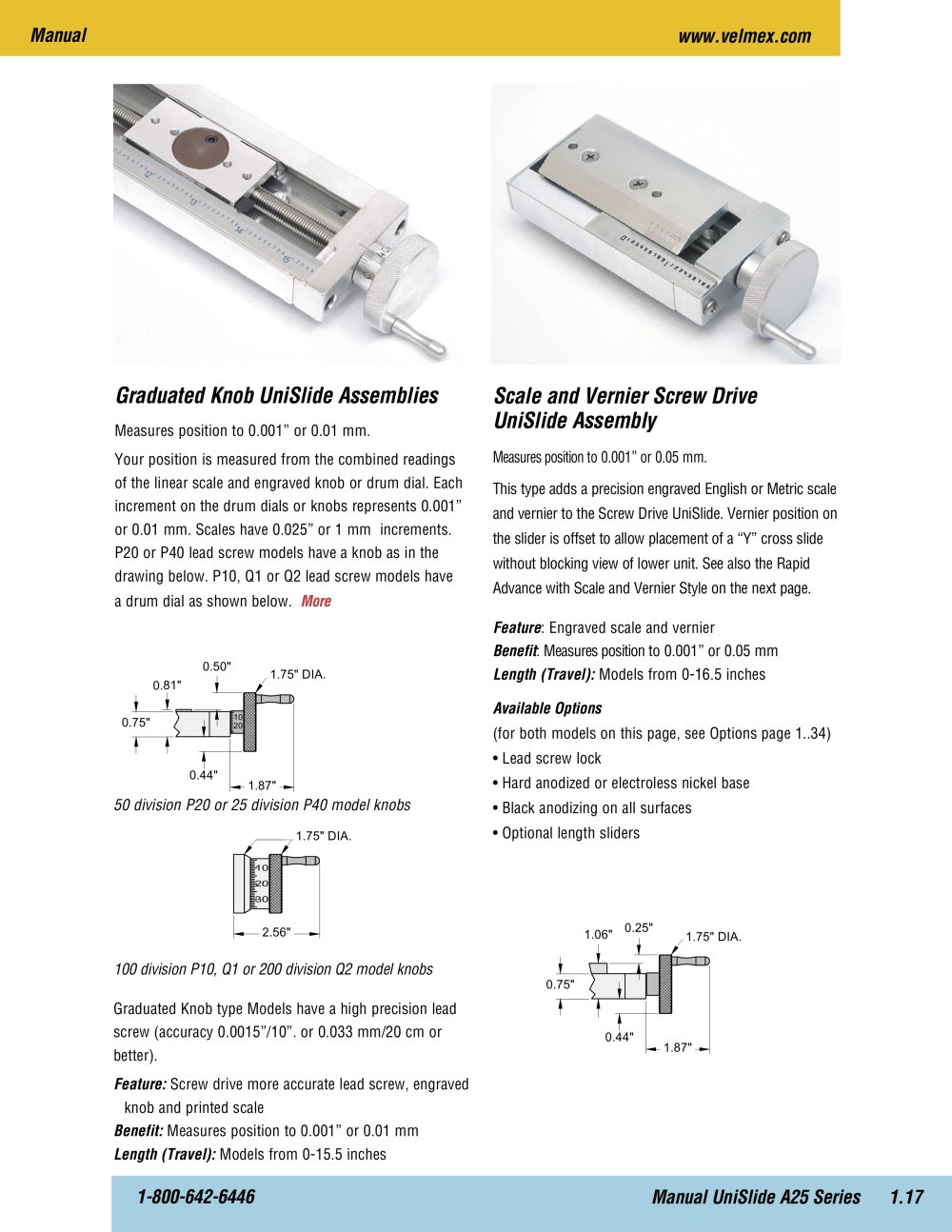

| | | Graduated Knob UniSlide Assemblies Measures position to 0.001" or 0.01 mm. Your position is measured from the combined readings of the linear scale and engraved knob or drum dial. Each increment on the drum dials or knobs represents 0.001" or 0.01 mm. Scales have 0.025" or 1 mm increments. P20 or P40 lead screw models have a knob as in the drawing below. P10, Q1 or Q2 lead screw models have a drum dial as shown below. More | | Scale and Vernier Screw Drive UniSlide Assembly Measures position to 0.001" or 0.05 mm. This type adds a precision engraved English or Metric scale and vernier to the Screw Drive UniSlide. Vernier position on the slider is offset to allow placement of a "Y" cross industrial slide without blocking view of lower unit. See also the Rapid Advance with Scale and Vernier Style on the next page. Feature: Engraved scale and vernier Benefit. Measures position to 0.001" or 0.05 mm Length (Travel): Models from 0-16.5 inches Available Options (for both models on this page, see Options page 1..34) • Lead screw lock • Hard anodized or electroless nickel base • Black anodizing on all surfaces • Optional length sliders | | |
| | | — 2.56" — 100 division P10, Q1 or 200 division Q2 model knobs Graduated Knob type Models have a high precision lead screw (accuracy 0.0015710". or 0.033 mm/20 cm or better). Feature: Screw drive more accurate lead screw, engraved knob and printed scale Benefit: Measures position to 0.001" or 0.01 mm Length (Travel): Models from 0-15.5 inches | | |
