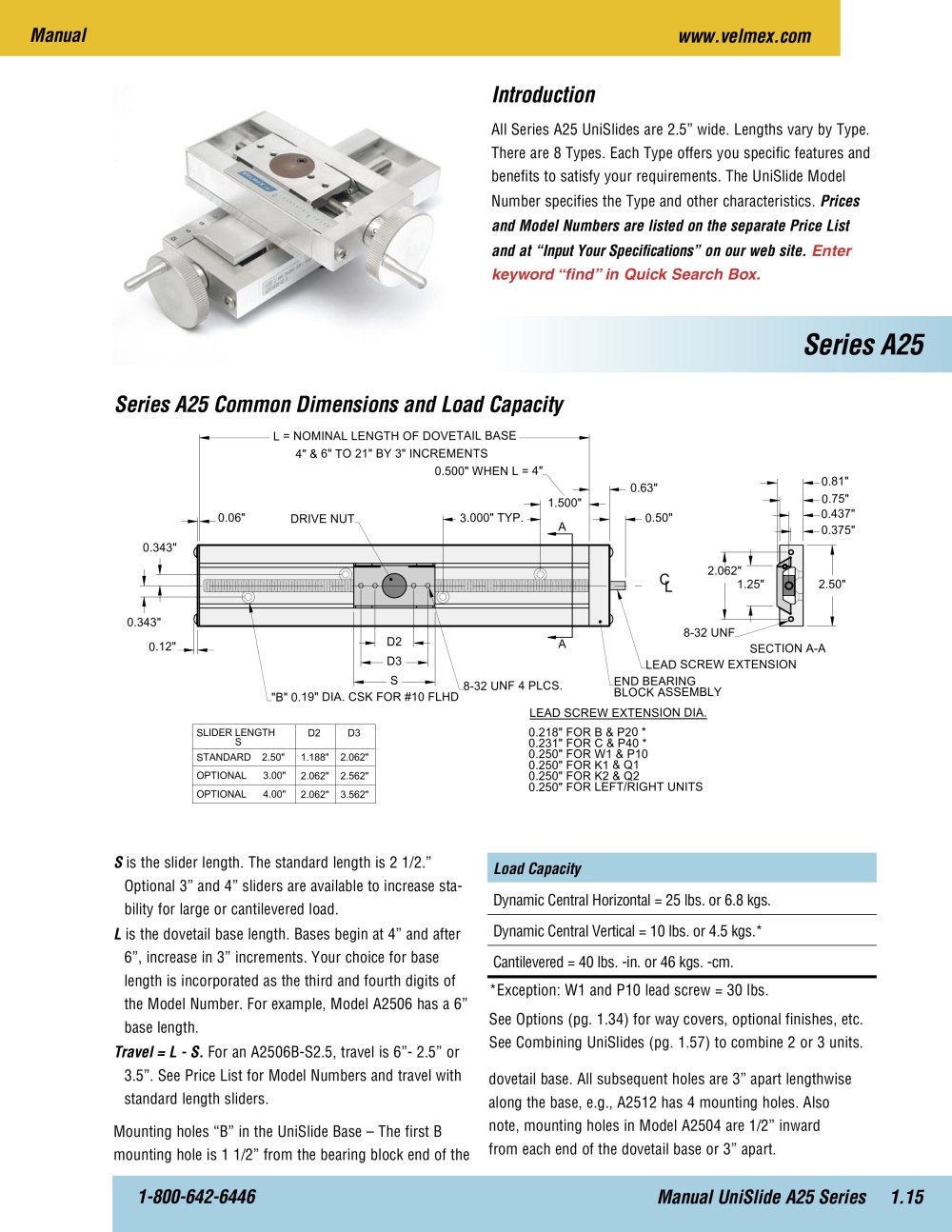

Manual
www.velmex.com
Introduction
All Series A25 UniSlides are 2.5" wide. Lengths vary by Type. There are 8 Types. Each Type offers you specific features and benefits to satisfy your requirements. The UniSlide Model Number specifies the Type and other characteristics. Prices and Model Numbers are listed on the separate Price List and at "Input Your Specifications" on our web site. Enter keyword "find" in Quick Search Box.
Series A25
Series A25 Common Dimensions and Load Capacity
- l = nominal length of dovetail base — 4" & 6" to 21" by 3" increments
0.500" when l = 4"
-0.81" -0.75" U-0.437" L-0.375"
h- 0.63" -0.50"
0.343" I
2.0^2"
1.25"
2.50"
T
0.343"
8-32 unf_
section
lead screw extension
Lend bearing manufacturer block assembly
a-a
8-32 unf 4 plcs.
L"b" 0.19" dia. csk for #10 flhd
lead screw extension dia.
0.218" for b & p20 *
0.231" for c & p40 *
0.250" for w1 & p10
0.250" for k1 &q1
0.250" for k2 & q2
0.250" for left/right units
SLIDER LENGTH S
D2
D3
STANDARD 2.50"
1.188"
2.062"
OPTIONAL 3.00"
2.062"
2.562"
OPTIONAL 4.00"
2.062"
3.562"
S is the slider length. The standard length is 2 1/2." Optional 3" and 4" sliders are available to increase sta­bility for large or cantilevered load.
L is the dovetail base length. Bases begin at 4" and after 6", increase in 3" increments. Your choice for base length is incorporated as the third and fourth digits of the Model Number. For example, Model A2506 has a 6" base length.
Travel = L-S. For an A2506B-S2.5, travel is 6"- 2.5" or 3.5". See Price List for Model Numbers and travel with standard length sliders.
Mounting holes "B" in the UniSlide Base - The first B mounting hole is 1 1/2" from the bearing block end of the
Load Capacity
Dynamic Central Horizontal = 25 lbs. or 6.8 kgs.
Dynamic Central Vertical = 10 lbs. or 4.5 kgs.*
Cantilevered = 40 lbs. -in. or 46 kgs. -cm.
*Exception: W1 and P10 lead screw = 30 lbs.
See Options (pg. 1.34) for way covers, optional finishes, etc. See Combining UniSlides (pg. 1.57) to combine 2 or 3 units.
dovetail base. All subsequent holes are 3" apart lengthwise along the base, e.g., A2512 has 4 mounting holes. Also note, mounting holes in Model A2504 are 1/2" inward from each end of the dovetail base or 3" apart.
Manual UniSlide A25 Series 1.15
1-800-642-6446
