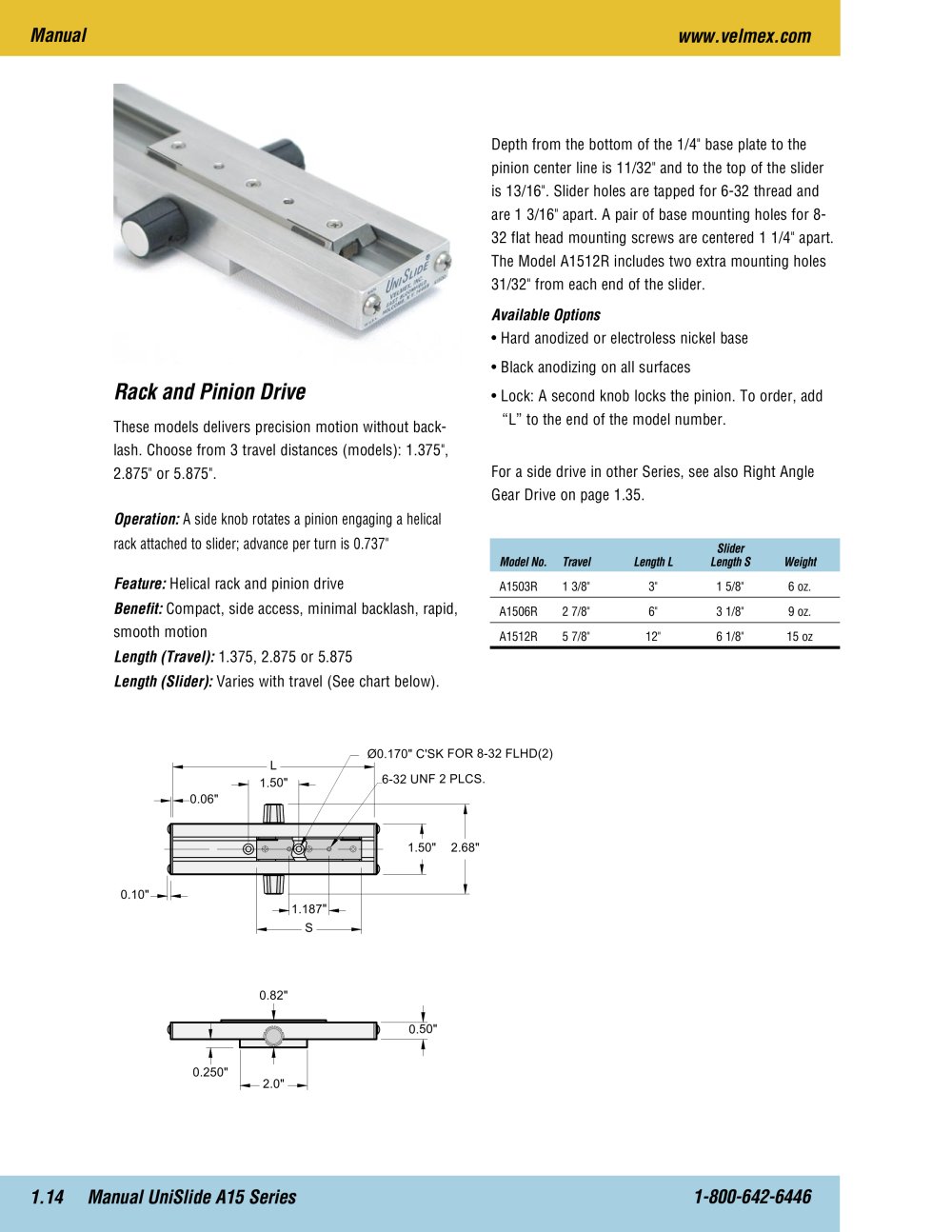

Manual

www.velmex.com

Depth from the bottom of the 1/4" base plate to the pinion center line is 11/32" and to the top of the slider is 13/16". Slider holes are tapped for 6-32 thread and are 1 3/16" apart. A pair of base mounting holes for 832 flat head mounting screws are centered 1 1/4" apart. The Model A1512R includes two extra mounting holes 31/32" from each end of the slider.

Available Options

• Hard anodized or electroless nickel base

• Black anodizing on all surfaces

• Lock: A second knob locks the pinion. To order, add "L" to the end of the model number.

For a side drive in other Series, see also Right Angle Gear Drive on page 1.35.

Rack and pinion Drive

These models delivers precision motion without backlash. Choose from 3 travel distances (models): 1.375", 2.875" or 5.875".

Operation: A side knob rotates a pinion engaging a helical rack attached to slider; advance per turn is 0.737"

Feature: Helical rack and pinion drive

Benefit: Compact, side access, minimal backlash, rapid,

smooth motion

Length (Travel): 1.375, 2.875 or 5.875

Length (Slider): Varies with travel (See chart below).


Model No.	Travel	Length L	Slider Lengths	Weight
A1503R	1 3/8"	3"	1 5/8"	6 oz.
A1506R	2 7/8"	6"	3 1/8"	9 oz.
A1512R	5 7/8"	12"	6 1/8"	15 oz

0.82"

1.14 Manual UnlSllde A15 Series

1-800-642-6446
